Battle Born Elite 230W 12V Rigid Solar Panel

Battle Born Elite 230W 12V Rigid Solar Panel

Extra $200 OFF Orders of $1,999+
Extra $300 OFF Orders of $2,999+

Original price was: $249.00.Current price is: $229.99.

-

BBPV-12-230

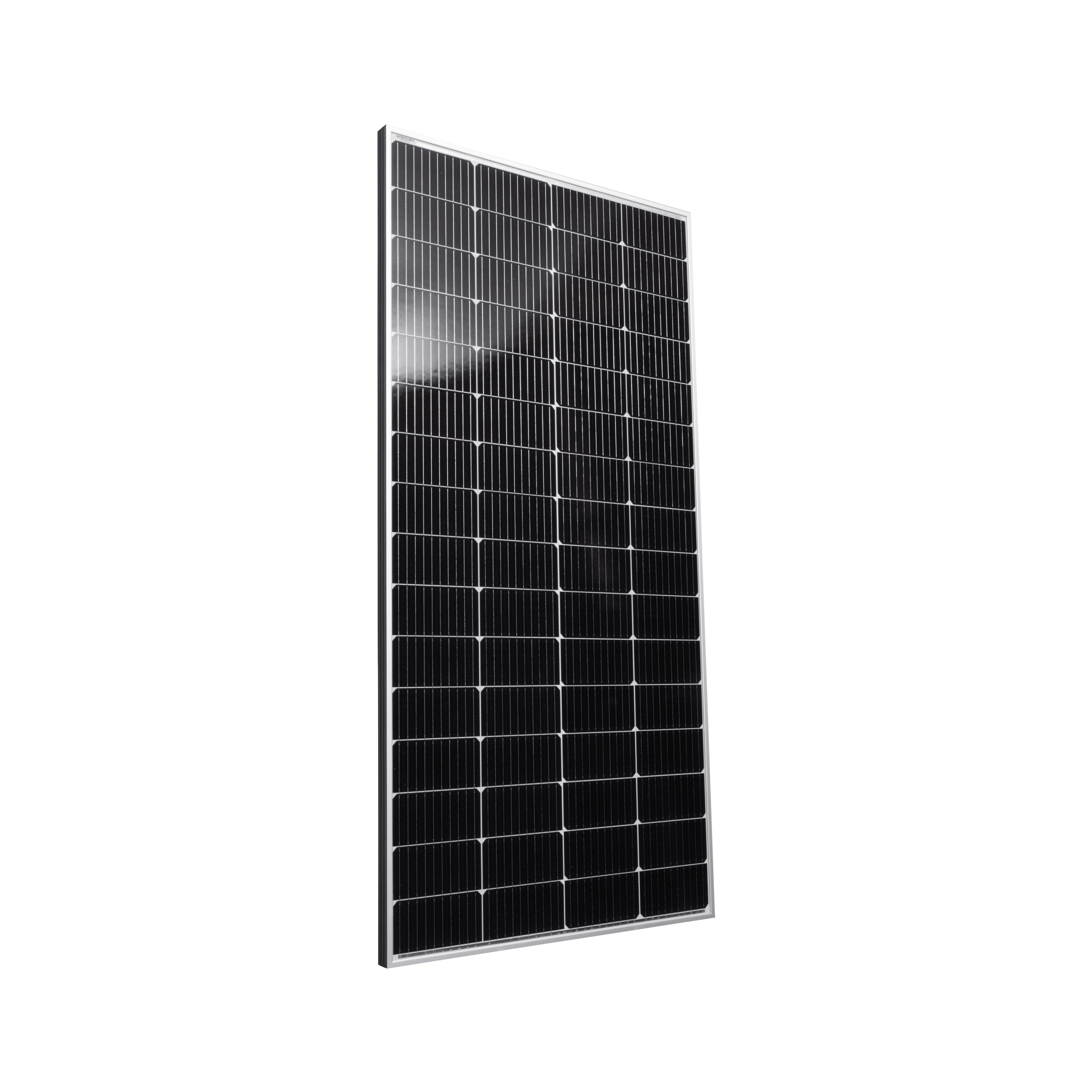

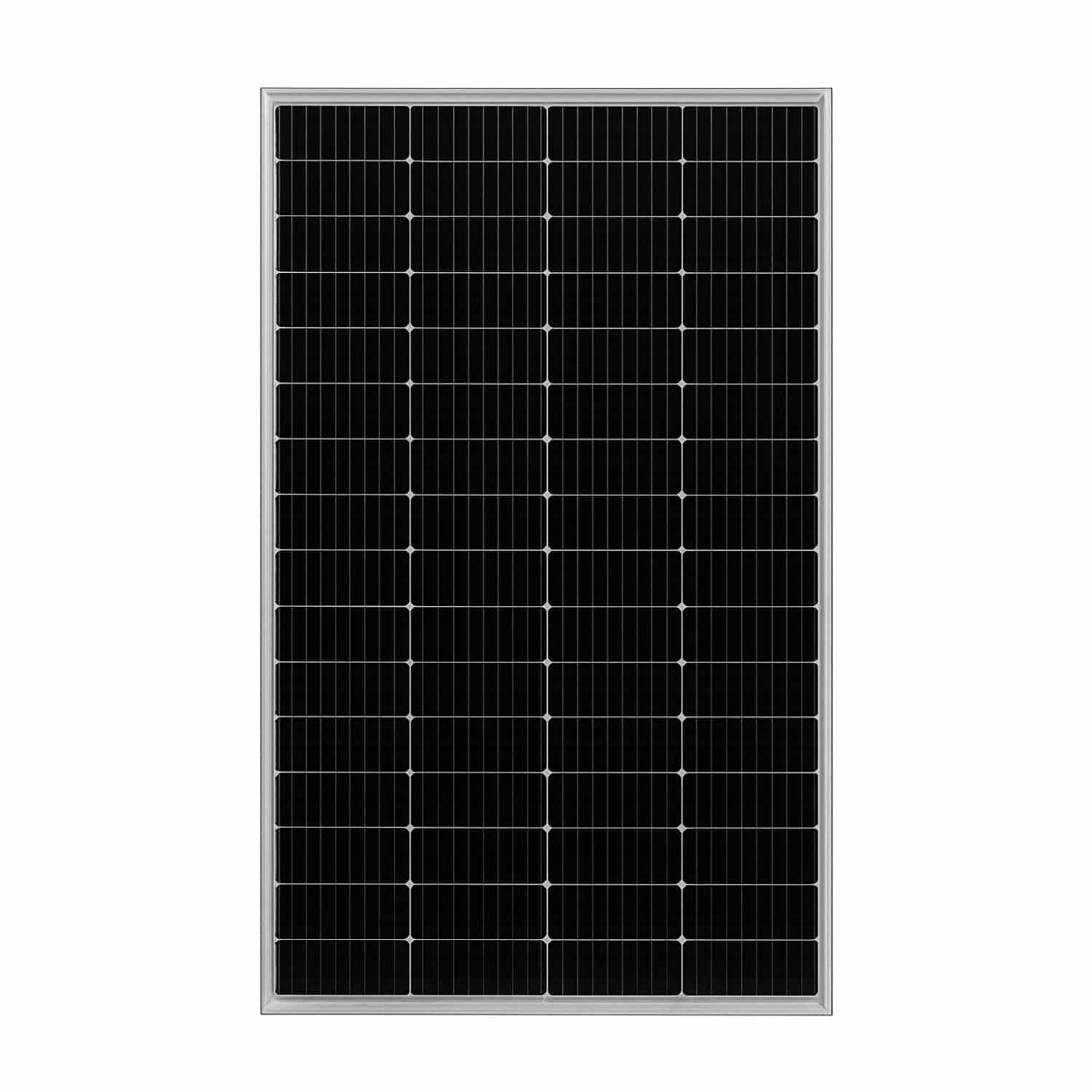

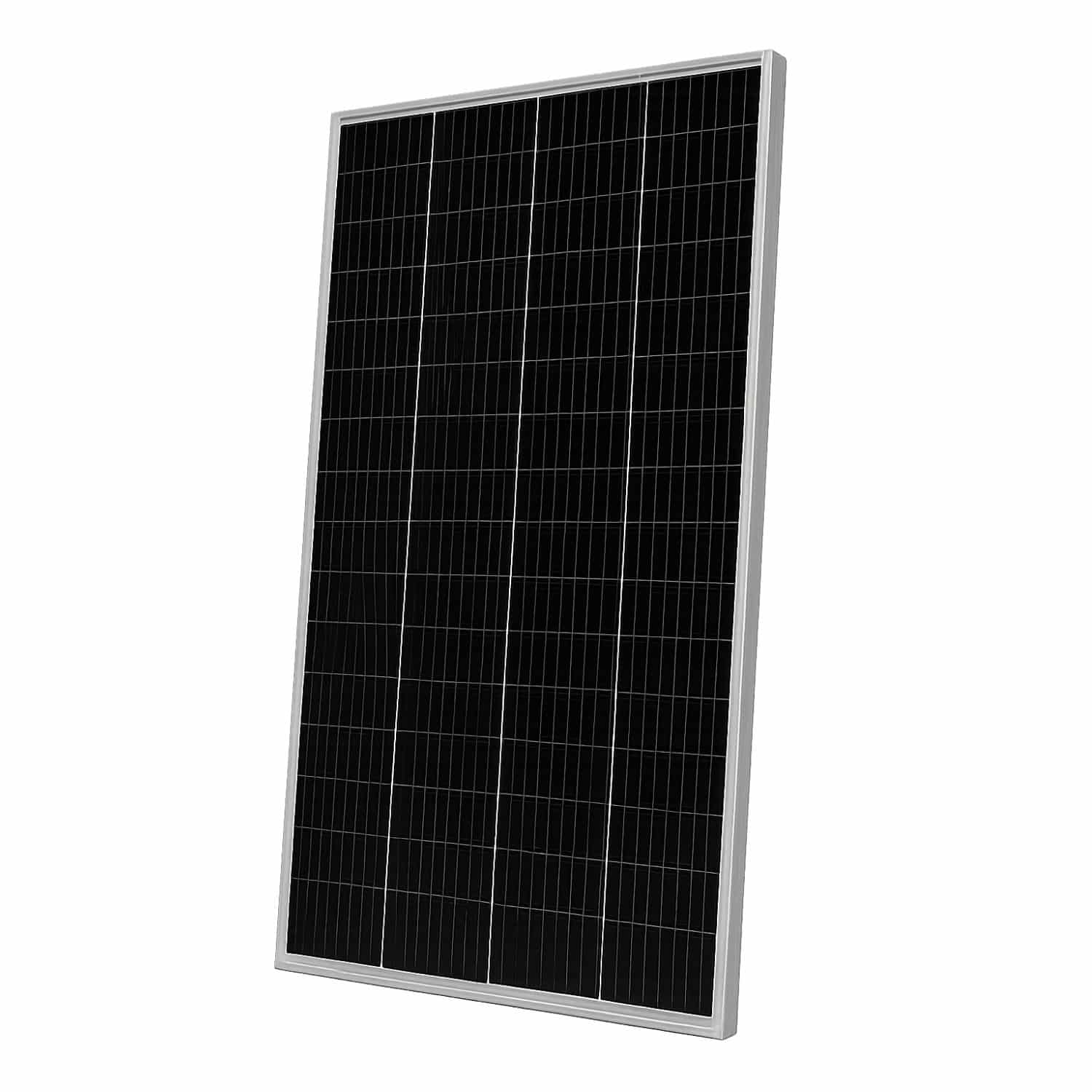

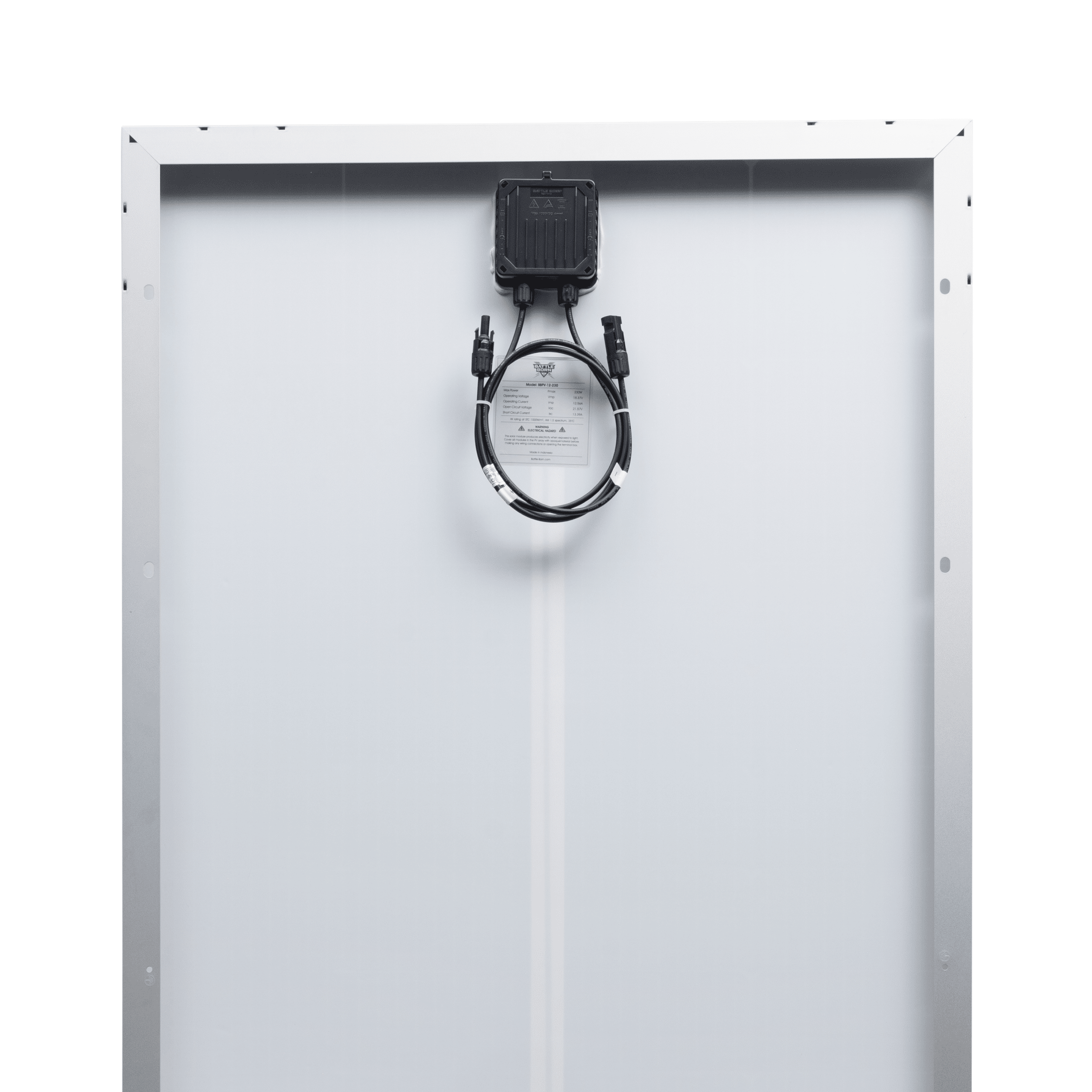

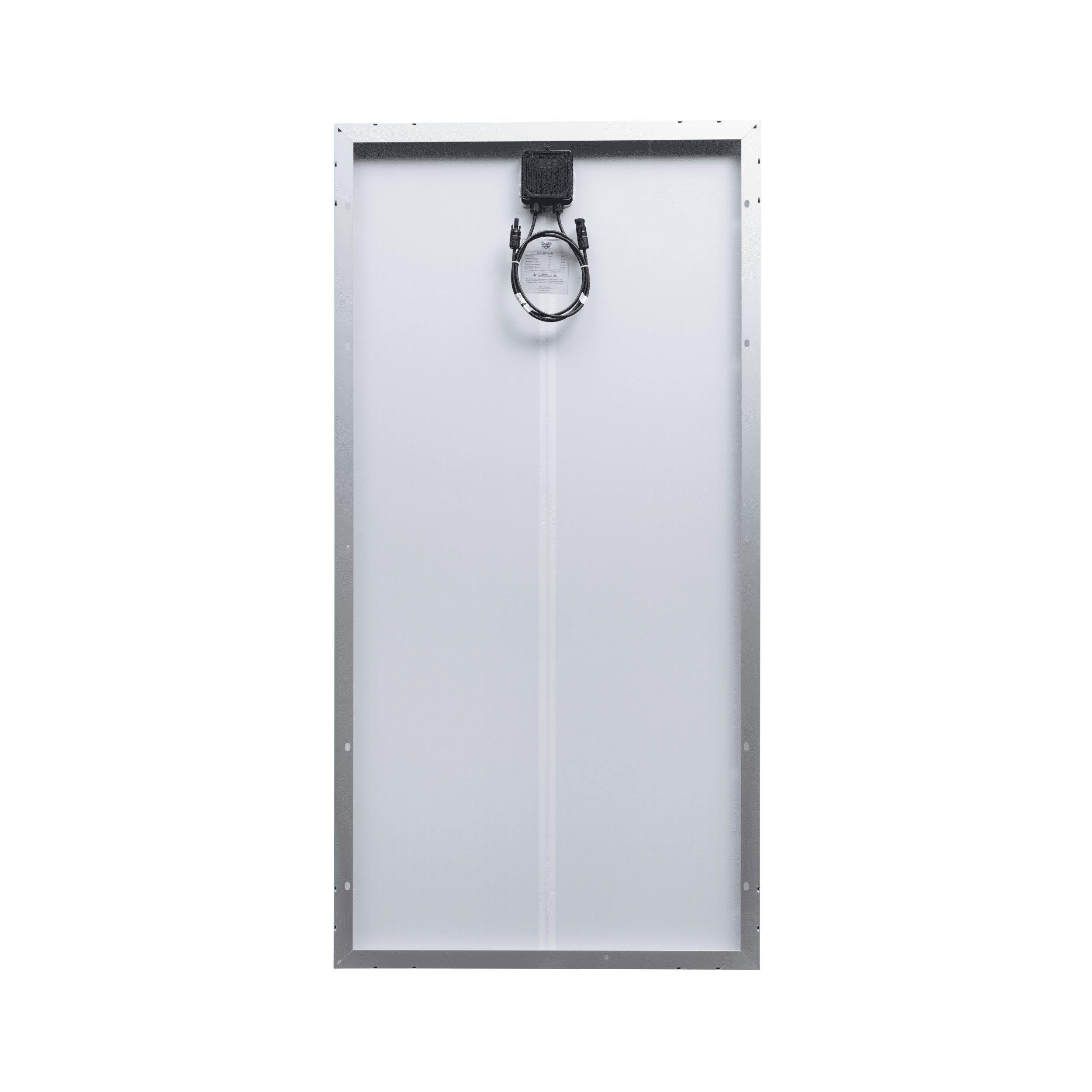

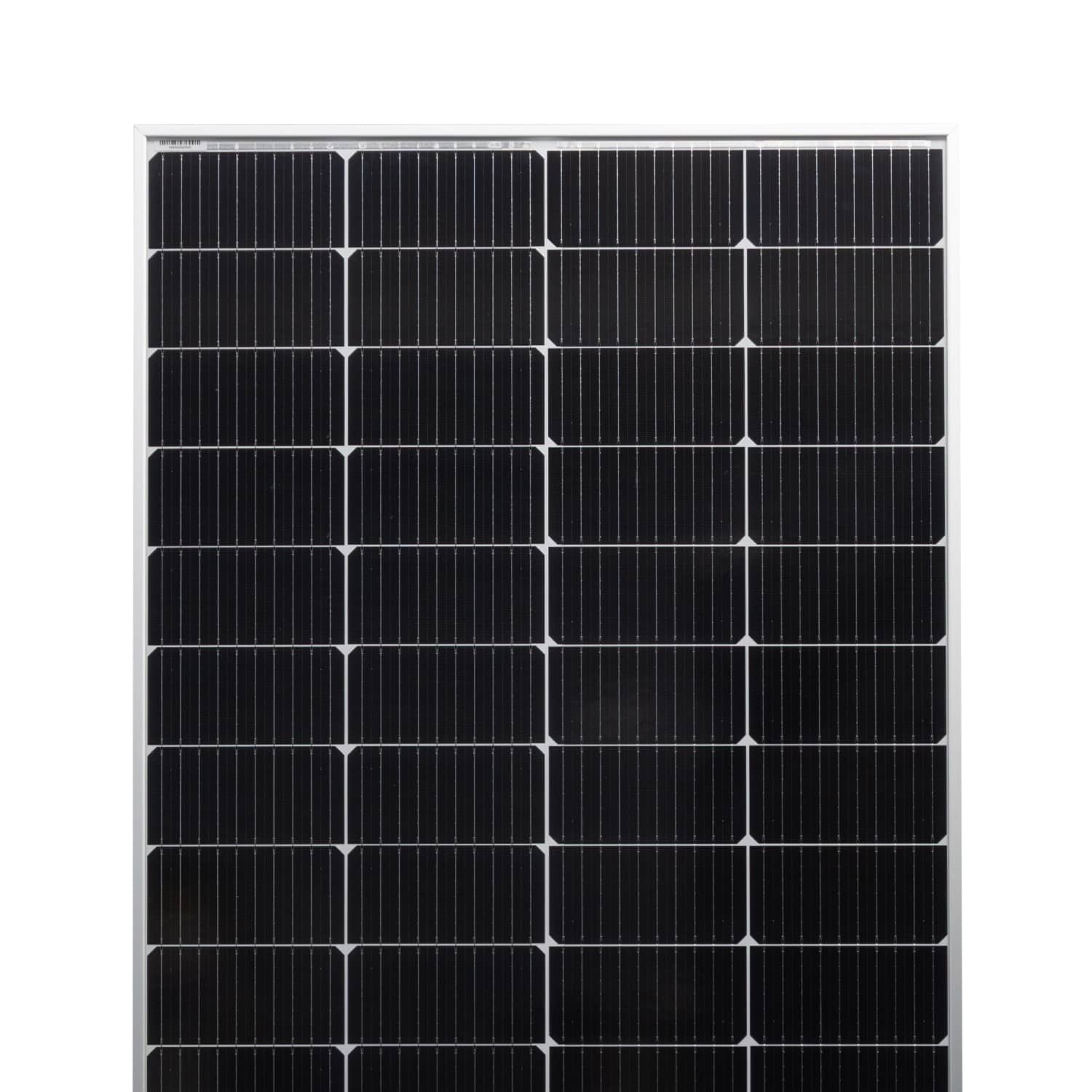

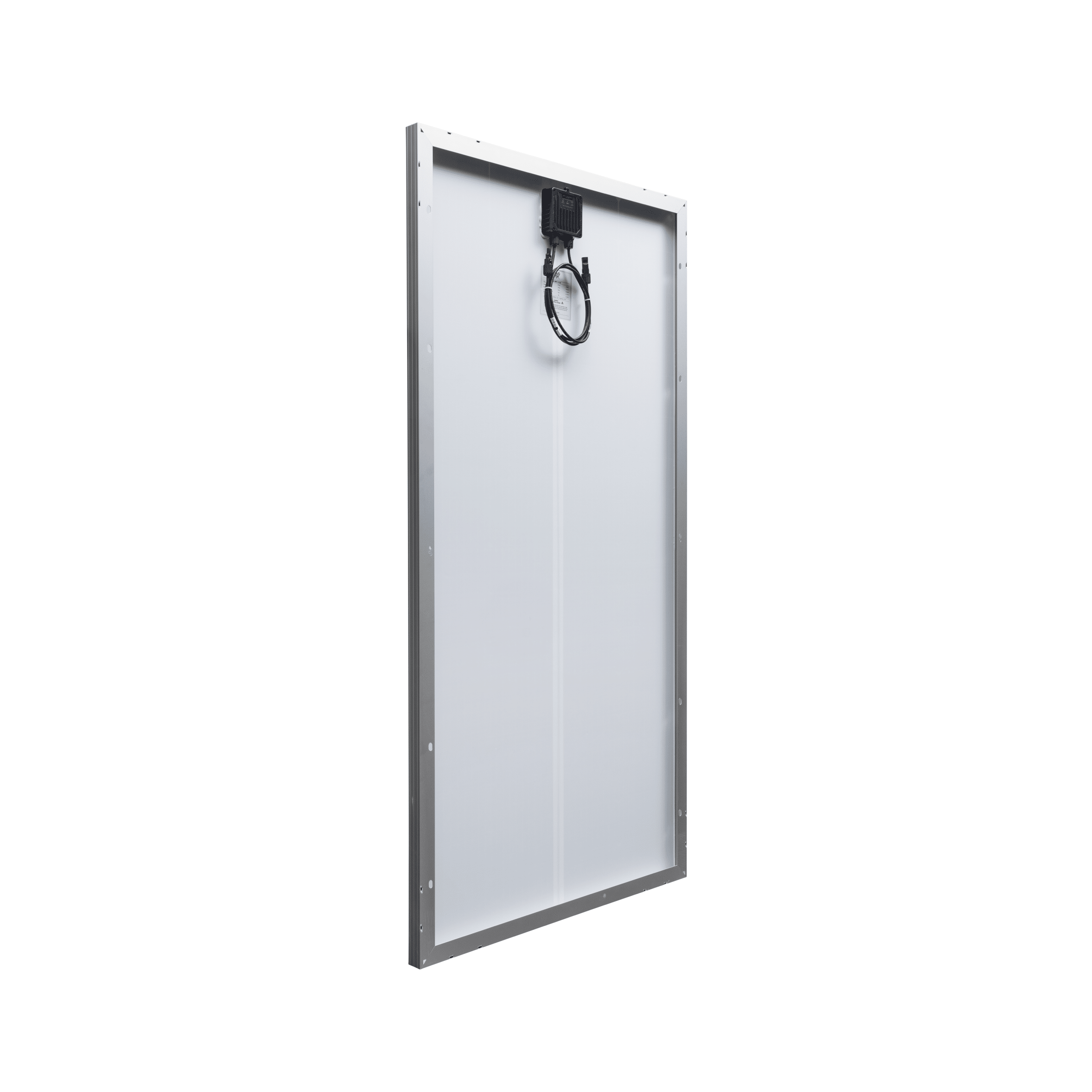

The Battle Born® Elite 230W 12V Rigid Solar Panel delivers powerful output while optimizing roof space. Its 23% module efficiency and anti-shading cell design provide more usable energy per panel, reducing the number of panels required in a system. Engineered with a durable anodized aluminum frame and tempered glass, it is tested to withstand snow, wind, UV, and salt mist exposure. The Elite 230W is the ideal balance of compact size, high output, and proven reliability for medium-sized off-grid systems.

  • Higher Power in the Same Footprint: More watts per panel compared to standard modules
  • Anti-Shading Technology: Maintains steady output during dawn, dusk, clouds, or partial shade
  • 230W Power Output: Designed for 12V applications
  • Optimized Dimensions: Measures 59.8 × 30.1 × 1.4 in, Weighs 28 lbs
  • Weather-Tough Design: Rated for 5400 Pa snow load, 2400 Pa wind load, with salt mist and UV resistance
  • Built to Last: Heavy-duty aluminum framing and low-iron tempered glass ensure strength and high light transmission
  • Long-Term Reliability: Backed by a 10-year workmanship warranty and 25-year linear performance warranty

Resources

Need Help?

Ask a technical specialist now at 855.292.2831

You Might Also Like

Product Features

Battle Born Elite 230W 12V Rigid Solar Panel
Battle Born Elite 230W 12V Rigid Solar Panel

Features

  • Maximum Power (Pmax): 230W
  • Voltage at Pmax (Vmp): 18.37V
  • Current at Pmax (Imp): 12.56A
  • Open-Circuit Voltage (Voc): 21.57V
  • Short-Circuit Current (Isc): 13.39A
  • Temperature Coefficient of Voc: -(80±10)mV/°C
  • Temperature Coefficient of Isc: (0.065±0.015)%/°C
  • Temperature Coefficient of Power: -(0.5±0.05)%/°C
  • NOCT (Air 20°C; Sun 0.8kW/m² Wind 1m/s): 47±2°C
    • *NOCT: Nominal operating cell temperature (the data is only for reference)
  • Operating Temperature: -40°F to 185°F (-40°C to 85°C)
  • Maximum System Voltage: 1000V DC
  • Power Tolerance: ± 5%



Specifications

  • Cells: Monocrystalline Silicon Solar Cell
  • Number of Cells & Connections: 64 ( 4 x 16)
  • Module Dimension: 59.84” x 30.12” x 1.38”
  • Weight: 28.03 lbs.
  • Packing Information (Carton): 61.61” x 31.89“ x 2.76”

Documentation

Misc_Documents
Download product documentation that you might find helpful for the Battle Born Elite 230W 12V Rigid Solar Panel, including Manuals, Cutsheets, Data Sheets, Installation Guides, and more.
Battle Born Elite 230W 12V Rigid Solar Panel Data Sheet

Document


Technical Support

Have questions about whether the Battle Born Elite 230W 12V Rigid Solar Panel is suitable for your power system? Battle Born Batteries’ Technical Sales Specialists are here to provide system consultations and support, answer questions, help you place an order, and more.
