Rich Solar Mega 150-Watt Solar Panel

Rich Solar Mega 150-Watt Solar Panel

(On orders over $50)

Original price was: $169.99.Current price is: $144.49.

-

RS-M150

The Rich Solar Mega 150-Watt Solar Panel is a lightweight 12V off-grid solar panel for RVs, cabins, and boats. Combining 24.8% high efficiency and a compact design, the Rich Solar Mega 150-Watt Solar Panel provides optimized solar energy for any off-grid application. Built with lightweight aluminum anodized frames and an 18-busbar solar cell configuration for durability and high efficiency for optimized performance.

Resources

Need Help?

Ask a technical specialist now at 855.292.2831

You Might Also Like

Product Description

Rich Solar Mega 150-Watt Solar Panel
Rich Solar Mega 150-Watt Solar Panel
Rich Solar Mega 150-Watt Solar Panel
Rich Solar Mega 150-Watt Solar Panel
  • 18 busbar solar cell configuration

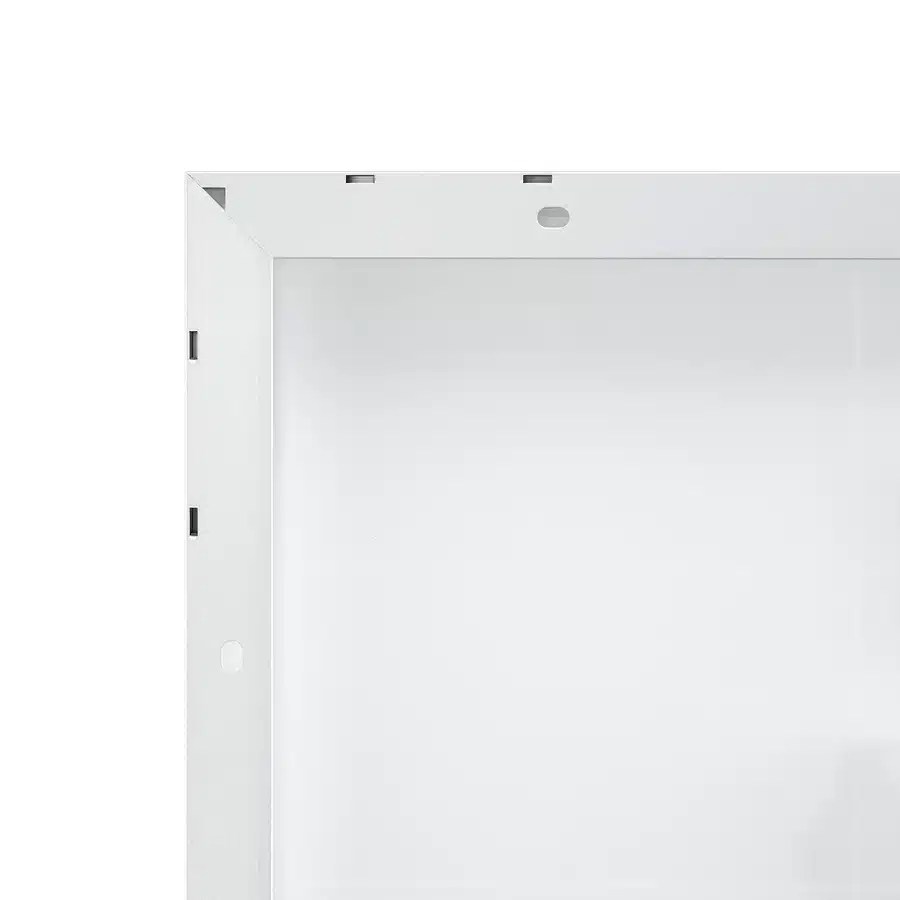

  • Lightweight anodized aluminum frame
  • High Transmission, AR (anti-reflective) Coated Tempered Glass
  • Plug-and-play junction box
  • Industry-standard quick-connect cables work in series or parallel
  • Certified to withstand challenging environmental conditions
  • Excellent low-light performance on cloudy days, mornings, and evenings

Installation

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Built-in Components

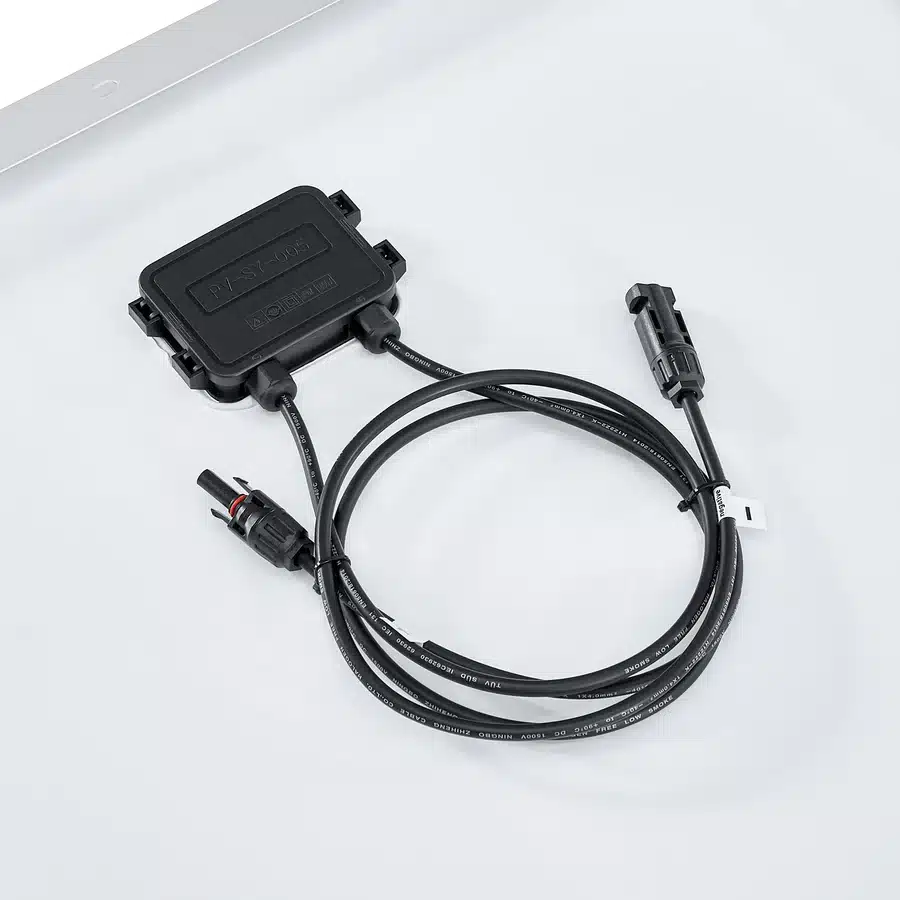

  • Panel leads (pair): 3 feet each
  • IP67-rated waterproof junction box
  • IP67-rated waterproof solar connectors
  • Bypass diodes built into the junction box

Features

Features

  • On Panel Cable Length: ≈ 35 in
  • Material: Tempered Glass, Aluminum, Monocrystalline Silicon
  • Dimensions: 44.0 x 26.4 x 1.2 in
  • Weight: 18.1 lb
  • Maximum Power (PMAX): 150W
  • Maximum Power Voltage (VMP): 17.5V
  • Maximum Power Current (IMP): 8.57A
  • Open Circuit Voltage (VOC): 21.8V
  • Short Circuit Current (ISC): 8.94A
  • Maximum System Voltage (VMAX): 1000VDC
  • Temperature Range: -40 ~ +185°F

Documentation

Misc_Documents
Download product documentation for the Rich Solar Mega 150-Watt Solar Panel, including Product Manuals, Cutsheets, Data Sheets, Quick Install Guides, Firmware Updates, Configurations, and more.
Rich Solar Mega 150-Watt Solar Panel Data Sheet

Document


Technical Support

Have questions about whether the Rich Solar Mega 150-Watt Solar Panel is suitable for your power system? Battle Born Batteries’ Technical Sales Specialists are here to provide system consultations and support, answer questions, help you place an order, and more.
