Rich Solar Mega 100-Watt Slim Solar Panel

Rich Solar Mega 100-Watt Slim Solar Panel

(On orders over $50)

Original price was: $129.99.Current price is: $103.99.

-

RS-M100SL25

The Rich Solar Mega 100-Watt Slim Solar Panel is a compact 12V off-grid narrow solar panel ideal for vans, overlanders, and boats.

Resources

Need Help?

Ask a technical specialist now at 855.292.2831

You Might Also Like

Product Description

Rich Solar Mega 100-Watt Slim Solar Panel
Rich Solar Mega 100-Watt Slim Solar Panel
Rich Solar Mega 100-Watt Slim Solar Panel
Rich Solar Mega 100-Watt Slim Solar Panel

The Rich Solar Mega 100-Watt Slim Solar Panel is a compact 12V off-grid narrow solar panel ideal for vans, overlanders, and boats.

  • Durable anodized aluminum frame — lightweight and corrosion-resistant
  • 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
  • MC4 connectors with 3 ft pre-attached cables for easy connection to other solar panels
  • Compatible with both on-grid and off-grid inverters
  • 16-busbar monocrystalline cells with up to 25.1% efficiency
  • 34-cell configuration delivers a reliable 100W output
  • 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability
  • Power tolerance 0 to +5W ensures at least the rated output
  • Excellent low-light performance on cloudy days and at dawn/dusk
  • Tested for UV exposure, thermal cycling, humidity freeze, and more
  • PID-resistant and 100% EL-inspected to prevent microcracks
  • Certified to withstand 2400 Pa wind, 5400 Pa snow load, and 35 mm hail at 97 km/h
  • Perfect for RVs, vans, truck campers, overland rigs, and marine systems

Features

Features

  • On Panel Cable Length: ≈ 35 in
  • Material: Tempered Glass, Aluminum, Monocrystalline Silicon

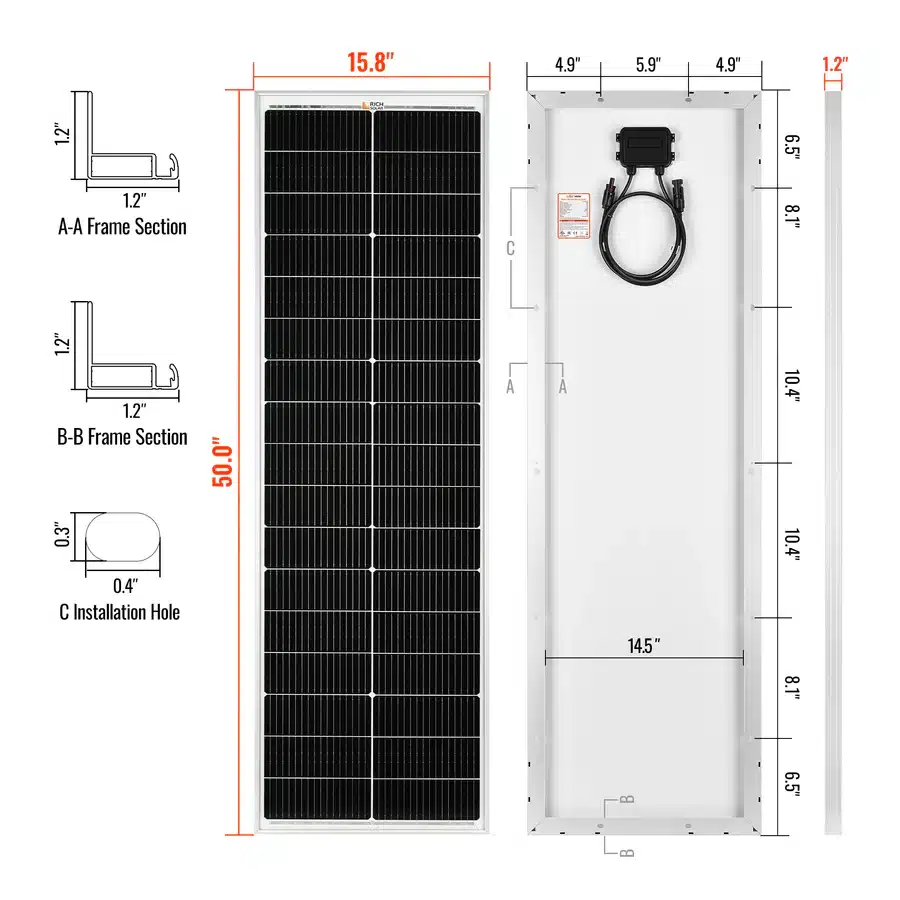

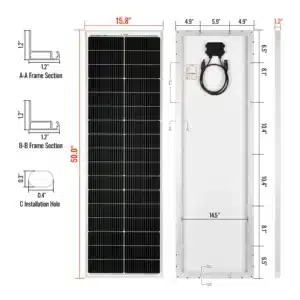

  • Dimensions: 50.0 x 15.8 x 1.2 in
  • Weight: 12.4lb
  • Maximum Power (PMAX): 100W
  • Maximum Power Voltage (VMP): 19.6V
  • Maximum Power Current (IMP): 5.1A
  • Open Circuit Voltage (VOC): 23.6V
  • Short Circuit Current (ISC): 5.38A
  • Maximum System Voltage (VMAX): 1000VDC
  • Maximum Series Fuse Rating: 15A

Documentation

Misc_Documents
Download product documentation for the Rich Solar Mega 100-Watt Slim Solar Panel, including Product Manuals, Cutsheets, Data Sheets, Quick Install Guides, Firmware Updates, Configurations, and more.
Rich Solar Mega 100-Watt Slim Solar Panel Data Sheet

Document


Technical Support

Have questions about whether the Rich Solar Mega 100-Watt Slim Solar Panel is suitable for your power system? Battle Born Batteries’ Technical Sales Specialists are here to provide system consultations and support, answer questions, help you place an order, and more.
