Phoenix 12V VE.Direct NEMA 5-15R Inverters

Phoenix Inverter VE.Direct

$96.90 – $352.75

-

PIN122510500, PIN125010500, PIN122122500

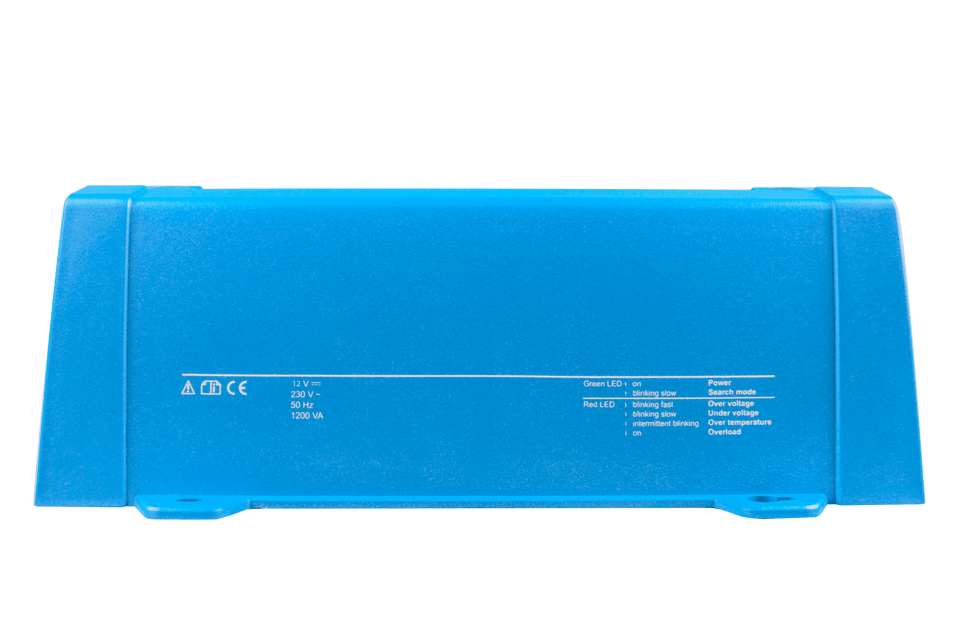

The Victron Energy Phoenix 12V VE.Direct NEMA 5-15R Inverters are stand alone 120V inverters – a true sine wave inverter with optimized efficiency. This inverter allows you to power domestic equipment – requiring 230V/120V AC – using batteries rated at 12V, 24V or 48V DC.

Resources

Need Help?

Ask a technical specialist now at 855.292.2831

You Might Also Like

You may also like…

Product Features

Phoenix Inverter VE.Direct
Phoenix Inverter VE.Direct
Phoenix Inverter VE.Direct
Phoenix Inverter VE.Direct
Phoenix 12/500 VE.Direct NEMA 5-15R Inverter
PIN125010500 (3)
Phoenix 12/500 VE.Direct NEMA 5-15R Inverter
VICTRON ENERGY, PIN122122500, PHOENIX INVERTER 12/1200 120V VE.DIRECT NEMA 5-15R
VICTRON ENERGY, PIN122122500, PHOENIX INVERTER 12/1200 120V VE.DIRECT NEMA 5-15R
VICTRON ENERGY, PIN122122500, PHOENIX INVERTER 12/1200 120V VE.DIRECT NEMA 5-15R

The Victron Energy Phoenix 12V VE.Direct NEMA 5-15R Inverters allow you to power domestic equipment using ‘leisure’ or ‘automotive’ batteries rated at 12V, 24V, or 48V DC.

This device’s VE.Direct communication port can be connected to a computer (VE.Direct to USB interface cable needed) or Apple and Android smartphones, tablets, MacBooks, and other devices (VE.Direct Bluetoothยฎ Smart dongle needed). It is fully configurable for:

  • Low battery voltage alarm trip and reset levels
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off: load-dependent cut-off level
  • Output voltage 210 – 245V
  • Frequency 50 Hz or 60 Hz
  • ECO mode on/off and ECO mode sense level

Features

Proven Reliability: The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High Start-Up Power: Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO Mode: When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote On/Off: A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis: Please see manual for a description.

Automatic Transfer Switch: To transfer the load to another AC source, use the automatic transfer switch.

Documentation

Download product documentation that you might find helpful for the Phoenix 12V VE.Direct NEMA 5-15R Inverters, including Manuals, Cutsheets, Data Sheets, Installation Guides, and more.
Phoenix Inverter VE.Direct

Document

VictronConnect App

Monitor, configure, manage, and update your Victron Energy equipment with the VictronConnect App. Victron Smart products connect to the app through Bluetooth, USB, WiFi, LAN, or remotely via the internet.

AppleStore
GooglePlay
WindowsStore
For more information, download the VictronConnect Manual.
Victron Energy app

Technical Support

Have questions about whether the Phoenix 12V VE.Direct NEMA 5-15R Inverters is suitable for your power system? Battle Born Batteries’ Technical Sales Specialists are here to provide system consultations and support, answer questions, help you place an order, and more.
