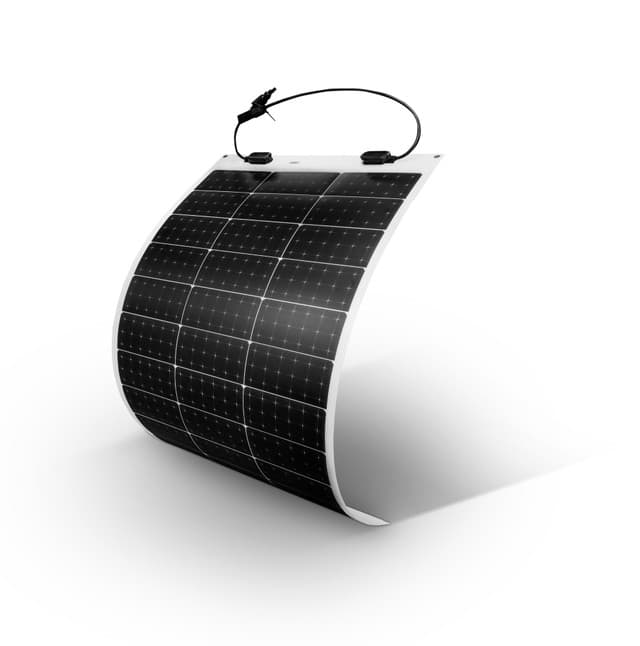

100W 12V Semi-Flexible Monocrystalline Solar Panel



SKU: NPA100S-12SFM Category:


Newpowa’s New 100W 12V Monocrystalline Ultra High-Efficiency Semi Flexible Solar Panel is made with versatility in mind and is geared towards intricate surface installation & mounting. Due to its lightweight and portability, this module is ideal for marine boat, tear drop trailers, and overlanding tents.


  • Easy Installation
  • Four pre-drilled holes and connectors help you install easily and quickly
  • Technology Introduction
    -With Hidden busbars, Solar cell area increased by 3%
    -Eliminate the power loss caused by micro cracks and degradation
  • Lightweight and Ultra-thin Design
    -Its 3.09lbs weight and 0.07in thickness are ideal for travel purposes with easy installation
  • Highly Reliable
    -After stringent environmental tests, it was shown to withstand high winds(1600Pa), hail and snow load (2400Pa)

Tech & Specs

  • Product Code: NPA100S-12SFM
  • Maximum power (Pmax): 100W
  • Voltage at Pmax (Vmp): 20.20V
  • Current at Pmax (Imp): 4.96A
  • Open-circuit voltage (Voc): 24.40V
  • Short-circuit current (Isc): 5.31A
  • Temperature coefficient of Voc: -(80±10)mV/°C
  • Temperature coefficient of Isc: (0.065±0.015)%/ °C
  • Temperature coefficient of power: -(0.5±0.05)%/ °C
  • NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s): 47±2°C
  • Operating temperature: -40°C to 85°C
  • Maximum system voltage: 1000V DC
  • Power tolerance: ± 3%
  • Maximum Series Fuse Rating: 15A
100W 12V Semi-Flexible Monocrystalline Solar Panel Data Sheet
