Busbar 250A 4P + Cover

Busbar 250A 4P + Cover

VBB125040010

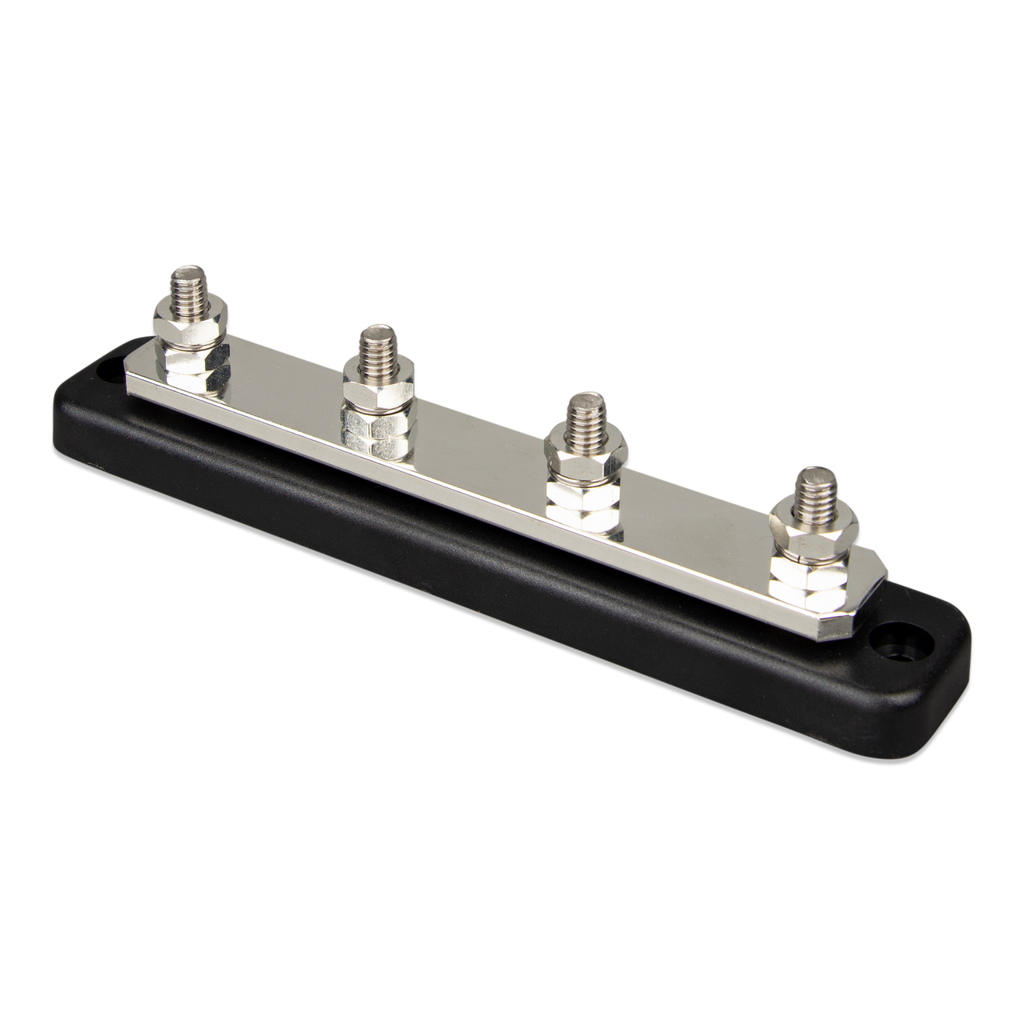

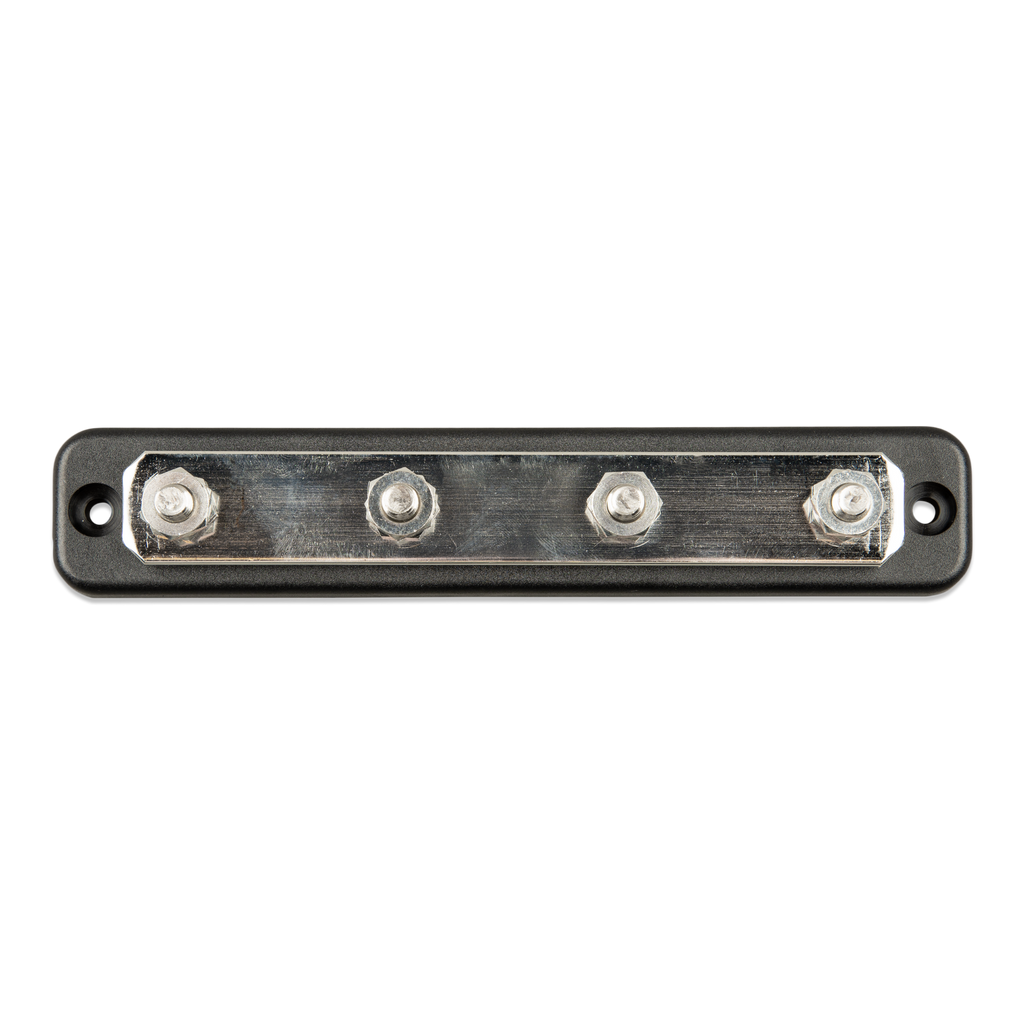

The Victron Energy Busbar 250A 4P is designed for safe and efficient high-current power distribution in DC systems. It provides four connection points for batteries and DC equipment, helping organize wiring and ensure reliable electrical connections in marine, vehicle, and off-grid applications.

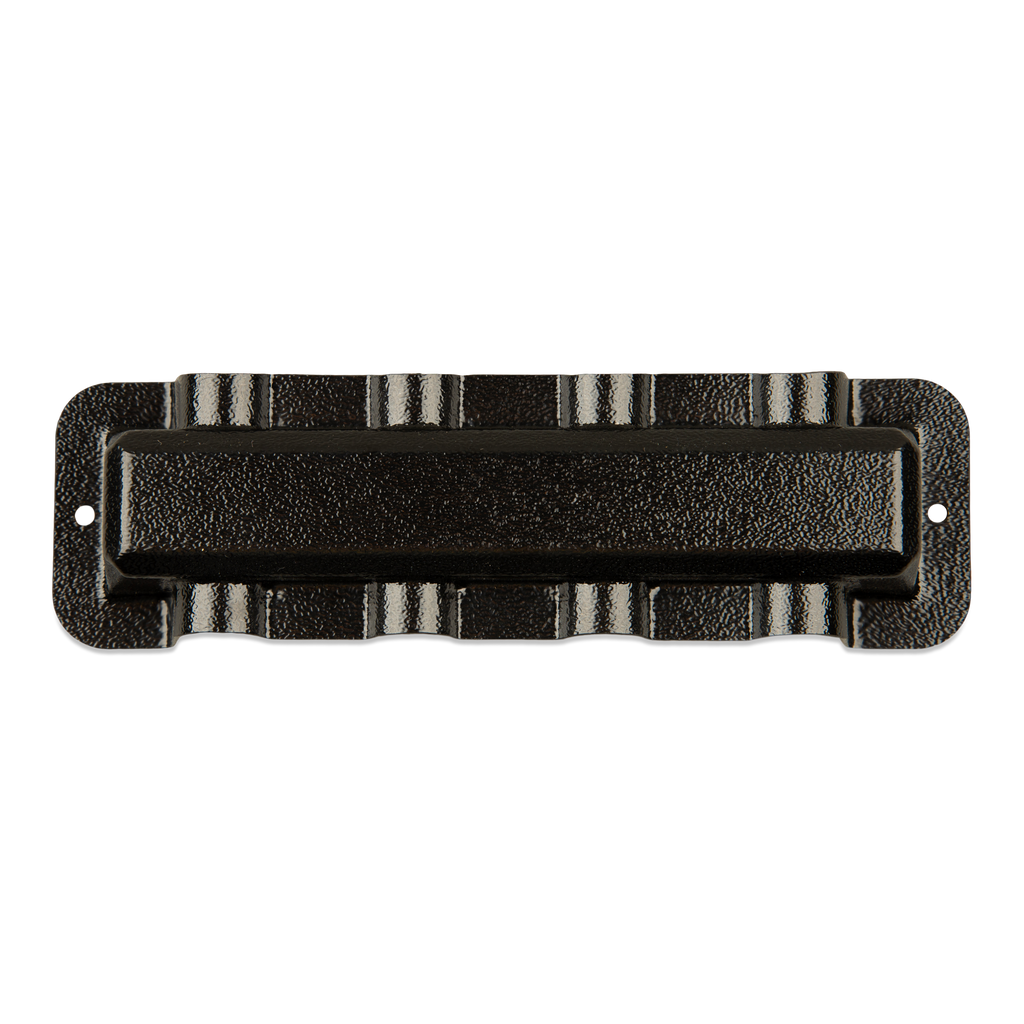

Built for durability and safety, the busbar includes a removable protective cover to prevent accidental contact and protect connections from debris. Its robust construction and compact design make it an ideal solution for clean, professional power distribution in demanding energy systems.

$62.90
  • Max. current rating: 250 A
  • Max. Voltage rating: 70 VDC
  • Terminal diameter: 5/16 inch
  • Terminal height: 0.67 inch
  • Terminal material: Stainless steel
  • Hex nut material: Tin-plated copper
  • Recommended torque: 110 lbf·inch / 13 N·m
  • Busbar strip material: Tin-plated copper (5 x 24 mm)
  • Base material: ABS, black, UL 94 V-0
  • Cover material: ABS, black, UL 94 V-2
  • Weight, 4 terminals: 1.0 lb / 0,45 kg
  • Dimensions with Cover (hxwxd): 1.9 x 9.4 x 2.8 inch
