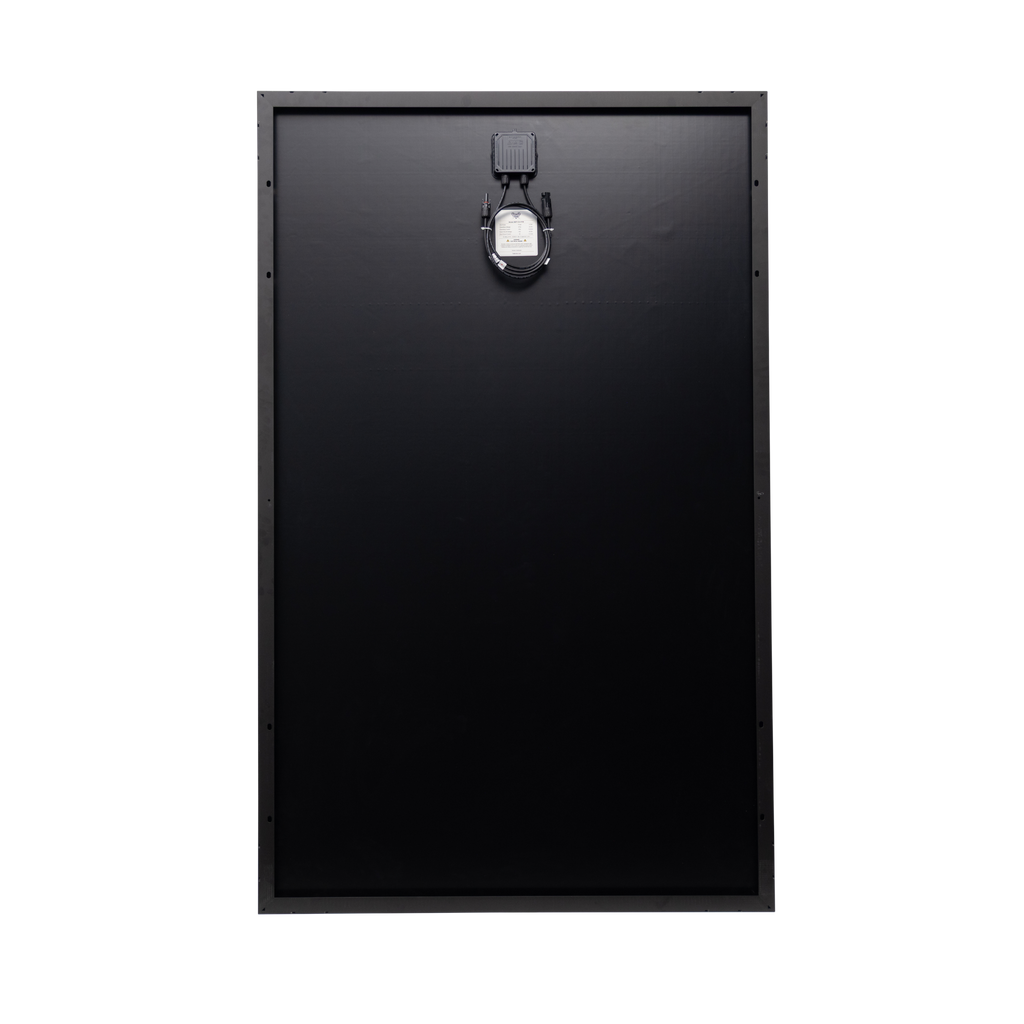

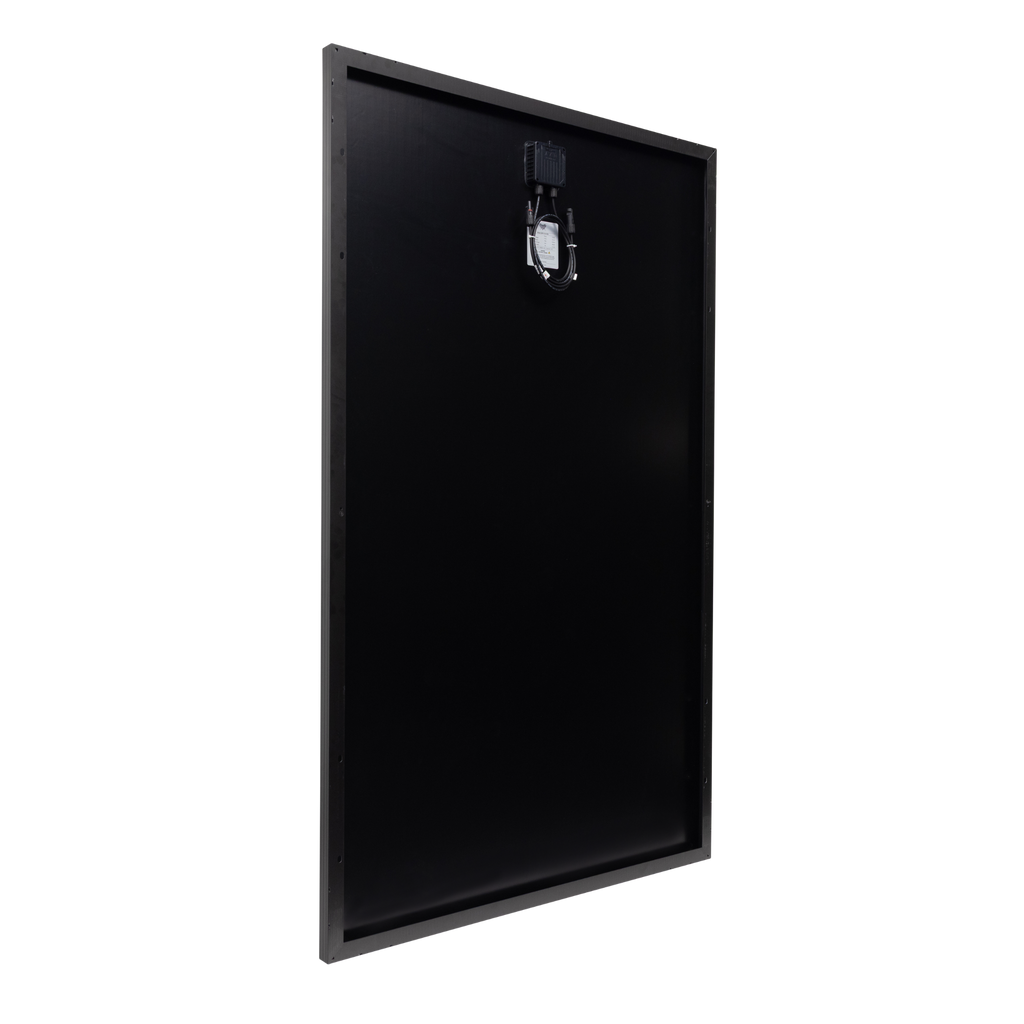

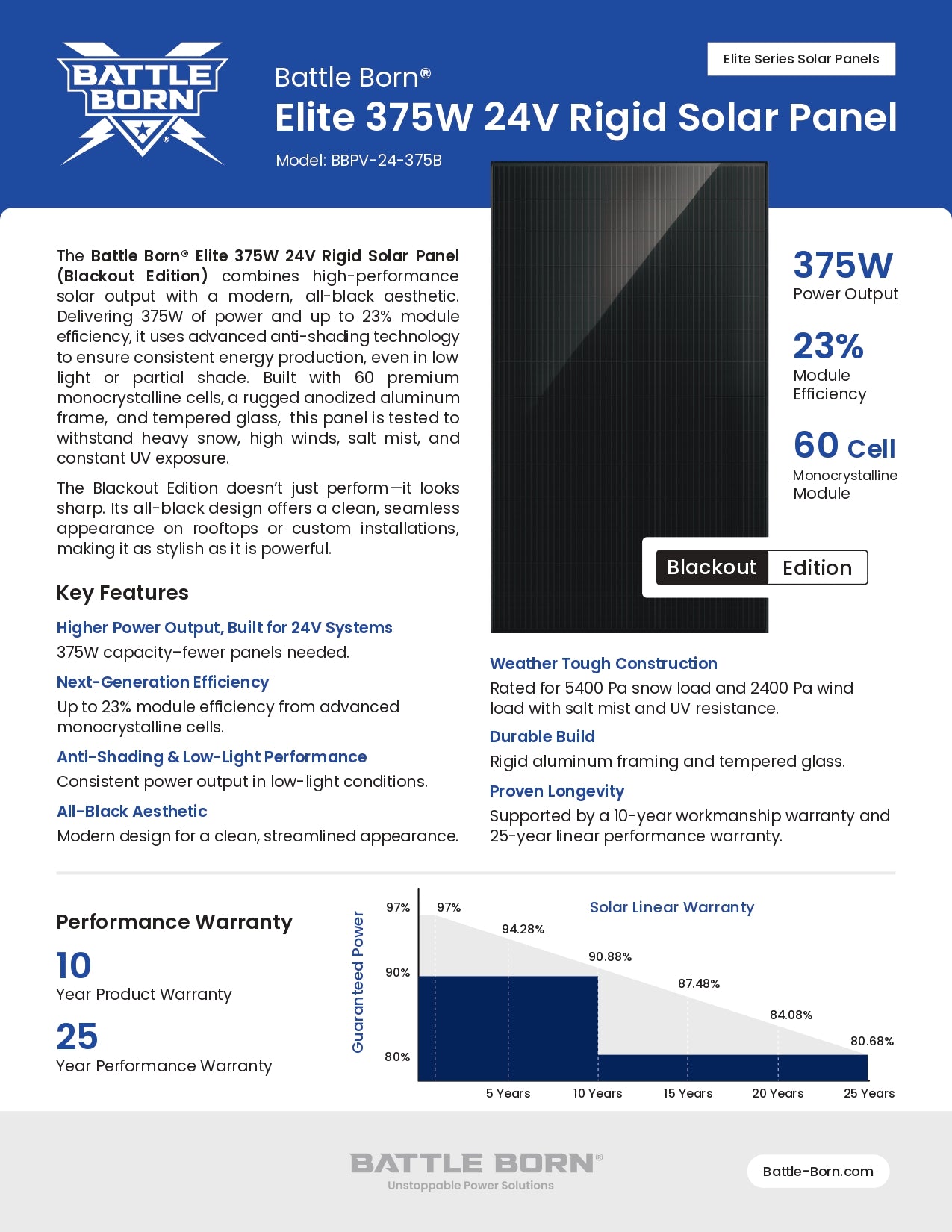

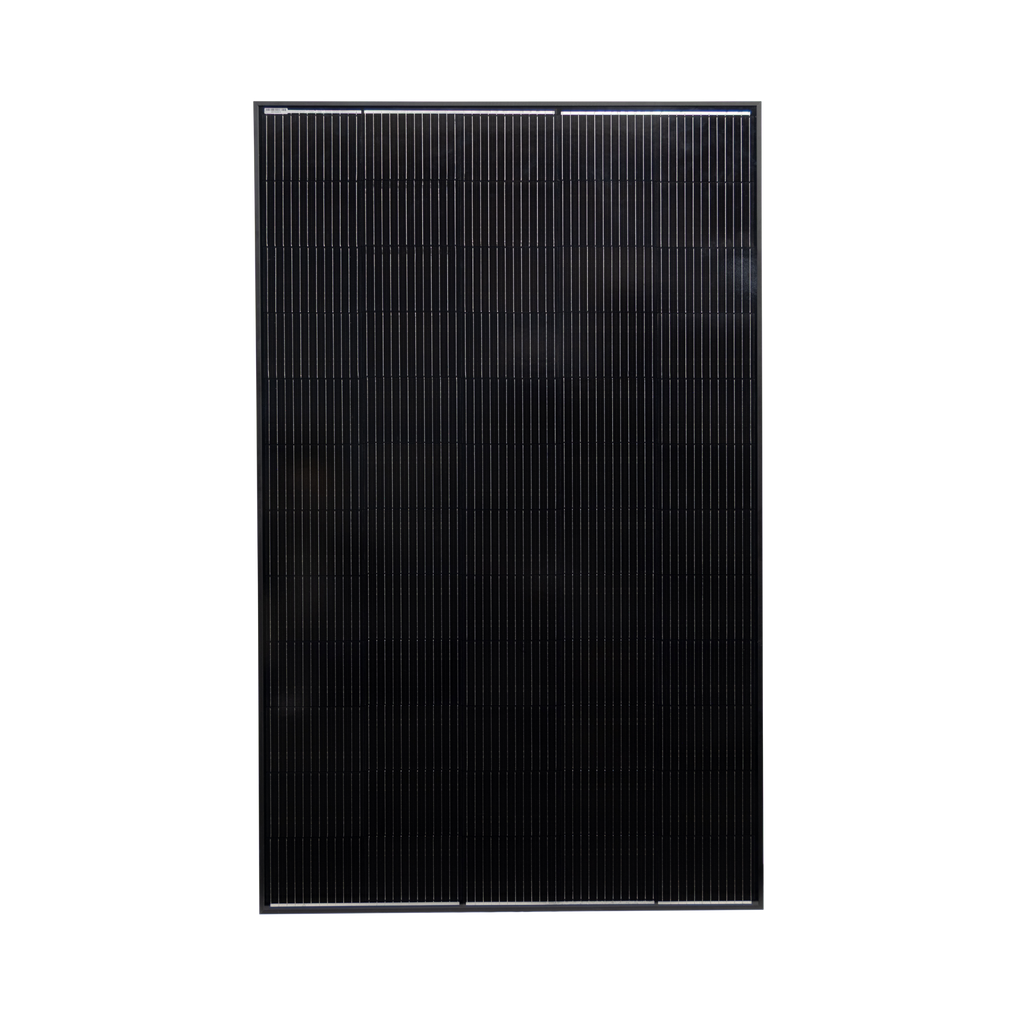

Battle Born Elite 375W 24V Rigid Solar Panel | Blackout Edition
The Battle Born Elite 375W 24V Rigid Solar Panel | Blackout Edition delivers high-capacity solar generation with a sleek all-black design engineered for modern energy systems. Built with advanced monocrystalline solar cells and Battle Born ShadeGuard™ anti-shading technology, it provides strong output and consistent energy production even in variable light conditions.

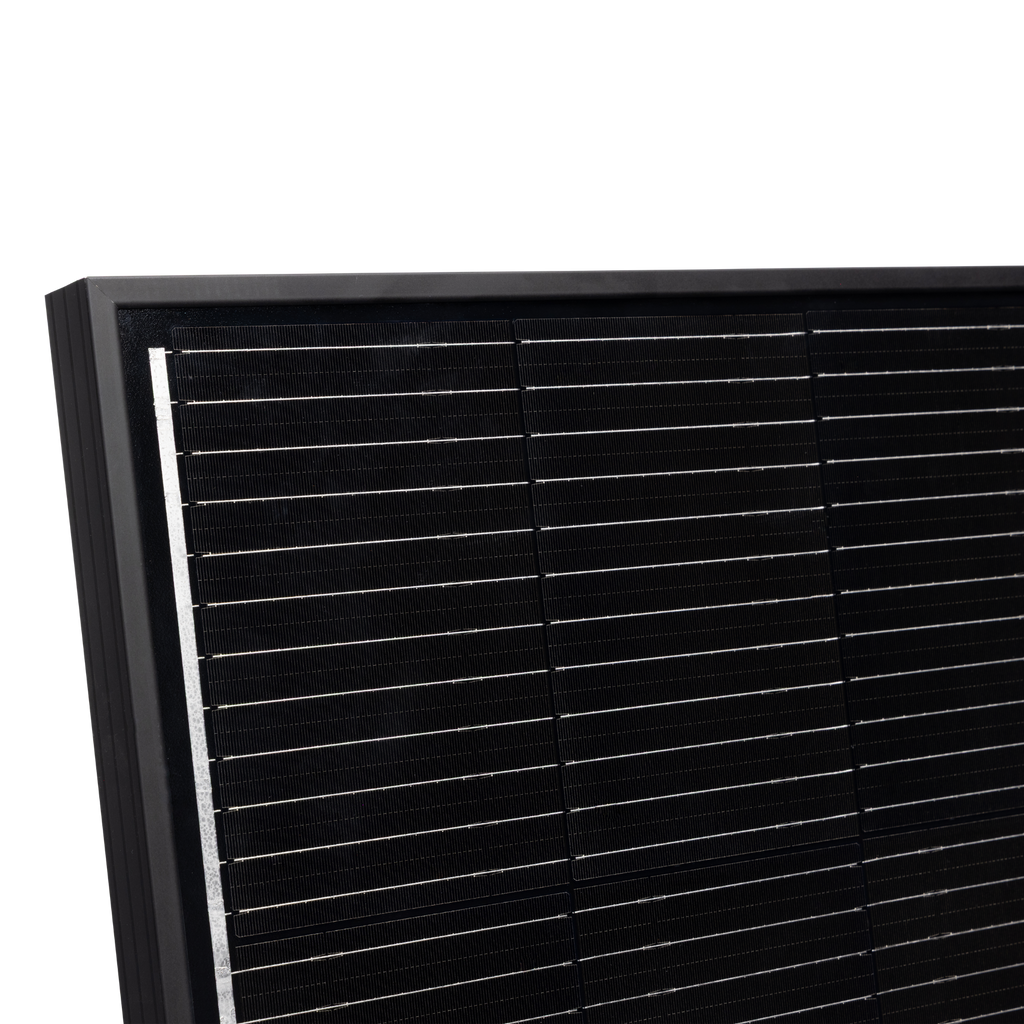

Constructed with a rigid anodized aluminum frame and tempered glass, the Battle Born Elite 375W 24V Rigid Solar Panel | Blackout Edition is built to deliver dependable solar performance in demanding environments.

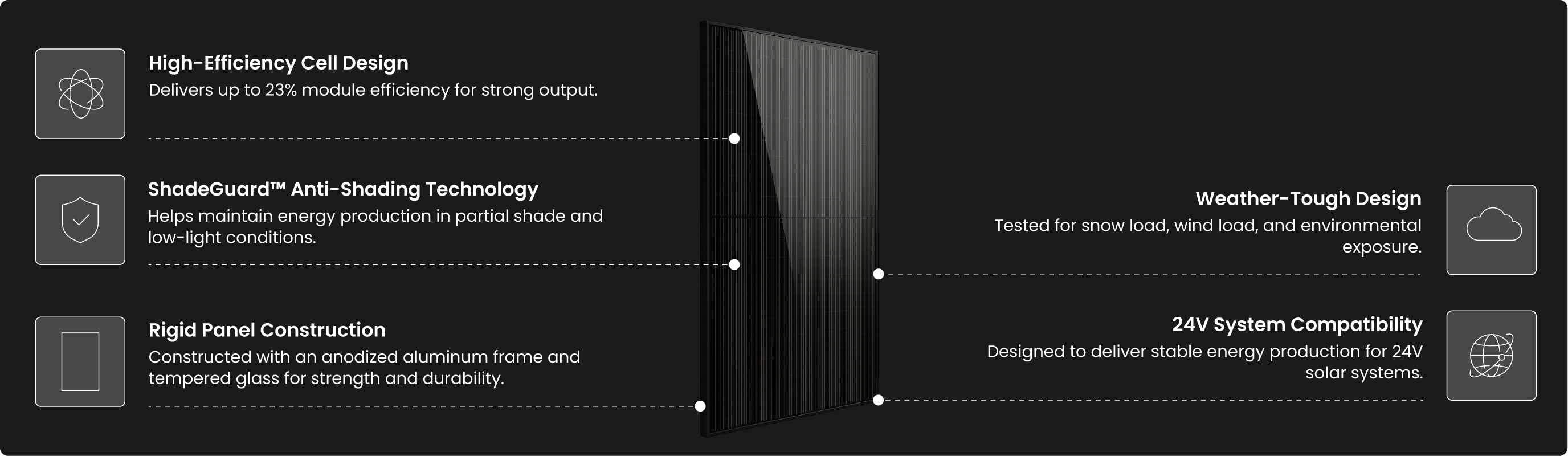

Key Advantages
Common Applications
RV
Marine
Off-Grid
Fleet
Industrial
Flexible System Integration
Designed for 24V systems and compatible with standard solar charge controllers, making it easy to integrate into new or existing setups.
Built for Real-World Performance

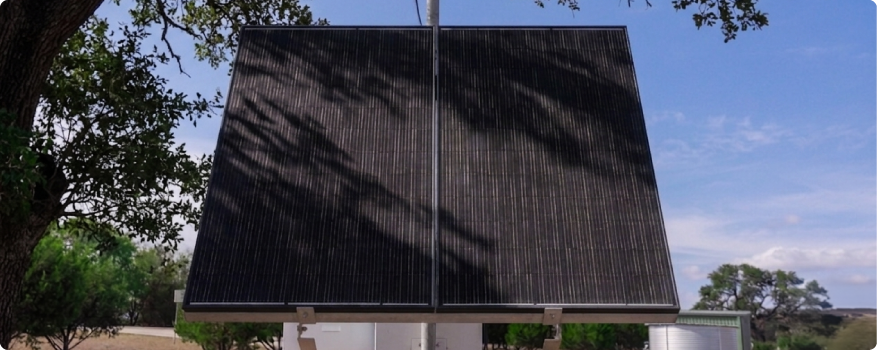

The Battle Born Elite 375W 24V Rigid Solar Panel | Blackout Edition delivers stable performance across changing conditions. With high-efficiency cells and ShadeGuard™ technology, it helps ensure reliable solar production in everyday use.
Built for Real-World Performance
The Battle Born Elite 375W 24V Rigid Solar Panel | Blackout Edition delivers stable performance across changing conditions. With high-efficiency cells and ShadeGuard™ technology, it helps ensure reliable solar production in everyday use.
| Specifications | |
|---|---|
| Cells | Monocrystalline Silicon Solar Cell |
| Number of Cells & Connections | 60 (5 x 12) |

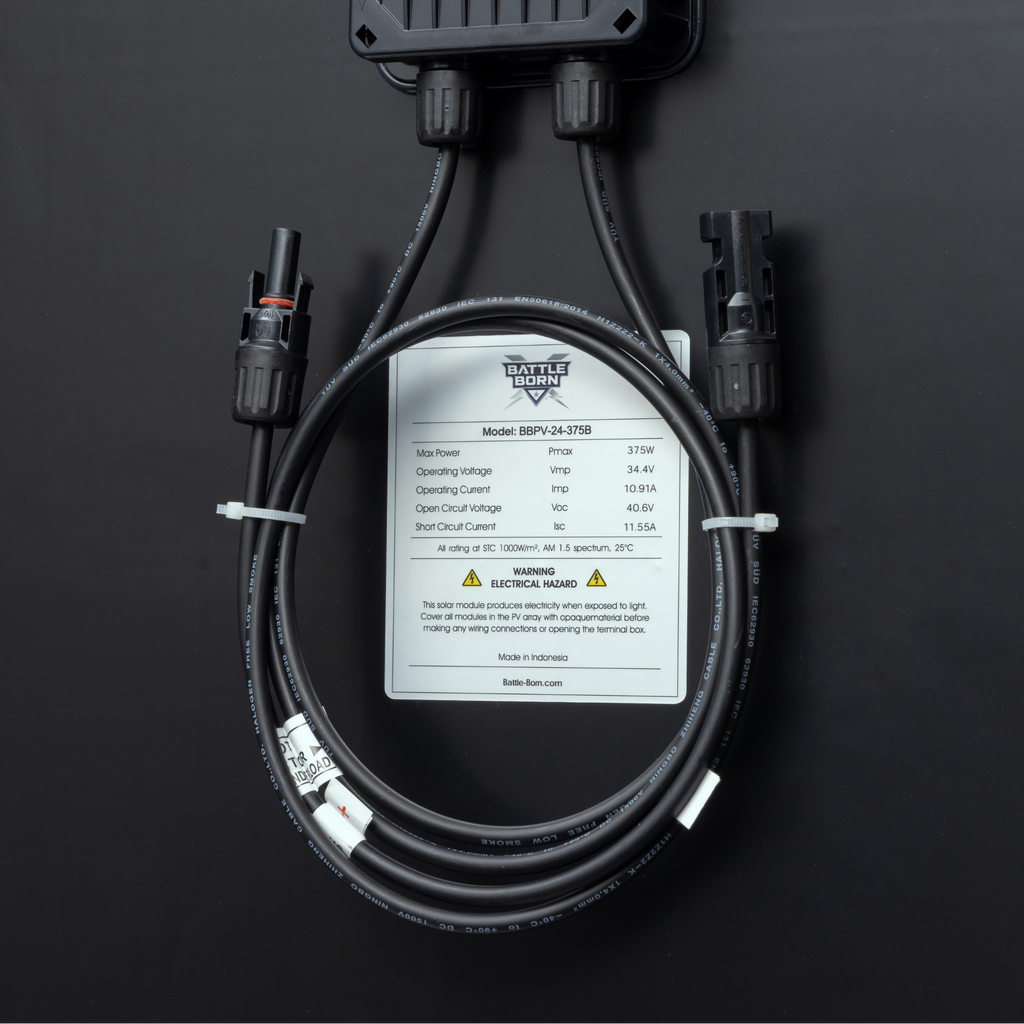

| Maximum Power (Pmax) | 375W |
| Voltage at Pmax (Vmp) | 34.4V |
| Current at Pmax (Imp) | 10.91A |
| Open-Circuit Voltage (Voc) | 40.6V |
| Short-Circuit Current (Isc) | 11.55A |
| Temperature Coefficient of Voc | -(80±10)mV/°C |
| Temperature Coefficient of Isc | (0.065±0.015)%/°C |
| Temperature Coefficient of Power | -(0.5±0.05)%/°C |
| NOCT (Air 20°C; Sun 0.8kW/m² Wind 1m/s) | 47±2°C*NOCT (Nominal operating cell temperature - the data is only for reference) |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | ± 5% |

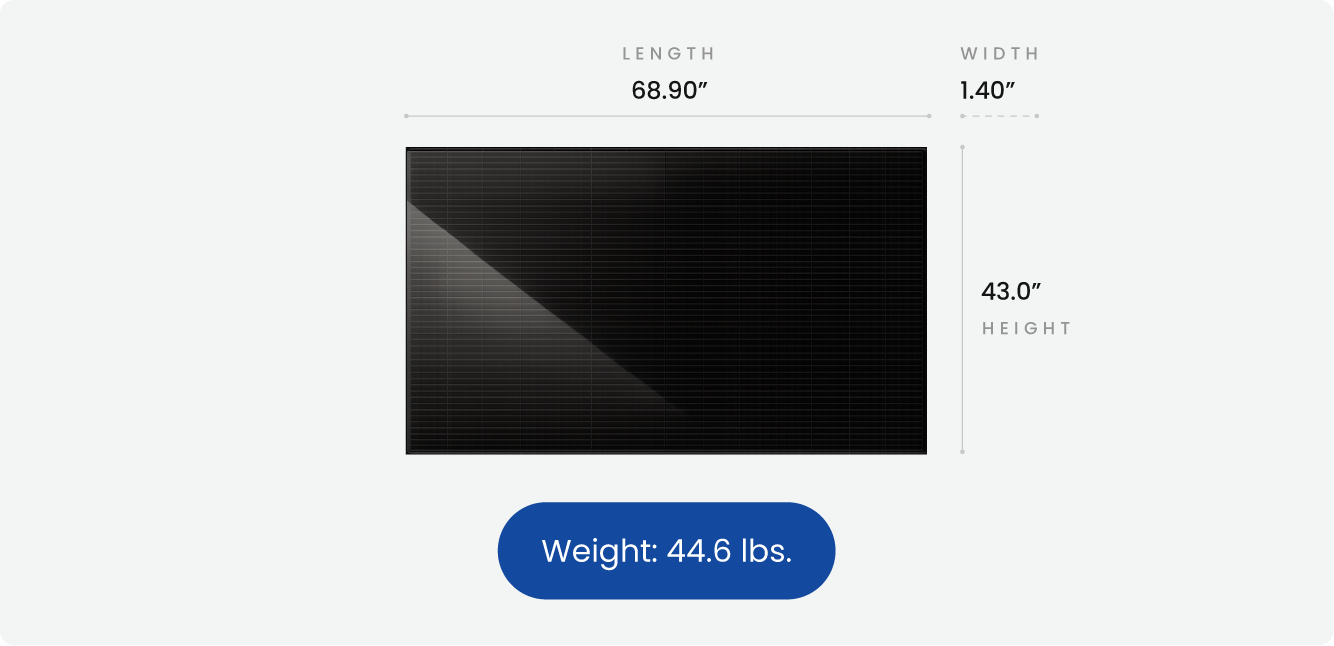

| Dimensions | |
|---|---|
| Length | 68.90 in |
| Width | 42.99 in |
| Height | 1.38 in |
| Weight | 44.60 lb |
| Packing Information (Carton) | |
|---|---|
| Length | 70.67 in |
| Width | 44.76 in |
| Height | 2.76 in |
