Wakespeed 48V/12V Bi-Directional DC-DC Converter

+ WS500 Pro & Positive-CAN Harness

$3,116.50

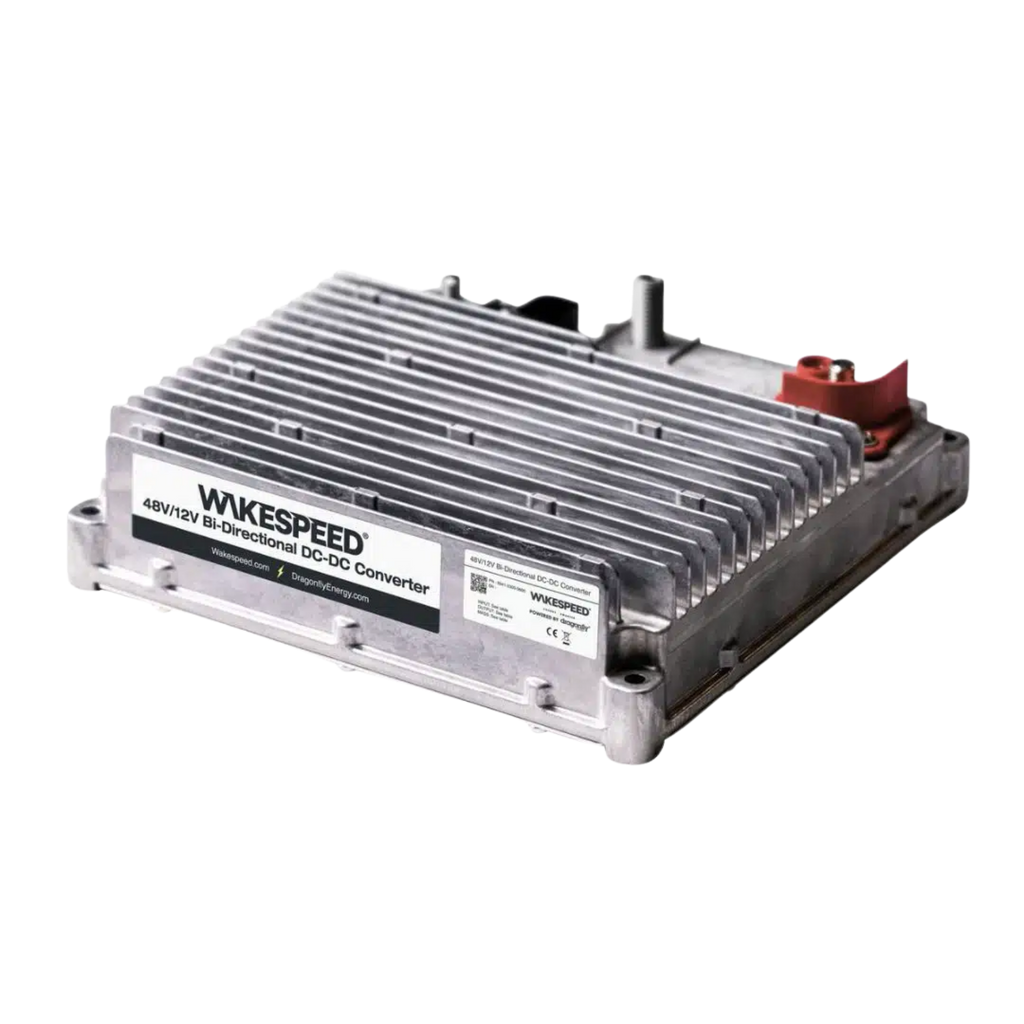

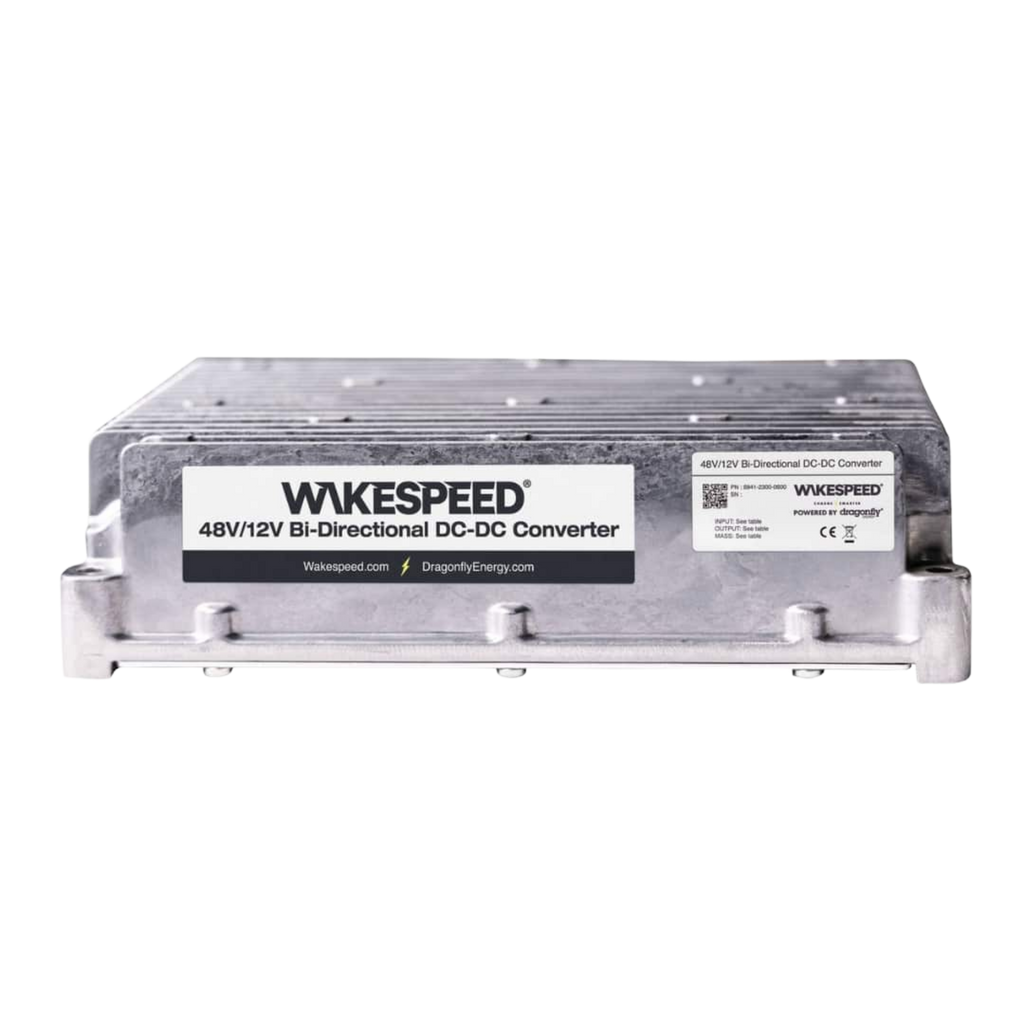

Wakespeed 48V/12V Bi-Directional DC-DC Converter

WS48-12X-PROKIT-PHCAN

The Wakespeed 48v/12v Bi-Directional DC-DC Converter (WS48-12x) simplifies and streamlines installation with its efficient Bi-Directional Buck-Boost DC-DC Converter. From installation using the existing chassis alternator to supplementing or even replacing the chassis alternator with a high-energy unit, the WS48-12x seamlessly manages power distribution, putting it exactly where you need it.

$3,116.50

WS48-12X Kit + WS500 Pro & Positive-CAN Harness + WS500 Pro & Positive-CAN Harness + WS500 Pro & Positive-VAN Harness + WS500 & Positive-CAN Harness + WS500 & Positive-VAN Harness

A Battle Born WS500 Pro Bluetooth® Advanced Alternator Regulator is required.
Seamless transfer of up to 3,000 watts of power from one voltage bus to the other.
Support for 12v/48v power buses.
Works with existing chassis alternators - no changes needed.
Charge higher voltage batteries utilizing existing chassis electrical system.
Suppliant system power generation using 2nd higher voltage alternator fully controlled by the WS3000.
On demand supplemental chassis electrical system power to support surge loads without cost of additional batteries.
J1939/RV-C based CAN support for system and BMS integration.
Wide BMS integration support, both CAN and non-CAN based batteries.
Compatible with additional WS500 controlled alternators installed in same system.
