MPPT Solar Charge Controller

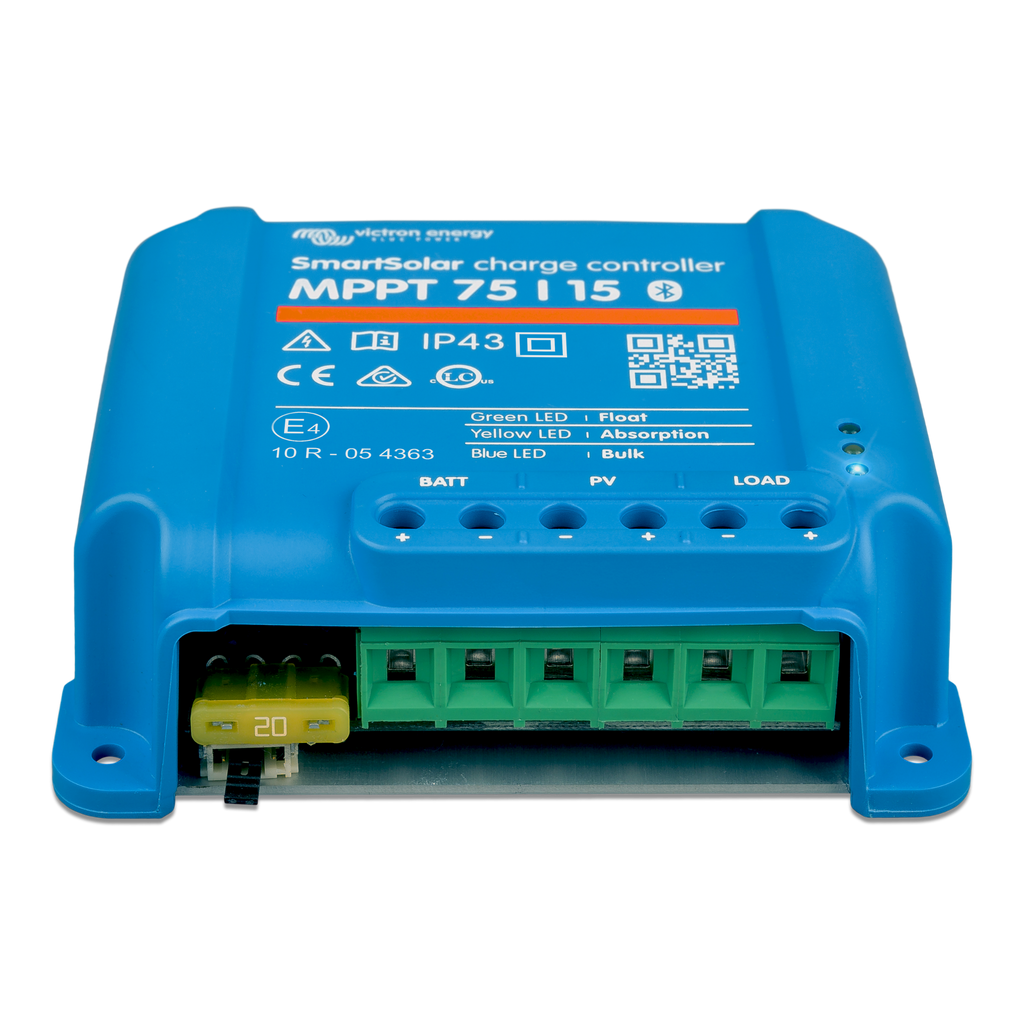

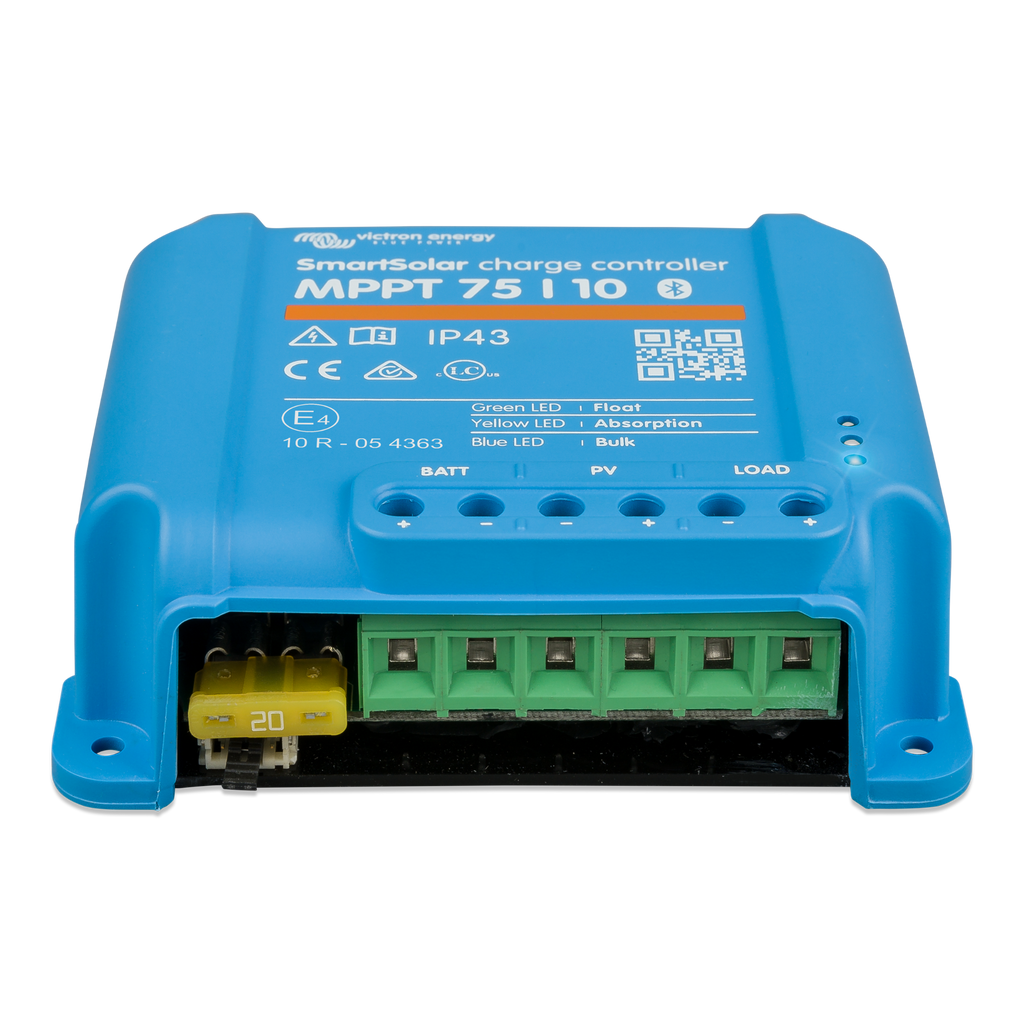

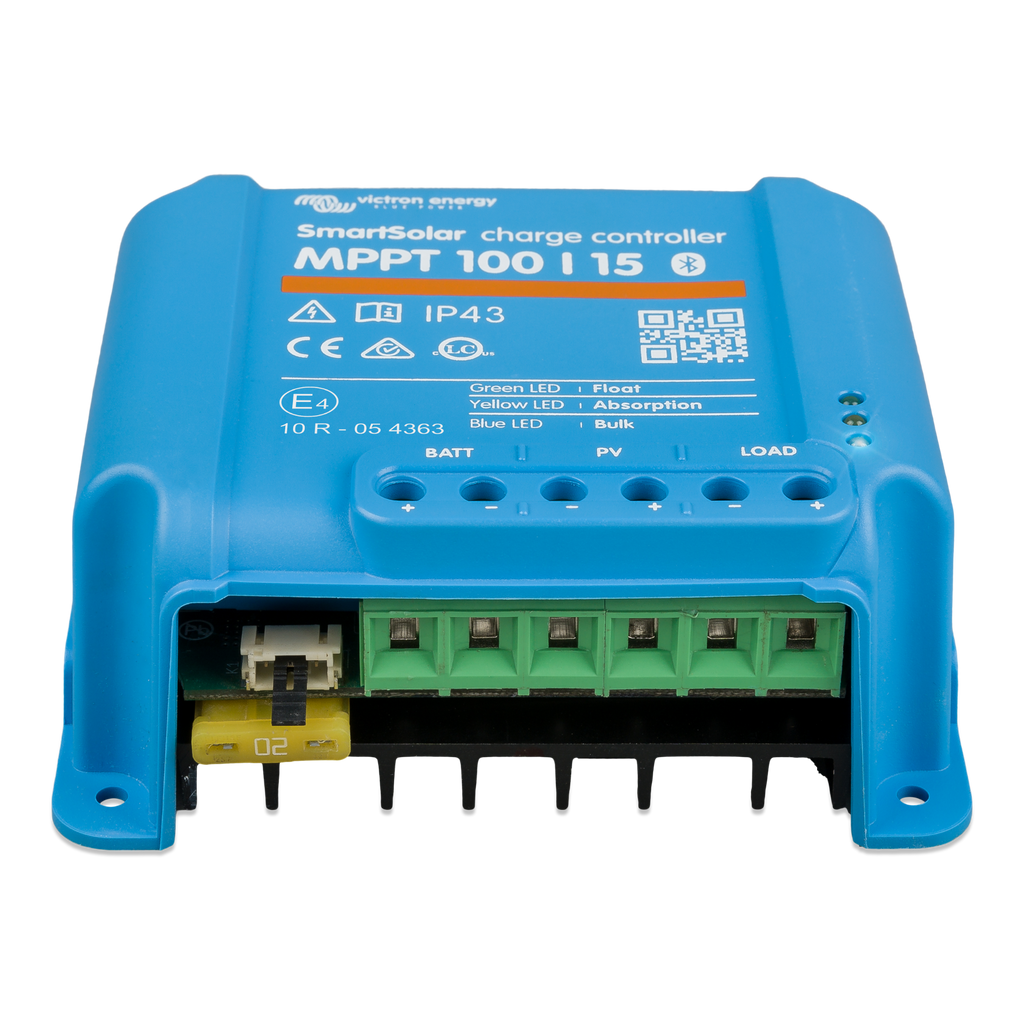

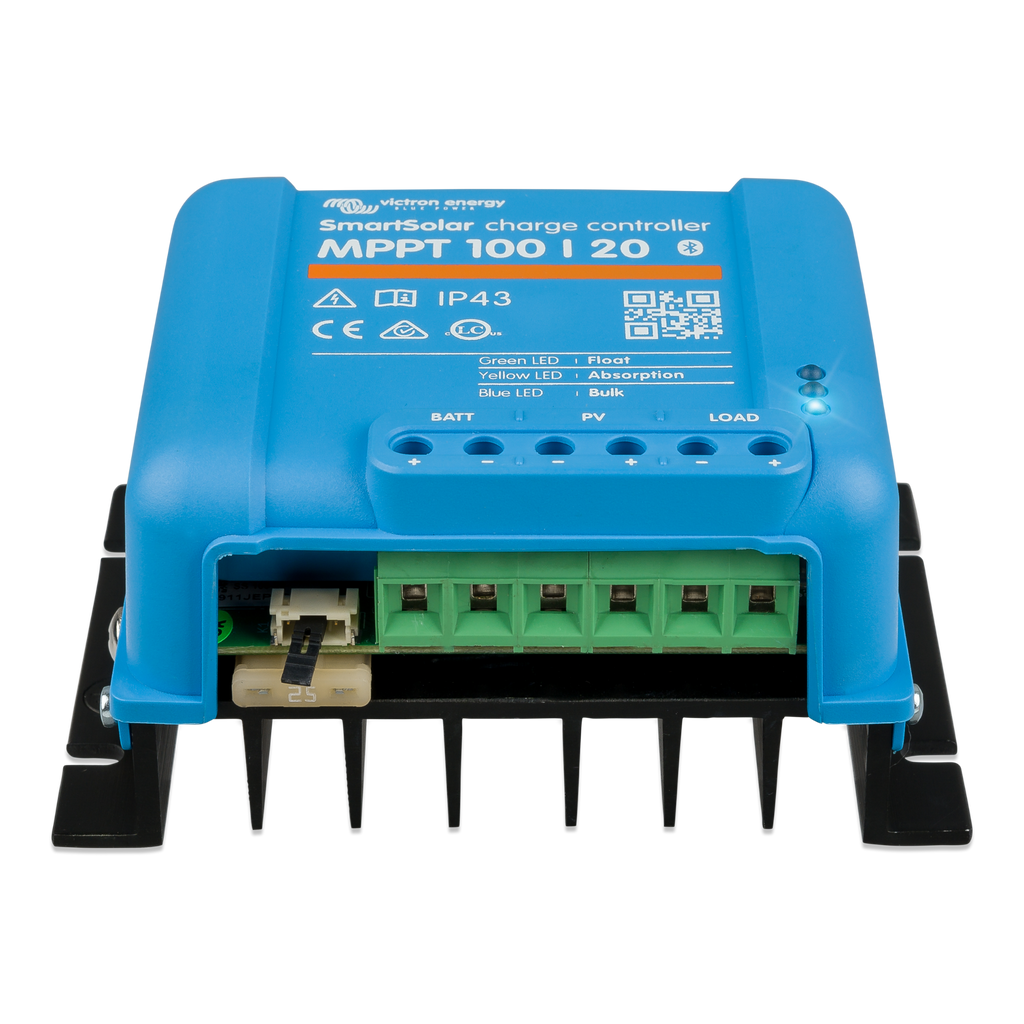

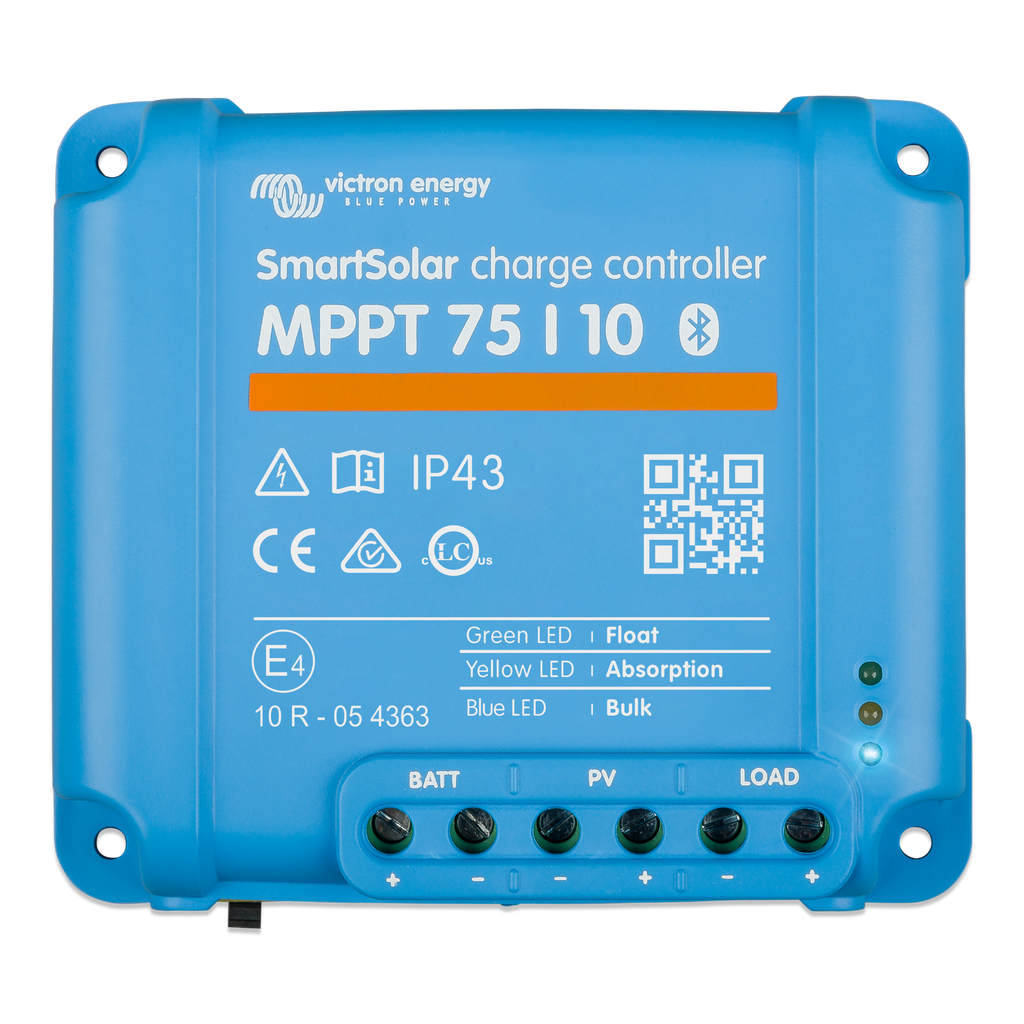

SmartSolar MPPT Solar Charge Controller 75/10 - 100/20

75/10

$65.45

SmartSolar MPPT Solar Charge Controller 75/10 - 100/20

SCC075010060R

The Victron Energy SmartSolar MPPT Charge Controller uses advanced maximum power point tracking technology to maximize solar energy harvest and efficiently charge your batteries. With up to 98% efficiency and ultra-fast MPPT response, it converts more available sunlight into usable power while optimizing battery performance and extending battery life.

Engineered for durability, the SmartSolar MPPT features natural cooling and built-in protections against over-temperature, short circuits, and reverse polarity. Its intelligent charging algorithms ensure safe, reliable operation across a wide range of solar applications, making it ideal for RV, marine, and off-grid systems. Available in 75/10, 75/15, 100/15, and 100/20-48V models to suit a variety of system sizes and power requirements.

$65.45

Model 75/10 100/15 100/20-48V 75/10 75/15

Bluetooth Smart Built-In: The wireless solution to set-up, monitor, update and synchronize SmartSolar Charge Controllers.VE.Direct: For a wired data connection to a Color Control GX, other GX products, PC or other devices.Ultra-Fast Maximum Power Point Tracking (MPPT): Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.Load Output: Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48 V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.Battery Life (Intelligent Battery Management): When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100 % recharge is achieved about once every week.Internal Temperature Sensor: Compensates absorption and float charge voltage for temperature.Optional External Battery Voltage & Temperature Sensing via Bluetooth: A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.Fully Discharged Battery Recovery Function: Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.
