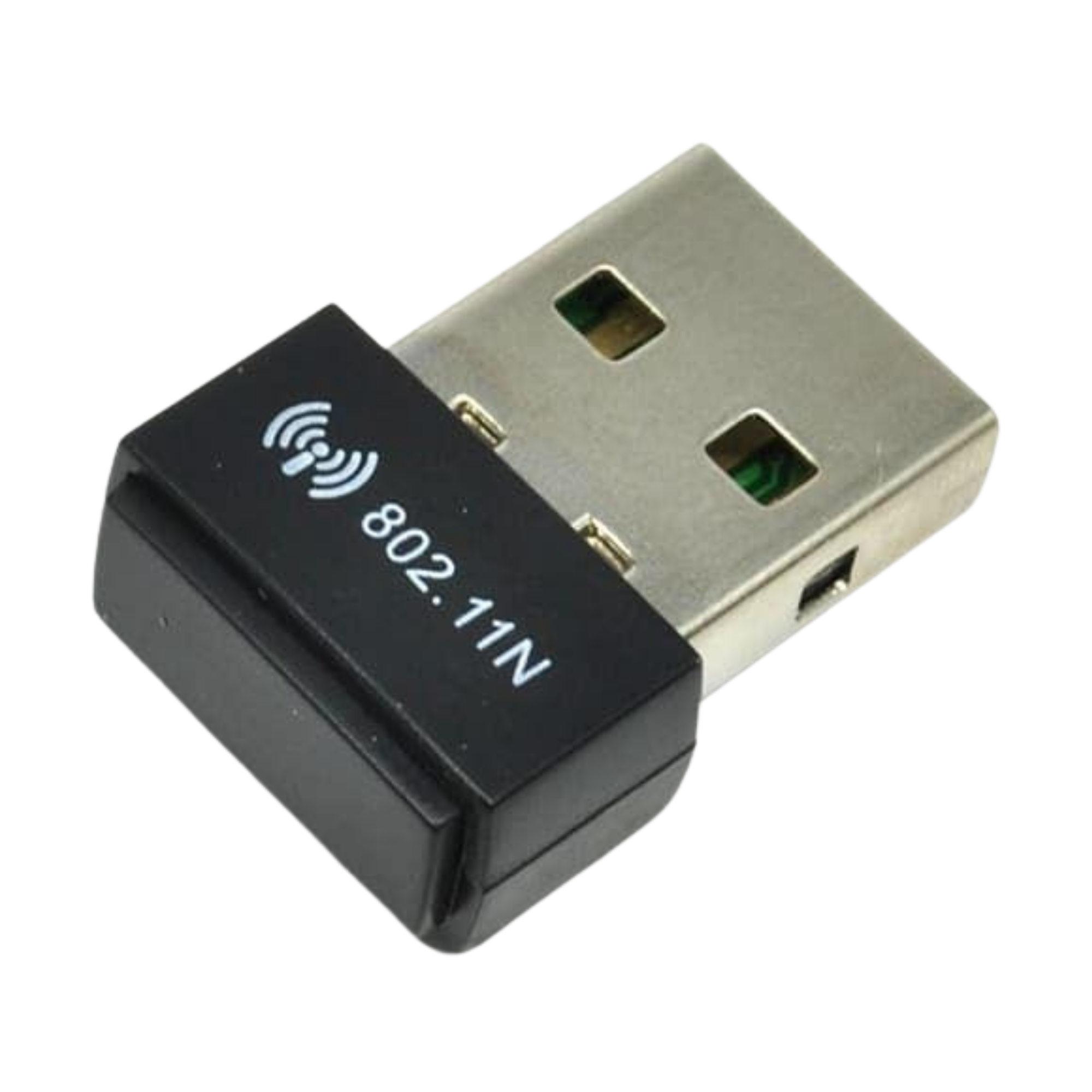

CCGX WiFi Nano USB Module Simple

Color Control GX
Power supply voltage range
9 – 70 V DC
Current draw
12 V DC
24 V DC
48 V DC
Switched off
0 mA
0 mA
0 mA
Display off
140 mA
80 mA
40 mA
Display at minimum intensity
160 mA
90 mA
45 mA
Display at maximum intensity
245 mA
125 mA
65 mA
Potential free contact
3A / 30V DC / 250V AC(Normally open)
Communication Ports
VE.Direct
2 separate VE.Direct ports–isolated
VE.Can
2 paralleled RJ45 sockets–isolated
VE.Bus
2 paralleled RJ45 sockets–isolated
USB
USB Host ports–not isolated
Ethernet
10/100/1000MB RJ45 socket–isolated except shield
3rd Party Interfacing
Modbus-TCP
Use Modbus-TCP to monitor and control all products connected to the Color Control GX
JSON
Use the VRM JSON API to retrieve data from the VRM Portal
Other
Outer dimensions (h x b x d)
130 x 120 x 28 mm
Operating temperature range
-20 to +50 °C
