Name: MultiPlus 12/3000/120-50 120V (UL 1741 & 458)
Brand: Victron Energy
SKU: PMP122301102
Price: 1168.75 USD
Availability: InStock

MultiPlus 12/3000/120-50 120V (UL 1741 & 458)

$1,168.75

MultiPlus 12/3000/120-50 120V (UL 1741 & 458)

PMP122301102

The Victron Energy MultiPlus 12/3000/120-50 120V (UL 1741 & 458) is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.

$1,168.75

Complete Power Management

The Victron Energy MultiPlus 12/3000/120-50 120V is a fully integrated inverter/charger designed for RV, marine, and off-grid power systems. Combining a true sine wave inverter with adaptive charging and hybrid PowerAssist technology, it manages power delivery across loads and batteries while preventing overloads on limited shore or generator sources. Its fast-switching inverter also provides uninterrupted AC power during outages, ensuring critical devices continue to operate without disruption.

Key Advantages

Victron Energy® Blue Power

Power system components engineered to professional-grade standards and designed for continuous operation in the most demanding conditions and environments.

Seamless System Integration

Built to integrate with your setup, enabling centralized monitoring, complete system control, and clean system scaling opportunities as your power needs grow.

Power System Essentials

Victron Energy components are trusted in off-grid power systems worldwide, backed by a 5-year warranty and 50+ years of engineering excellence and quality manufacturing.

Common Applications

Marine

Off-Grid

Fleet

Industrial

Uninterrupted AC Power (UPS Function)

During a grid failure or when shore/generator power is disconnected, the inverter automatically takes over in less than 20 milliseconds, ensuring uninterrupted operation of connected loads and sensitive electronics.

Parallel Three-Phase Operation

Up to six units can operate in parallel to increase total power output, with support for split-phase or three-phase configurations depending on model compatibility.

Backed by U.S.-Based Customer & Technical Support Teams

Our in-house sales and technical support teams are ready to help you with system design questions, installation support, and more. Get in touch with our team today to learn more.

SPECIFICATIONS
PowerControl	Yes
PowerAssist	Yes
Transfer switch (A)	50
Parallel and 3-phase operation	Yes

INVERTER
Input voltage range (VDC)	9.5 – 17 V, 19 – 33 V
Output	Output voltage: 120 VAC ± 2 %, Frequency: 60 Hz ± 0,1 %
Cont. output power at 25°C / 77°F (VA)	3000
Cont. output power at 25°C / 77°F (W)	2400
Cont. output power at 40°C / 104°F (W)	2200
Cont. output power at 65°C / 150°F (W)	1700
Peak power (W)	6000
Maximum efficiency (%)	93 / 94
Zero load power (W)	20 / 20
Zero load power in AES mode (W)	15 / 15
Zero load power in Search mode (W)	8 / 10

CHARGER
AC Input	Input voltage range: 95-140 VAC, Input frequency: 45 – 65 Hz, Power factor: 1
Charge voltage 'absorption' (VDC)	14.4 / 28.8
Charge voltage 'float' (VDC)	13.8 / 27.6
Storage mode (VDC)	13.2 / 26.4
Charge current house battery (A)	120 / 70
Charge current starter battery (A)	4
Battery temperature sensor	Yes

GENERAL
Auxiliary output	Yes (32 A)
Programmable relay	Yes (3x)
Protection	a - g
VE.Bus communication port	For parallel and three phase operation, remote monitoring and system integration
General purpose com. Port	Yes (2x)
Remote on-off	Yes
Common Characteristics	Operating temp. range: -40 - +65 °C / -40 to 150 °F (fan assisted cooling), Humidity (non-condensing): max 95%

ENCLOSURE
Common Characteristics	Material & Colour: aluminium (blue RAL 5012), Protection category: IP 21
Battery-connection	M8 bolts (2 plus and 2 minus connections)
120 V AC-connection	Screw-terminal 6 AWG (13mm²)
Weight	40 lbs

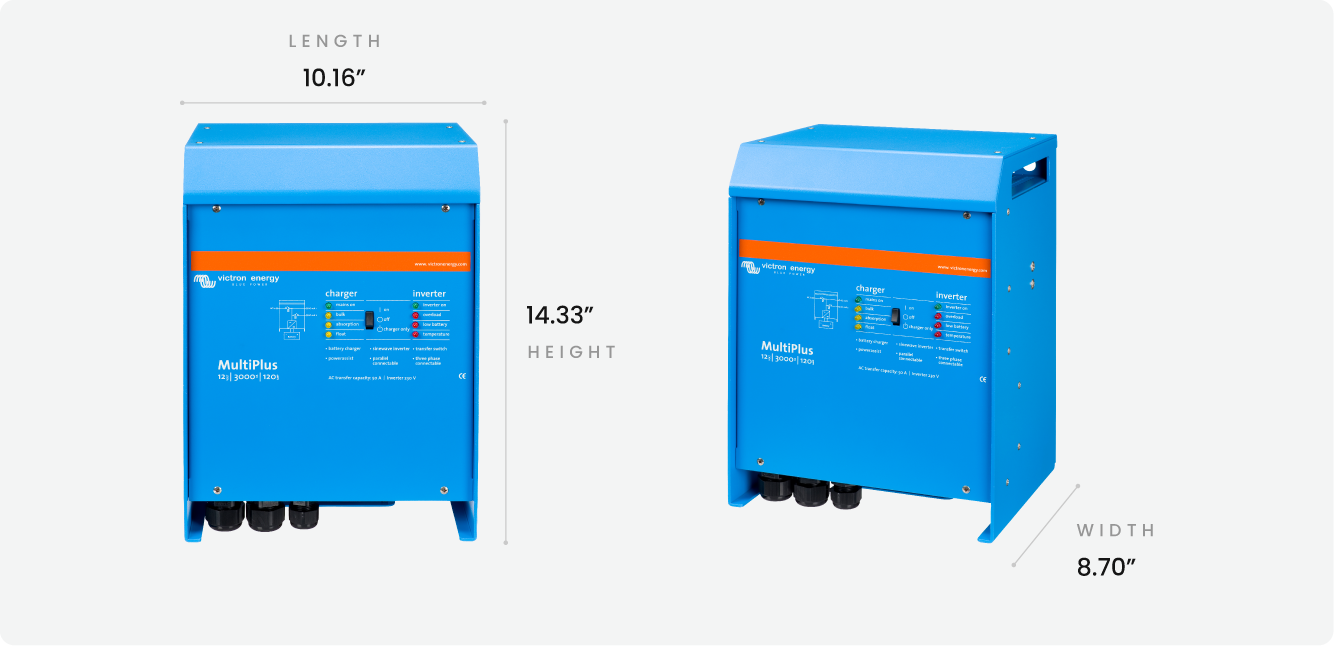

Dimensions (hxwxd in mm and inches)	14.3 x 10.2 x 8.6 in
