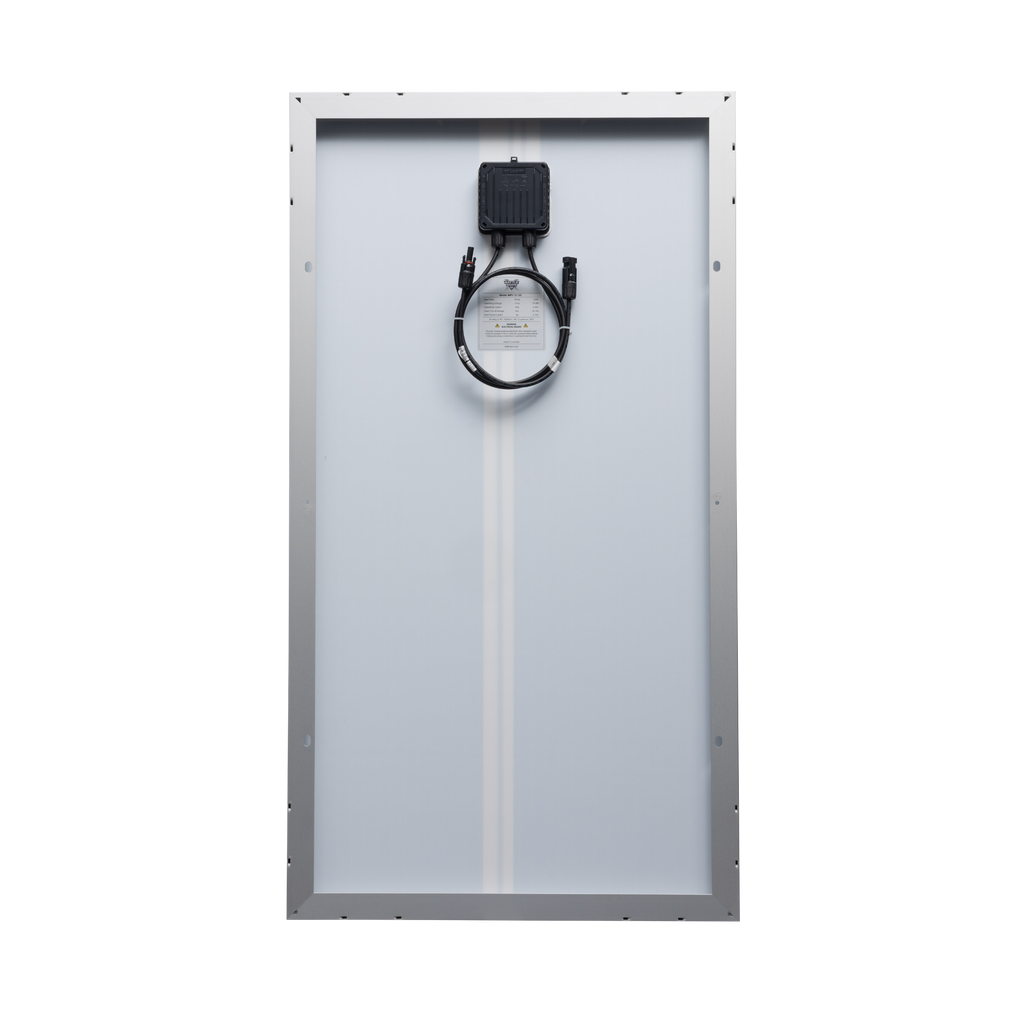

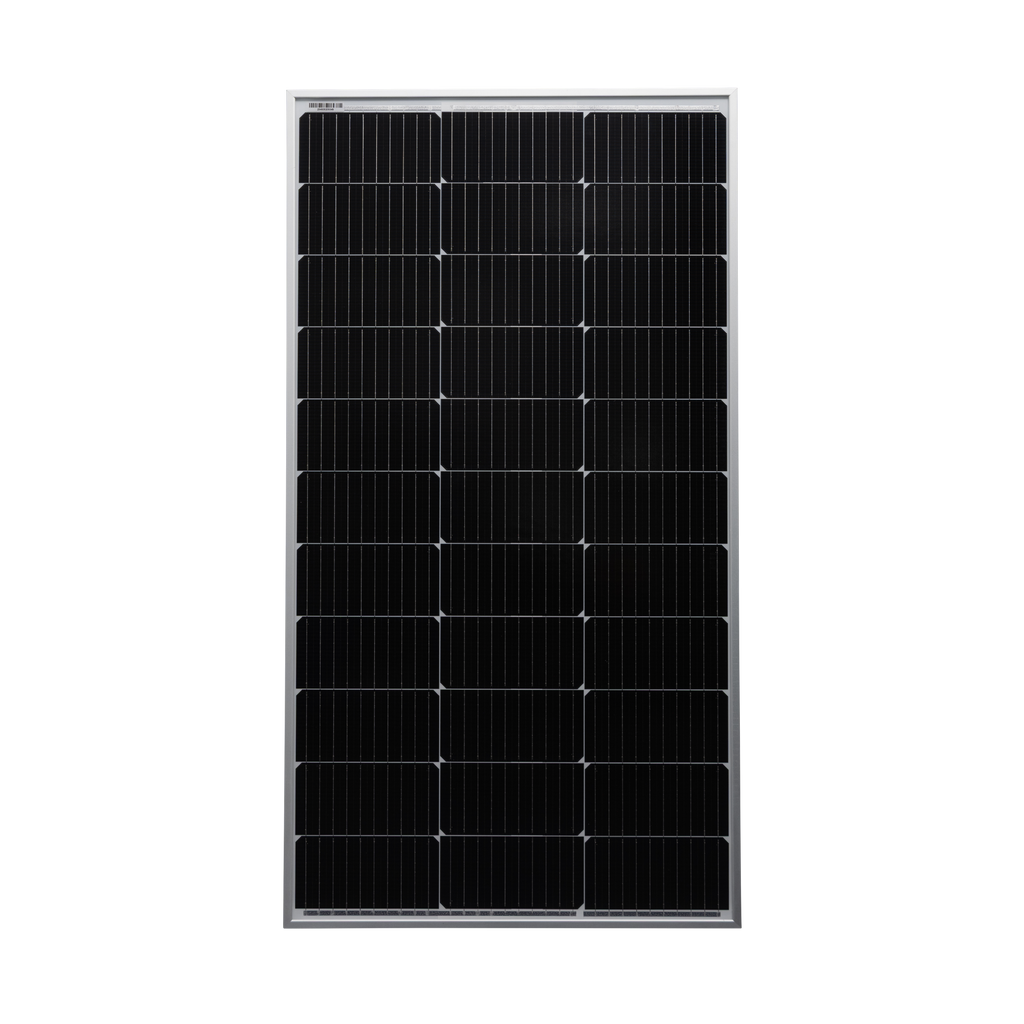

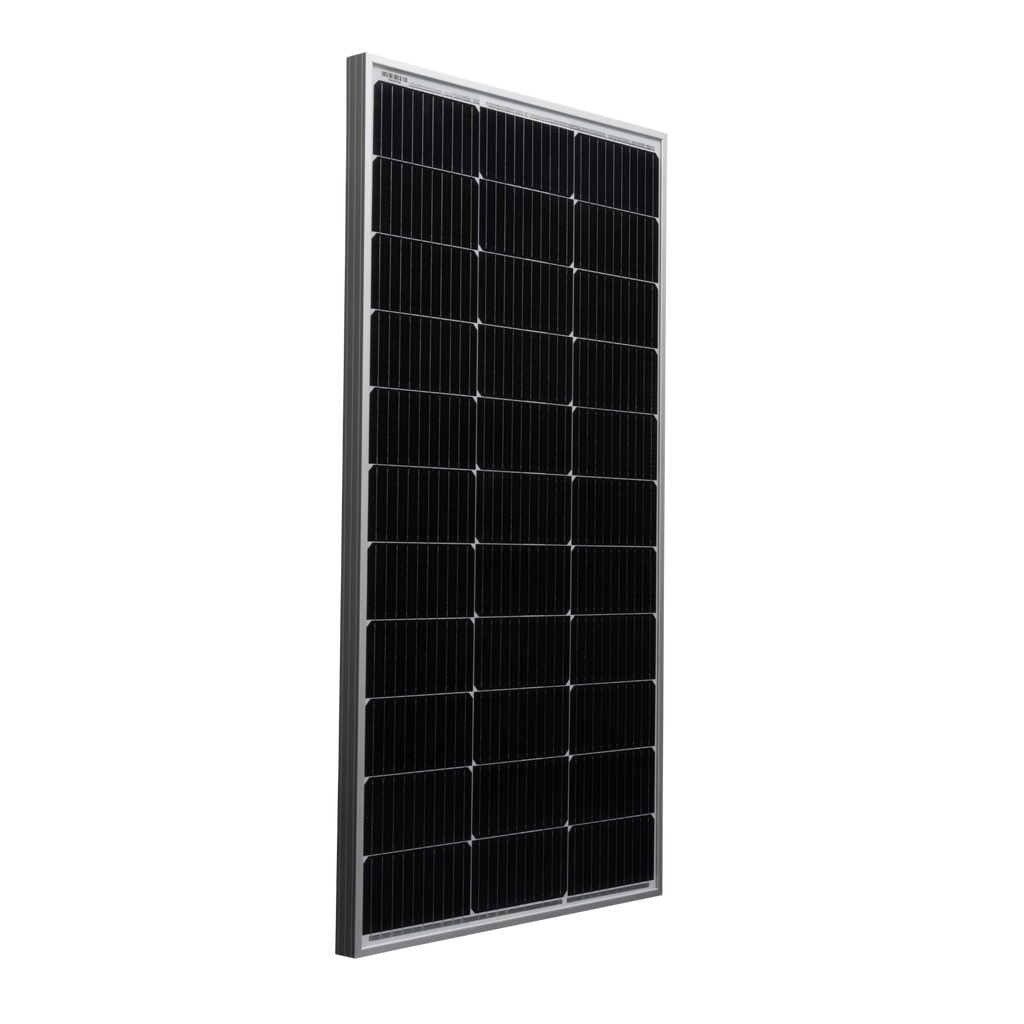

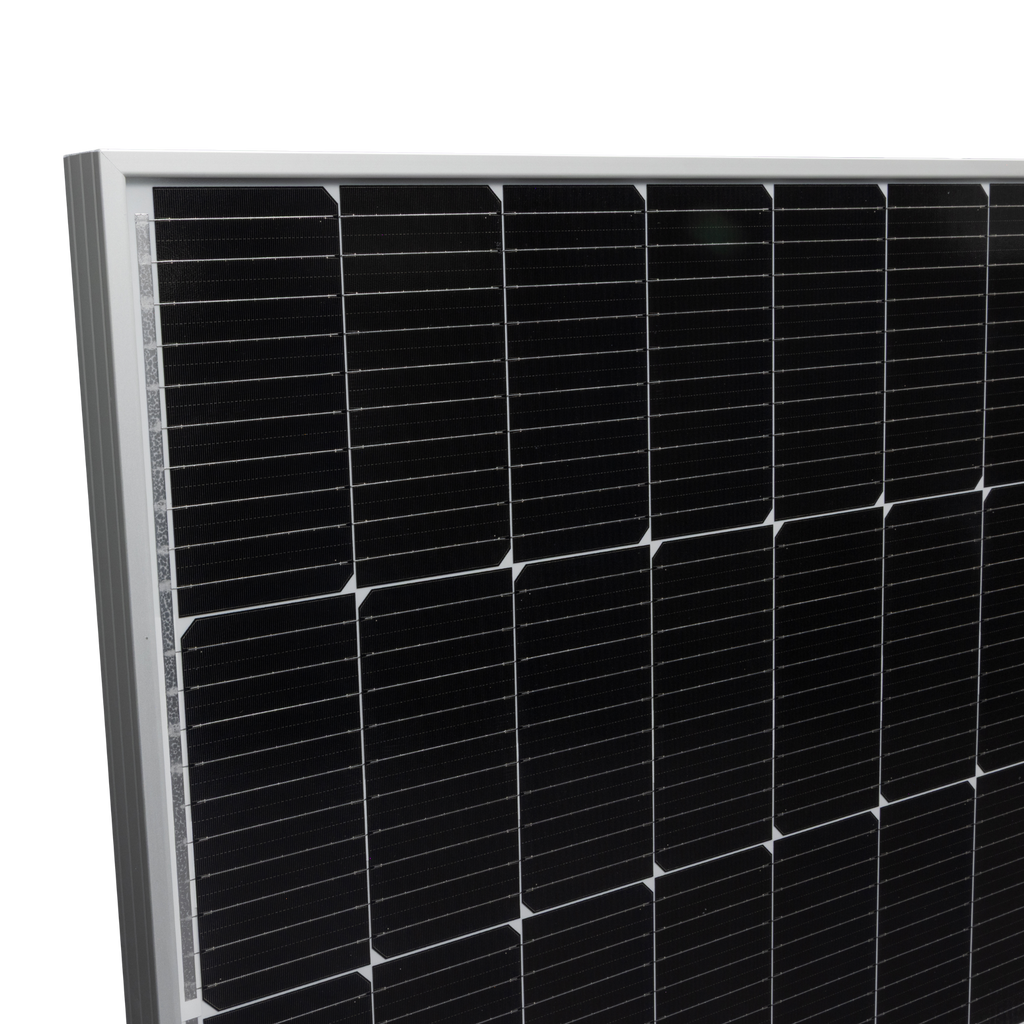

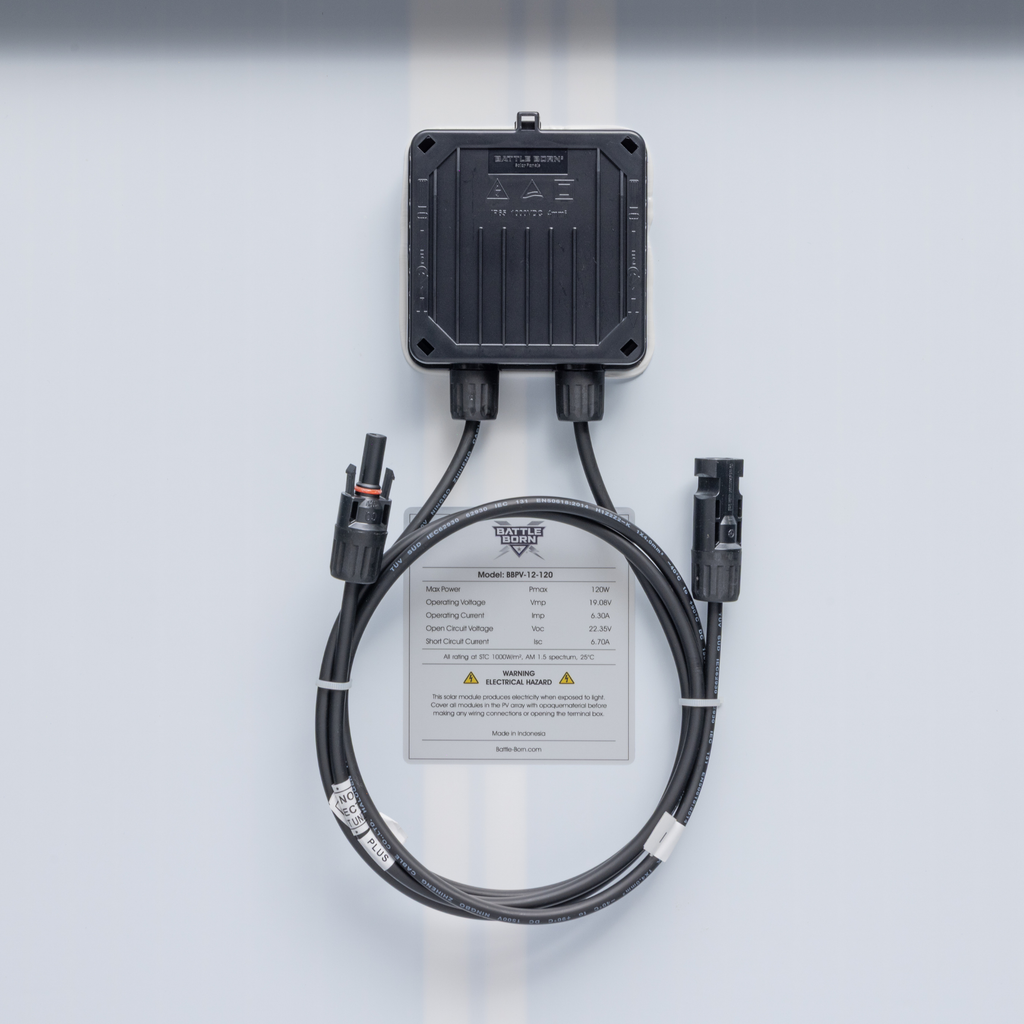

Battle Born Elite 120W 12V Rigid Solar Panel
The Battle Born Elite 120W 12V Rigid Solar Panel delivers reliable solar power in a compact, high-efficiency design optimized for installations where space is limited. Built with advanced monocrystalline solar cells and Battle Born ShadeGuard™ anti-shading technology, it maintains strong output even in partial shade and changing light conditions.

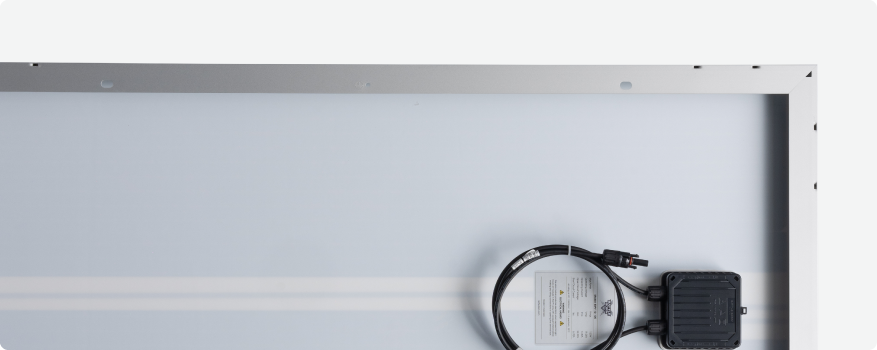

Constructed with a rigid anodized aluminum frame and tempered glass, the Battle Born Elite 120W 12V Rigid Solar Panel is built to deliver dependable solar performance in demanding environments.

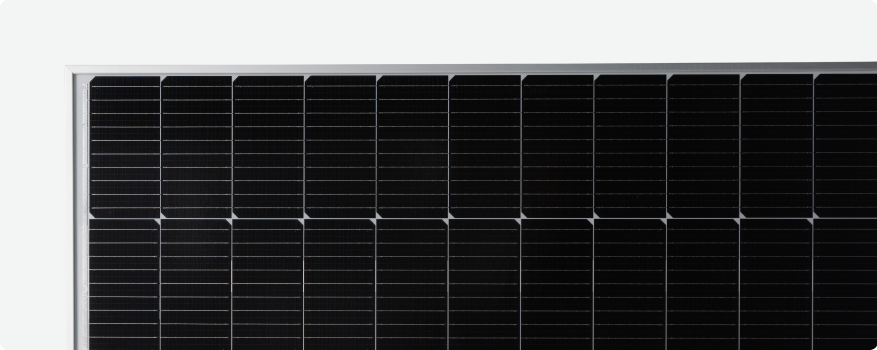

Key Advantages
Common Applications

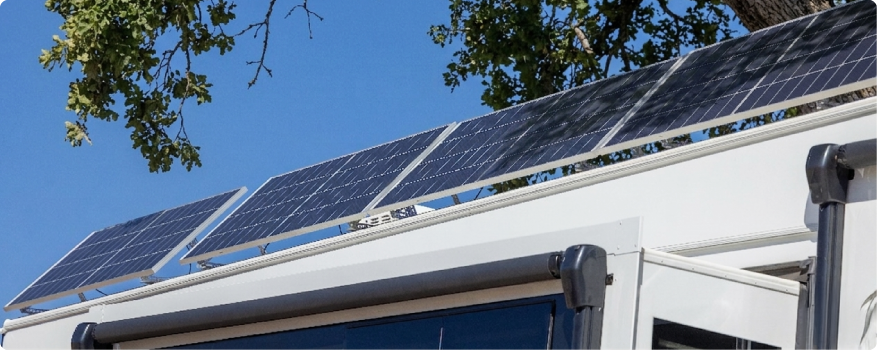

RV
Marine
Off-Grid
Fleet
Industrial

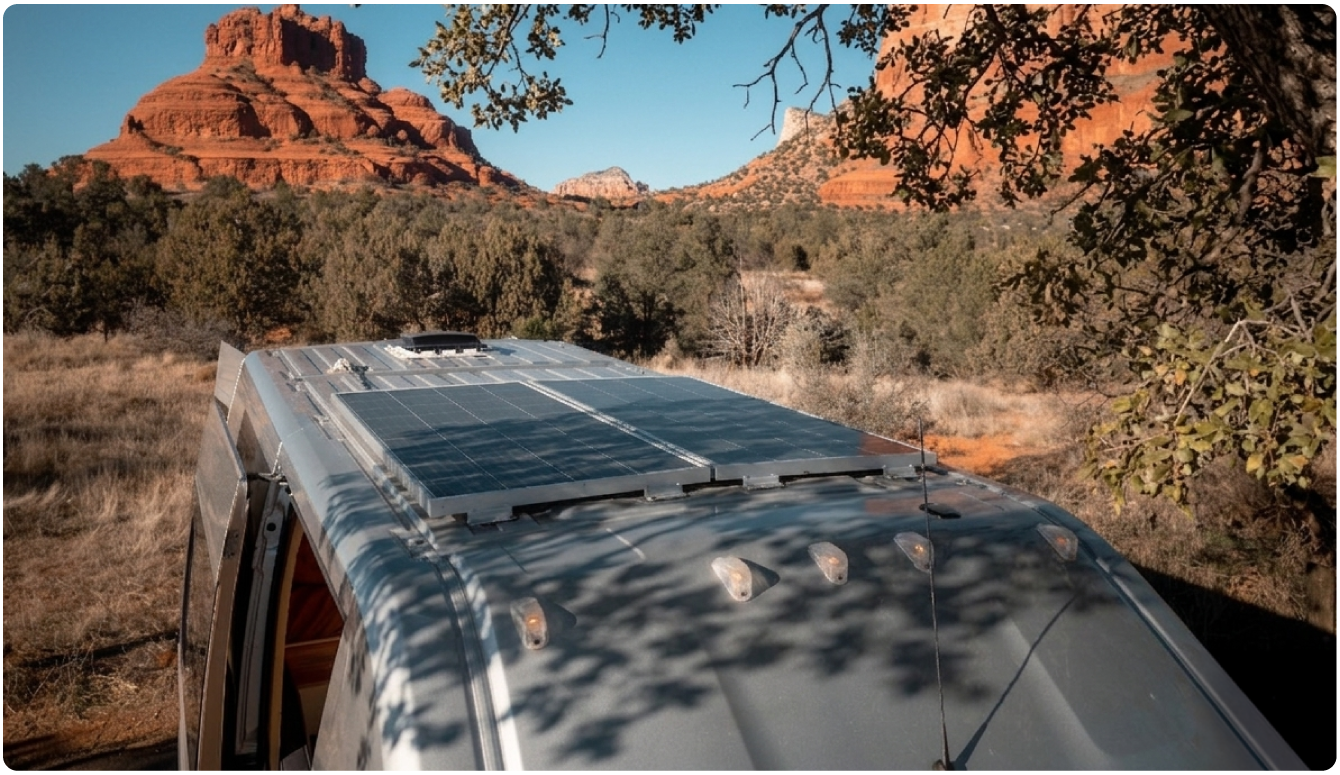

Flexible System Integration
Designed for 12V systems and compatible with standard solar charge controllers, making it easy to integrate into new or existing setups.
Built for Real-World Performance
The Battle Born Elite 120W 12V Rigid Solar Panel delivers stable performance across changing conditions. With high-efficiency cells and ShadeGuard™ technology, it helps ensure reliable solar production in everyday use.
Built for Real-World Performance
The Battle Born Elite 120W 12V Rigid Solar Panel delivers stable performance across changing conditions. With high-efficiency cells and ShadeGuard™ technology, it helps ensure reliable solar production in everyday use.
| Specifications | |
|---|---|
| Cells | Monocrystalline Silicon Solar Cell |
| Number of Cells & Connections | 33 (3 x 11) |
| Maximum Power (Pmax) | 120W |
| Voltage at Pmax (Vmp) | 19.08V |
| Current at Pmax (Imp) | 6.30A |
| Open-Circuit Voltage (Voc) | 22.35V |
| Short-Circuit Current (Isc) | 6.70A |
| Temperature Coefficient of Voc | -(80±10)mV/°C |
| Temperature Coefficient of Isc | (0.065±0.015)%/°C |
| Temperature Coefficient of Power | -(0.5±0.05)%/°C |
| NOCT (Air 20°C; Sun 0.8kW/m² Wind 1m/s) | 47±2°C*NOCT (Nominal operating cell temperature - the data is only for reference) |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Maximum System Voltage | 1000V DC |
| Power Tolerance | ± 5% |

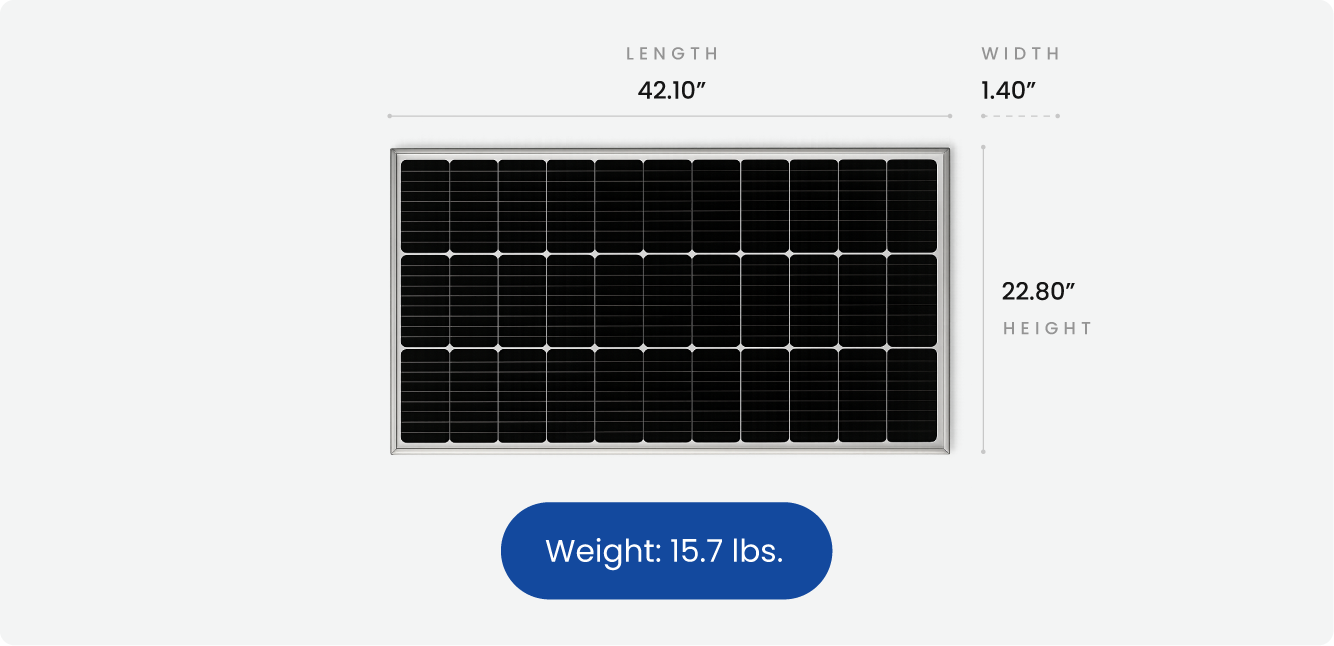

| Dimensions | |
|---|---|
| Length | 42.13 in |
| Width | 22.83 in |
| Height | 1.38 in |
| Weight | 15.65 lb |
| Packing Information (Carton) | |
|---|---|
| Length | 43.90 in |
| Width | 24.61 in |
| Height | 2.76 in |
