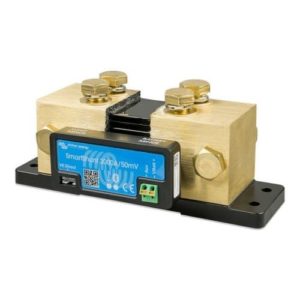

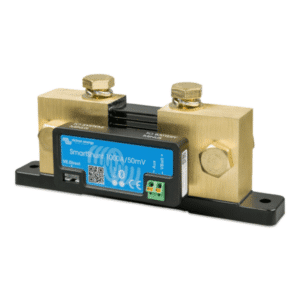

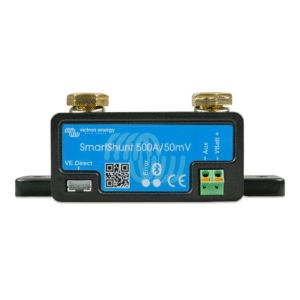

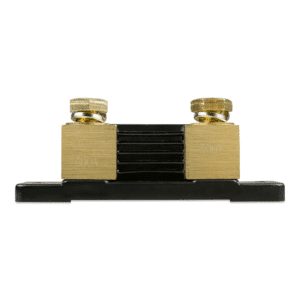

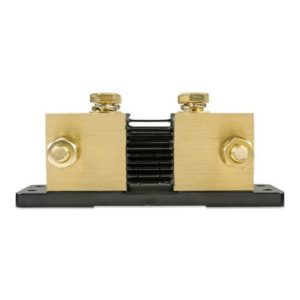

SmartShunt Battery Shunts

$111.35$250.75

Victron Energy’s SmartShunts are an all-in-one battery monitor, only without a display – your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Select Options

-

SKU: N/A Categories: ,

Description

A GX device can connect to and read the SmartShunt. The connection to the SmartShunt is made via a VE direct cable.

The SmartShunt is a good alternative to a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is desired. It is equipped with Bluetooth, a VE.Direct port, and a connection that can be used for monitoring a second battery, midpoint monitoring, or a temperature sensor.

Features

  • Supply Voltage Range: 6.5 – 70 VDC
  • Current Draw: < 1mA
  • Input Voltage Range, Auxiliary Battery: 6.5 – 70 VDC
  • Battery Capacity (Ah): 1 – 9999 Ah
  • Operating Temperature Range: -40°C to 50°C (-40°F to 120°F)
  • Measures Voltage of Second Battery, Temperature, or Midpoint: Yes
  • Temperature Measurement Range: -20°C to 50°C
  • VE.Direct Communication Port: Yes

Additional information

Dimensions 2.7 × 6.6 × 3.9 in
Amps

2000A/50mV, 1000A/50mV, 500A/50mV

SmartShunt Manual

Document
