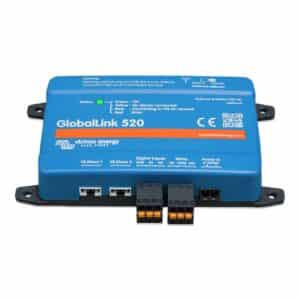

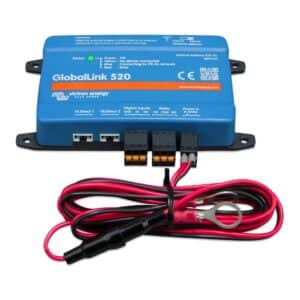

GlobalLink 520

GlobalLink 520 Monitoring Device

$216.75

-

ASS030543020

Maintain and operate your off-grid energy storage system with clear insight into your installation. The Victron Energy GlobalLink 520 monitoring device brings 4G LTE-M connectivity to all VE.Direct-enabled devices.

  • System Monitoring & Control: The GlobalLink 520 comes with (2) communication ports, allowing for connection of up to two VE.Direct devices, such as a BMV Battery Monitor and/or a MPPT Solar Charge Controller directly to VRM. (2) digital inputs  also act as pulse counters and a remote controllable relay, making the GlobalLink 520 a perfect solution to monitor and control your installation.
  • Built-In Antenna: The GlobalLink 520 comes with a built-in antenna that is designed to work around the globe. If you require better reception or want to install your module in a utility van, it is also possible to mount an external antenna.
  • Victron Remote Management: The online Victron Remote Management (VRM) portal provides you with access to your installation, from anywhere and at any time. In VRM, users are able to check the status of connected products, view detailed history graphs of energy, generate detailed analytical reports, and even configure automatic alarms in the case that something goes wrong.

Resources

Need Help?

Ask a technical specialist now at 855.292.2831

You Might Also Like

You may also like…

Product Features

GlobalLink 520 Monitoring Device
GlobalLink 520 Monitoring Device
GlobalLink 520 Monitoring Device

Features

Smart Device & VE.Direct Support: Connect up to 10 Victron smart products using BLE and two hard wired VE.Direct devices.

VRM-Monitoring: Monitor battery state of charge, power consumption, power harvest from PV, generator and grid or check temperature measurements. Follow up on alerts and perform diagnostics checks.

RuuviTag Support: These sensors connect via BLE and are easy to setup via VictronConnect. All the data, like temperature, humidity and atmospheric pressure will be directly available in VRM.

Support for Custom SIM Cards

Simple Mounting & Configuration: The GlobalLink 520 is wall mountable. The Bluetooth feature enables a quick connection and easy configuration via our VictronConnect app.

Documentation

Victron_Documents
Download product documentation that you might find helpful for the GlobalLink 520, including Manuals, Cutsheets, Data Sheets, Installation Guides, and more.
GlobalLink 520 Manual

Check the list in our GlobalLink 520 manual to see if LTE-M is officially confirmed to be available in your area. Coverage is increasing every week as local providers roll out support. Your purchase includes 5 years of connectivity, so there is no need to worry about purchasing a separate data bundle and SIM-card.

Document

VictronConnect App

Monitor, configure, manage, and update your Victron Energy equipment with the VictronConnect App. Victron Smart products connect to the app through Bluetooth, USB, WiFi, LAN, or remotely via the internet.

AppleStore
GooglePlay
WindowsStore
For more information, download the VictronConnect Manual.
Victron Energy app

Technical Support

Have questions about whether the GlobalLink 520 is suitable for your power system? Battle Born Batteries’ Technical Sales Specialists are here to provide system consultations and support, answer questions, help you place an order, and more.
