100Ah 12V GC2 LiFePO4 Heated Battery Kit

Features

Internal Heat Technology:

• Proprietary internal heating capabilities
• Operating Temp Range:-4°F to 135°F
• Heat activated when internal temperature reaches ~35°F (and heat function is enabled)

Specifications:

• Voltage: 12V
• Capacity: 100Ah
• Ah PbEq: 200Ah
  • * Ah PbEq is based on the equivalent usable amp-hour compared to a lead acid system.
• Self Discharge: 2-3% per Month
• Maximum Series Voltage: 48V
• Cycle Life: 3,000-5,000
• Resistance: 12 mΩ
• Usable Depth of Discharge: 100%

Accepted Voltages:

• Charging voltage: 14.2 – 14.6 V
• Float voltage: 13.4 – 13.8 V

Dimensions (L x W x H):

• 10.31 x 7.28 x 11.02 in.

Ships With:

• 18-8 stainless steel 5/16 – 18 1” and 1-1/4” bolts
• Brass washers
• 18-8 stainless steel nuts with nylon inserts

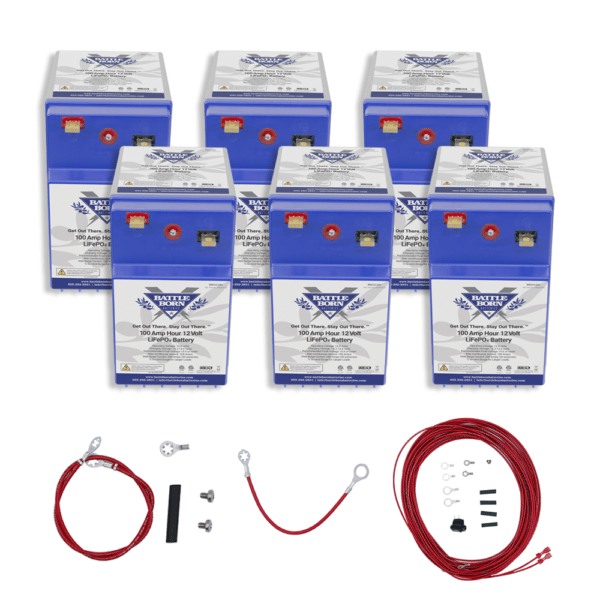

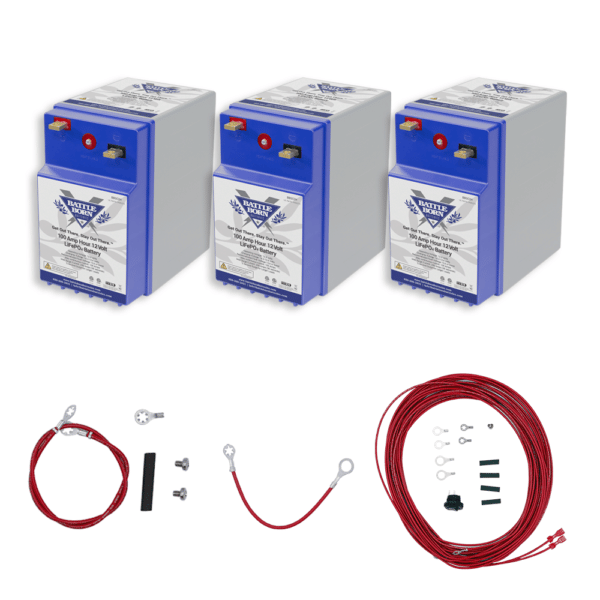

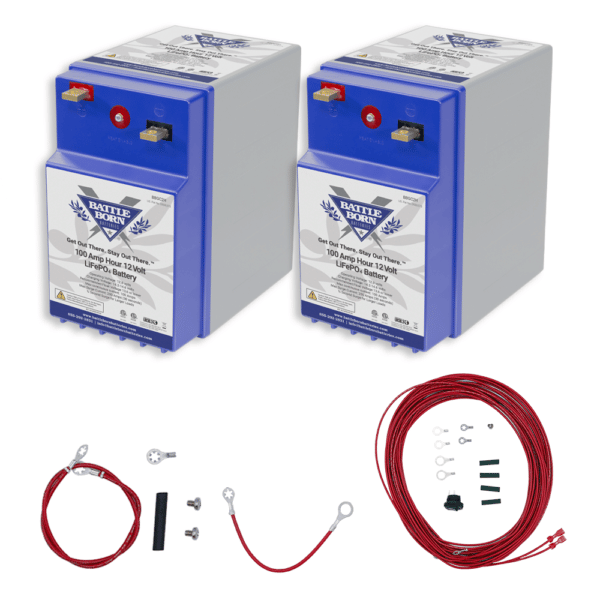

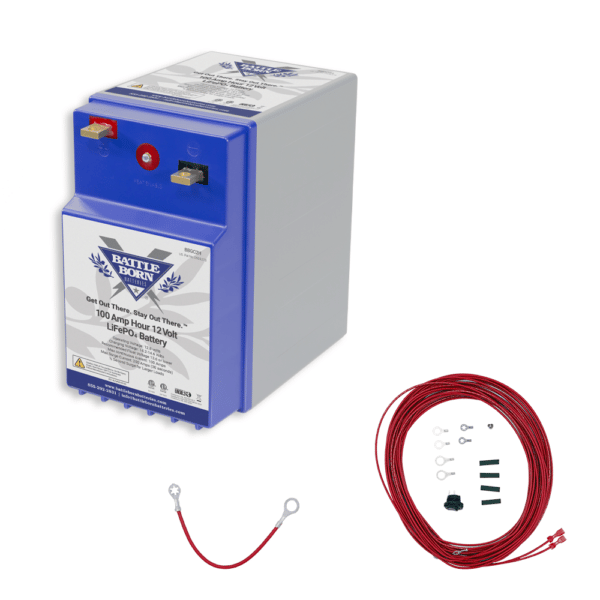

Items in Each Heated Battery Kit Include:

• 1 -SPST Rocker Switch
• 1 -25’ 18 AWG wire terminated with 0.187 QD and #8 ring lug
• 1 -25’ 18 AWG wire terminated with 0.187 QD and 5/16 ring lug
• 1 – Jumper wire (For use if you are installing more than one heat-enabled battery model):
  • 1 -14-inch 18 AWG wire terminated with two #8 ring lugs
  • 2 -M4 x 5mm long Philip head screws
  • 1 -#8 ring lug
  • 1 -1-inch piece of shrink wrap

Please Note: A CSL is required for use with inverters 3500W or higher.
