Setting a Victron Multiplus Compact with Battle Born LiFePO4 Batteries

Click here to read and watch our video on how to configure a Victron Multiplus Compact with our Battle Born LiFePO4 batteries.

October 02, 2017

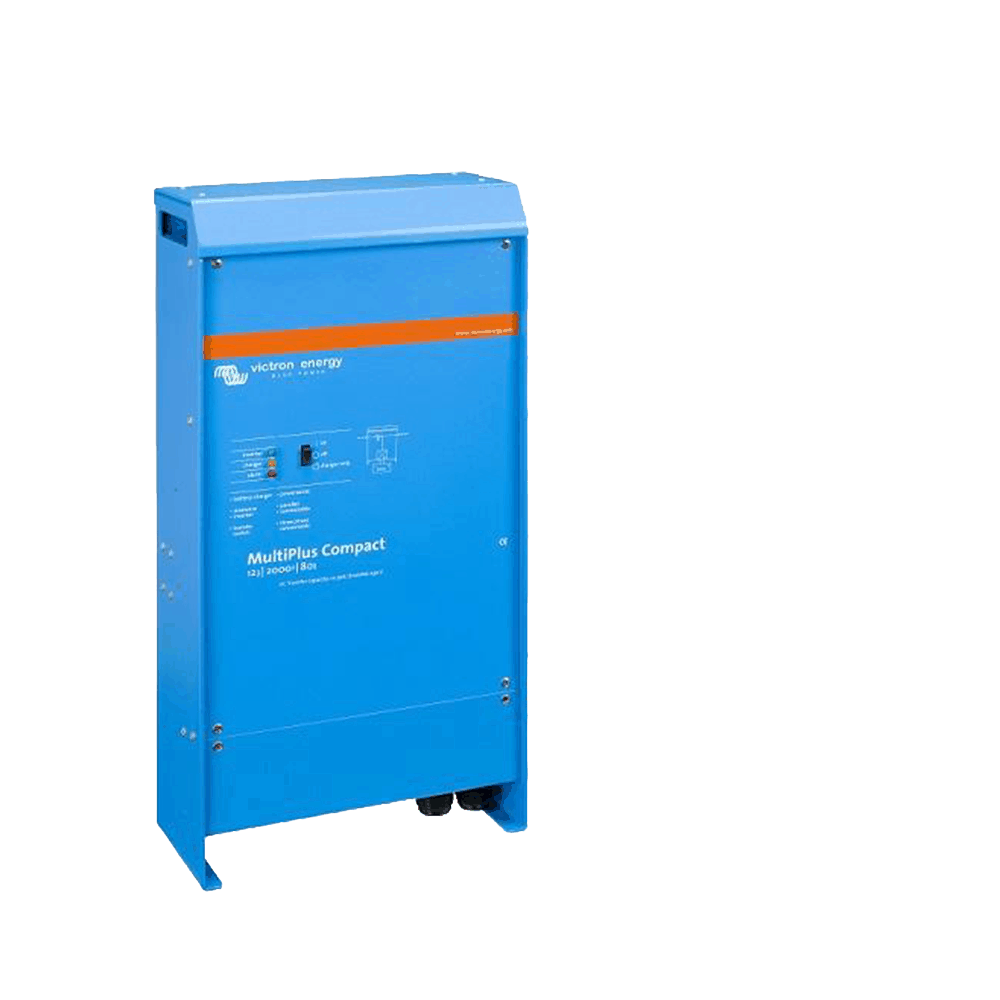

quattro|2000w

https://youtu.be/iX5KO-oLrnc

The above video walks you through how to properly configure a Victron Multiplus Compact with Battle Born LiFePO4 batteries.

Parts Needed:

Battle Born Battery with Cables

Ethernet Cable - little pointer break off the RJ45 hold in tab, its a bear to remove this cable from the inverter after programming once its locked in place.

MK3 to USB adapter

Computer with Victron VE Configure software

Settings we set up are as follows: Inverter Tab

DC Low Voltage Input Shutdown: 11.5 volts

Charger Tab

Check box "Lithium Batteries" On the sub screen select "Lithium Iron Phosphate"
Absorption: 14.6 volts (acceptable range 14.4 to 14.6 volts)
Float: 13.5 volts (13.6 or lower float is acceptable)
Charge Current: 80 amps
Absorption time: 0.5 hours per 100 Ah battery

Also, we are more than happy to program any charge controller that you purchase from us.

If anything is unclear or if you have additional questions, please give us a call at (855) 292-2831 or email us at info@battlebornbatteries.com. We are happy to help!
