Can You Add More Solar Panels to an Existing RV System?

An RV solar system that worked perfectly when it was first installed may not always keep up with the way you use your RV today. Maybe you've added a residential refrigerator, started working from the road, increased your battery capacity, or simply spend more time boondocking than you used to. We have seen our customers do all of these things.

If your batteries regularly end the day lower than you'd like, adding more solar may be one way to improve your system without increasing generator runtime.

In most cases, you can add more solar panels to an existing RV solar system. The bigger question is how you should add them.

There are two primary ways to expand an RV solar system:

1. Add panels to the existing solar array and charge controller.

2. Build a separate solar array with its own charge controller.

Both approaches can work well. Which one makes sense depends on your existing panels, available charge controller capacity, wiring, roof space, and the type of panels you want to add.

Let's look at both options and what you need to consider before buying more solar panels.

TL;DR

• Yes, you can usually add more solar panels to an existing RV system. You can either expand the array already connected to your charge controller or install a second, independent solar array with its own controller.

• Expanding the existing array is simplest when your charge controller has available capacity and the new panels are electrically compatible with the panels you already have.

• A second solar charge controller offers more flexibility if your existing controller is full, the new panels have different voltage or current characteristics, or different parts of the roof experience different shading.

• Multiple solar charge controllers can charge the same battery bank as long as each is properly installed and configured for the battery system.

• Before adding panels, check your energy needs, charge controller limits, series/parallel configuration, wiring and circuit protection, and available roof space.

👉 Explore Battle Born solar panels, charge controllers, and accessories.

Table of Contents

• Why Add More Solar Panels to Your RV?
• Step 1: How Much More Solar You Actually Need
• Step 2: Make Sure You Have Room for More Panels
• Step 3: Choose How to Add More Solar Panels to an Existing RV System
• Option 1: Add More Panels to Your Existing Solar Array
  • Check the Capacity of Your Existing Solar Charge Controller
  • Decide Whether the New Panels Will Be Wired in Series or Parallel
  • Make Sure the New Solar Panels Are Electrically Compatible
  • Check the Existing Solar Wiring and Circuit Protection
• Option 2: Add a Second Solar Array and Charge Controller
  • Can You Have Two Solar Charge Controllers on One Battery Bank?
  • Why Add a Second Solar Charge Controller?
  • Is a Second Charge Controller Always Better?
• What About Adding Portable Solar?
• Should You Add More Battery Capacity When You Add More Solar?
• Expand Your RV Solar System With Confidence

Why Add More Solar Panels to Your RV?

Your RV's original solar system may have been sized for very different power needs.

Factory-installed solar packages, in particular, may provide enough energy to maintain batteries or support basic electrical use without being designed around extended off-grid camping. Your needs can also change as you spend more time with the RV and learn how much power you actually use.

You may want to add solar panels to your RV if:

• Your batteries aren't fully recharging during a typical sunny day

• You've added more battery capacity

• You're using more electrical appliances

• You spend more time camping without hookups

• You want to reduce generator runtime

• You added loads such as a residential refrigerator or additional electronics

• You want more charging capability during shorter winter days or less-than-ideal solar conditions

Adding more panels increases the amount of solar energy your system can potentially collect. But before filling every available spot on the roof, you need to decide how those new panels will integrate with the system you already have.

Step 1: How Much More Solar You Actually Need

Start by asking why your current solar system isn't meeting your needs.

The goal isn't necessarily to install the largest solar array possible. It's to build enough charging capacity to replace the energy you're normally taking out of your battery bank. The larger the system, the higher the costs and weight, so finding actual needs is important.

For example, suppose you typically consume about 2,000 watt-hours (Wh) of energy while camping each day. If your existing solar system is only replacing about 1,200Wh under typical conditions, you have an energy deficit of roughly 800Wh per day.

Additional solar capacity can help close that gap.

Solar panels rarely produce their nameplate rating continuously throughout the day. Shade, clouds, sun angle, temperature, season, geographic location, and installation all affect actual production. It's generally better to leave some margin rather than size an array around perfect conditions.

As a starting point for RV systems, Battle Born recommends considering approximately 200 watts of solar for every 100Ah of battery capacity. Your actual requirements may be higher or lower depending on your energy use and how heavily you rely on solar charging.

☀️ We have a detailed article all about sizing RV solar systems here - How to Size Your Solar Panel System.

If you're expanding your battery bank at the same time, charging capacity becomes even more important. Doubling your energy storage without increasing your charging capability could leave you with a battery bank that simply takes much longer to replenish.

Step 2: Make Sure You Have Room for More Panels

Electrical capacity isn't always the limiting factor on an RV. Sometimes, it's the roof.

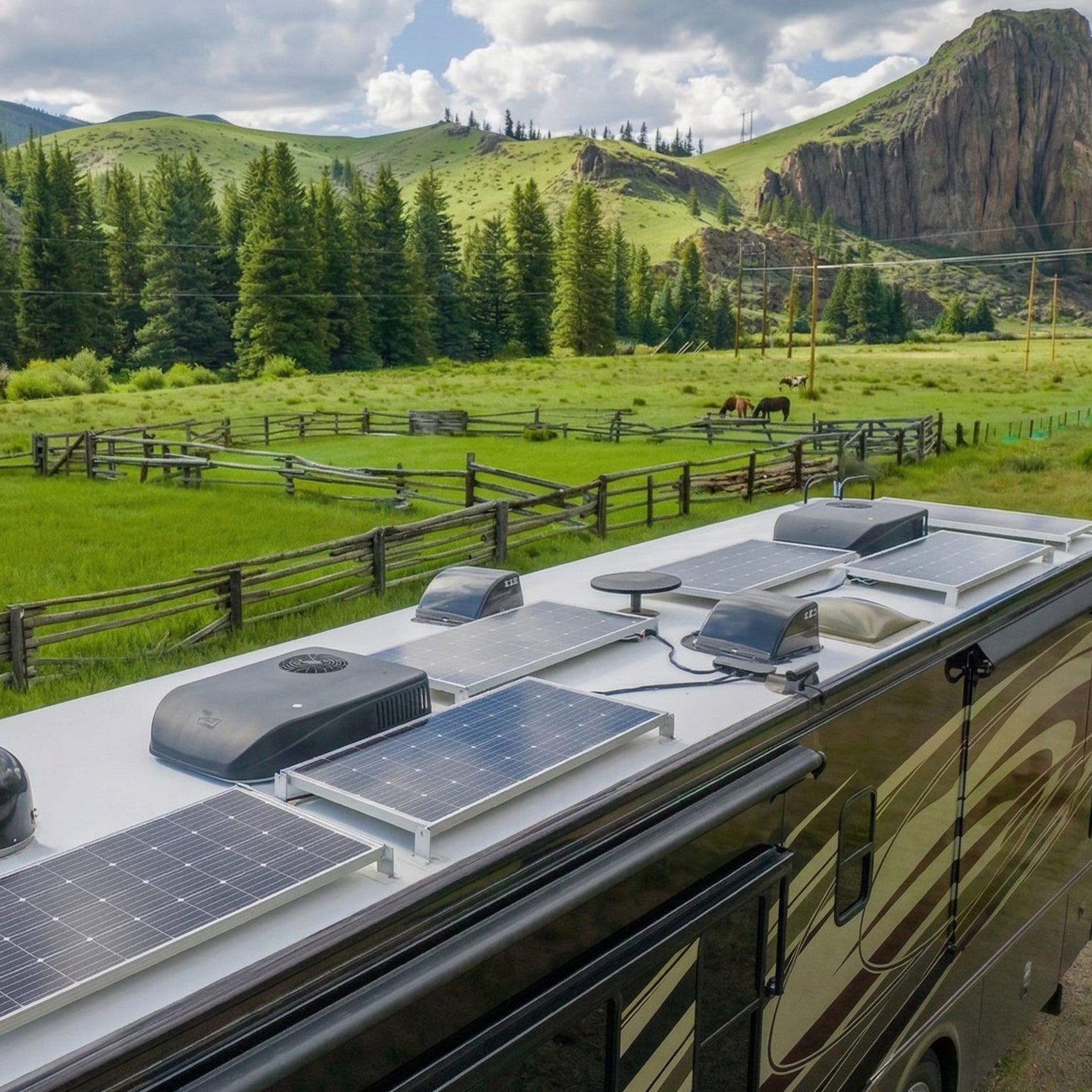

RV roofs can become crowded quickly with:

• Air conditioners

• Vent fans

• Plumbing vents

• Skylights

• Antennas

• Satellite equipment

• Roof racks

• Other accessories

You also need to account for mounting hardware, safe installation clearances, cable routing, solar panel cable entry points, and the RV roof's structural limitations.

Don't just consider whether a panel physically fits. Look at where shadows will fall throughout the day.

An air conditioner or vent that shades part of an array can reduce solar production. In some cases, using several smaller panels allows you to make better use of irregular spaces around existing equipment.

Battle Born offers a wide selection of solar panels, including multiple sizes and form factors. Narrow-profile panels can be especially useful when filling remaining spaces on an already crowded RV roof.

Check out our 100W Slim and 130W Slim solar panels, which fit in more places on your RV roof.

Step 3: Choose How to Add More Solar Panels to an Existing RV System

Most RV solar expansions fall into one of two categories.

You can add the new panels to the solar array that already feeds your existing charge controller, or you can create an entirely separate array with its own wiring and charge controller.

For simplicity, we'll refer to the group of panels feeding one charge controller as a solar array. You may also hear the term string, particularly when referring to panels connected together in series within an array.

Here's the basic difference:

The first method can be the simplest and least expensive. The second requires more equipment and wiring, but it gives the new panels their own independent charging path.

Option 1: Add More Panels to Your Existing Solar Array

Wiring in new panels to the existing wires can sometimes be an option; however, you can't simply connect another panel because there is an open connector or unused space on the roof. The existing charge controller, panels, wiring, and circuit protection all need to support the expanded array.

Here's what to check.

Check the Capacity of Your Existing Solar Charge Controller

Your solar charge controller is one of the most important components to check before adding panels to an existing array.

The charge controller sits between the solar array and your battery bank. It regulates the electricity coming from the panels so the batteries receive the appropriate charging voltage and current.

Every solar charge controller has electrical limits. Depending on the controller, these may include:

• Maximum PV (photovoltaic, or solar panels) open-circuit voltage

• Maximum PV input or short-circuit current

• Maximum charging output current

• Maximum recommended solar array wattage

• Supported battery-bank voltage

Don't assume that a controller labeled "30A," for example, means you can simply multiply 30 amps by your nominal battery voltage to determine exactly how much solar you can connect.

⚡ Consult the manufacturer's specifications for your controller and system voltage. You can also read How to Choose the Right Solar Charge Controller for more information.

PV input voltage is especially important when adding panels in series. Connecting panels in series increases array voltage, and solar panel open-circuit voltage can rise in cold temperatures. The array must remain below the controller's maximum allowable PV voltage under the conditions your RV could experience.

Some MPPT charge controllers allow a solar array to be moderately oversized relative to the controller's maximum charging output. In these systems, the array may be capable of producing more power than the controller can deliver during peak conditions, so the controller limits its output to its rated maximum. However, acceptable oversizing varies by manufacturer and does not mean you can exceed the controller's specified PV voltage or current limits.

Learn more about our top-selling Solar Charge Controllers

If your existing controller has enough unused capacity, you may be able to add panels as long as the expanded array stays within the controller's PV input limits and its charging output remains appropriate for the battery bank.

If it doesn't, that doesn't necessarily mean you need to replace your entire solar system. A second charge controller and independent array may be the better expansion option, which we'll cover below.

Decide Whether the New Panels Will Be Wired in Series or Parallel

When adding panels to an existing solar array, you also need to determine how the new panels will connect to the panels already installed.

Solar panels can be wired in series, parallel, or a combination of the two.

⚡ Not sure? For a full explanation, see Solar Panels in Series or Parallel: Which Is Better?

With panels wired in series:

• Panel voltages add together

• Current through the string remains roughly the same

• The charge controller sees a higher PV input voltage

• Solar panel current ratings need to match; a lower-current panel can limit the output of the string.

With panels wired in parallel:

• Panel currents add together

• Array voltage remains roughly the same

• The wiring and other components may need to carry more current

• The panels need to have the same voltage ratings;large voltage differences can reduce the output you would otherwise get from the panels

Neither method is automatically better. The right configuration depends on the panels, controller, wiring, system voltage, and installation.

This becomes especially important when the new panels aren't identical to the ones already on your RV.

Make Sure the New Solar Panels Are Electrically Compatible

Ideally, you would expand an existing solar array with identical panels. In the real world, that's not always possible.

Your original panels may no longer be available, or a different size may fit your remaining roof space better.

You can mix different solar panels, but you need to look at more than wattage.

Before combining panels, compare specifications including:

• Open-circuit voltage (Voc)

• Maximum-power voltage (Vmp)

• Short-circuit current (Isc)

• Maximum-power current (Imp)

If panels are connected in series, their current ratings should generally be similar. Because current must flow through every panel in the string, a lower-current panel can limit the performance of the others.

If panels are connected in parallel, their operating voltages should generally be similar. Panels with substantially different voltage characteristics may not operate together at their individual maximum-power points.

Two panels can have the same wattage rating and still be a poor electrical match. Likewise, two different-wattage panels may work together if their voltage and current characteristics are compatible with the way you plan to wire them.

If the new panels are significantly different from your existing panels, adding them to a separate charge controller may be a better choice than trying to force both sets of panels into one array.

Check the Existing Solar Wiring and Circuit Protection

Adding panels changes the electrical characteristics of the solar array.

Series connections increase voltage. Parallel connections increase current. Depending on how you expand the system, conductors and protection devices that were appropriate for the original array may no longer be adequate.

Before expanding the existing array, evaluate:

• PV wire size

• Maximum wire and connector ratings

• Fuse and breaker ratings

• Solar disconnects

• Combiner boxes, if equipped

• Roof-entry connections

• Cable routing

• Existing terminals and connections

Higher current can increase voltage drop and heat in undersized conductors or poor connections. Higher array voltage can exceed equipment ratings if the original system wasn't designed for the additional panels.

Don't overlook the connectors themselves. Connectors that look physically compatible aren't necessarily rated or listed to be mated together. Follow the panel and connector manufacturers' recommendations when modifying an existing array.

Battle Born carries solar accessories, including 10AWG solar extension cable for appropriate applications and 1000VDC Solar PV Fuses with MC4 Connectors.

An RV technician or qualified installer can help determine whether your existing solar wiring and circuit protection support the proposed expansion.

Option 2: Add a Second Solar Array and Charge Controller

The second way to add more solar is to treat the new panels as an independent solar array rather than connecting them to the existing one.

This approach requires more installation work, but it can provide much more flexibility.

Instead of tying the new panels into the old solar wiring, the second array gets:

• Its own group of solar panels

• Dedicated PV wiring from the roof

• Its own solar charge controller

• Properly sized controller-to-battery wiring

• Appropriate overcurrent protection between the controller and battery bank or DC distribution system

In a typical installation, new solar wiring runs from the second rooftop array through a roof entry and down to the new charge controller. The controller's output then connects to the battery bank or appropriate DC bus through correctly sized wiring and a fuse or circuit breaker sized for the circuit and installed according to the equipment manufacturer's requirements.

The original solar system can remain largely unchanged.

Can You Have Two Solar Charge Controllers on One Battery Bank?

Yes. Two — or even more — properly configured solar charge controllers can charge the same RV battery bank.

Each controller independently manages its own solar array and then supplies regulated charging power to the same battery system. The controllers do not have to be the same model or communicate with each other; each simply needs to be compatible with the battery bank and configured with appropriate charging parameters.

The controllers do not need to share the same solar panel voltage or array design because the PV side of each controller is independent.

That means one array could use one panel model or series/parallel configuration while the second uses something completely different, provided each array stays within the specifications of its own charge controller.

On the battery side, the controllers should be configured with compatible charging parameters for the same battery chemistry and system voltage. For Battle Born LiFePO4 batteries, that means configuring each controller according to Battle Born's recommended charging profile and the individual controller manufacturer's instructions.

When properly configured, both controllers can contribute charging current whenever solar energy is available. As the battery approaches its charging voltage targets, each controller independently reduces output as needed.

Why Add a Second Solar Charge Controller?

For many RV solar retrofits, adding a second (or third) controller can be easier than trying to make new panels work perfectly with an older array.

A separate array can be especially useful when:

• The existing charge controller is already at its maximum capacity

• Your original solar panels are discontinued

• New panels have different voltage or current characteristics

• You want to use a different panel wattage or form factor

• Different areas of the RV roof experience different amounts of shading

• You want to use a different series/parallel configuration

• You want to leave a functioning existing solar system largely untouched

• You want to make future expansion easier

The independent MPPT controllers allow each array to operate at the electrical conditions that work best for that array.

That can improve solar harvest compared with connecting substantially mismatched panels to one controller, and it can reduce the effect that different shading conditions have across separate groups of panels.

For example, imagine your RV already has a 400W rooftop array that works well, but the original panel model is no longer available. Instead of trying to find new panels with nearly identical specifications, you could install another 400W array using newer panels and connect it to its own appropriately sized MPPT controller.

The original array continues operating as before. The new array operates independently. Both contribute power to the same battery bank.

Is a Second Charge Controller Always Better?

Not necessarily.

If your existing charge controller has plenty of available capacity and you can purchase panels that match the existing array well, expanding the original system may be simpler and require less wiring and equipment.

A second controller becomes particularly attractive when expanding the original array would require compromises in panel matching, controller sizing, shading, or wiring.

The goal isn't simply to have more controllers. It's to let each group of panels operate efficiently while keeping the overall system safe and manageable.

☀️ Shop Battle Born solar charge controllers

What About Adding Portable Solar?

Portable solar provides another way to increase charging capacity, and electrically it often works much like adding a second independent solar source.

If your RV roof is already full, portable solar can be one of the easiest ways to add more solar capacity.

Portable panels also have an advantage fixed rooftop panels can't offer: you can move them.

That can be particularly useful when you want to park your RV in the shade while placing the solar panels in a sunny location.

Portable panels may make sense if:

• Your roof doesn't have enough open space

• You don't want to modify the roof

• You only occasionally need additional solar

• You frequently camp in partially shaded locations

• You want to adjust panel orientation throughout the day

Battle Born offers portable options alongside its complete selection of solar panels, including the Battle Born 200W portable panel and portable RICH SOLAR options.

Longer cable runs may be necessary when positioning portable panels away from the RV, making conductor size and voltage drop important considerations. Our 10AWG Solar Extension Cable provides one option for compatible installations.

Portable panels still need an appropriate connection to the RV electrical system and a properly sized solar charge controller unless the specific portable setup incorporates its own compatible charging equipment.

Should You Add More Battery Capacity When You Add More Solar?

Adding more solar panels doesn't automatically mean you need more batteries.

The two components serve different purposes:

☀️ Solar capacity determines how quickly you can collect and replace energy.

🔋 Battery capacity determines how much energy you can store for later use.

If you have plenty of battery capacity but struggle to recharge it during the day, you may need more solar without adding any batteries.

On the other hand, if your solar system already recharges the batteries quickly but you run out of stored energy overnight, additional battery capacity may be more useful than another panel.

Remember that adding solar also doesn't increase the amount of instantaneous AC power your RV can supply. Your inverter and battery bank determine whether you can support high-power loads such as a microwave, induction cooktop, or air conditioner. Solar helps replenish the energy those loads consume.

👉 The best off-grid systems balance generation, storage, and loads rather than maximizing one component in isolation.

Expand Your RV Solar System With Confidence

Before adding more solar to your RV, decide whether it makes more sense to expand the existing array or give the new panels their own charge controller.

If your existing controller has room and compatible panels are available, expanding the original array may be straightforward. If the controller is full, the panels don't match, or you want greater flexibility, a second independent solar array can often provide a cleaner upgrade path without replacing the equipment that's already working.

Not sure which approach makes sense for your RV? Battle Born's technical specialists can help evaluate your existing solar panels, charge controller, battery bank, and system goals before you choose an upgrade.

Explore Battle Born solar products and start planning your RV solar expansion.

Frequently Asked Questions About Adding More Solar Panels to an RV

Q: Can I Just Add Another Solar Panel to My RV?

Often, yes. If your existing charge controller has enough capacity and the new panel is compatible with the existing array, you may be able to connect it to the system you already have.

If the controller is already at its limit or the panels don't match well, adding a second solar charge controller may be a better option.

Q: Can I Connect New Solar Panels to My Old Panels?

Yes, provided their electrical characteristics work together.

For panels wired in series, current ratings should generally be closely matched. For panels wired in parallel, operating voltages should generally be closely matched.

If the panels differ significantly, putting the new panels on their own MPPT charge controller can allow the two arrays to operate independently.

Q: Can I Mix Different-Wattage Solar Panels?

Yes. Panel wattage doesn't have to be identical, but you need to compare voltage and current specifications.

Two different-wattage panels can sometimes work together well, while two panels with the same wattage could still be a poor electrical match.

Q: Do I Need a New Charge Controller if I Add More Solar Panels?

Not necessarily.

If your existing controller has enough PV input and charging capacity for the expanded array, you may be able to continue using it.

If the new array exceeds its limits, you can either upgrade the controller or install an additional controller for the new panels.

Q: Can Two Solar Charge Controllers Charge the Same RV Battery Bank?

Yes. Multiple properly installed and configured solar charge controllers can charge the same battery bank.

Each controller manages its own solar array independently and contributes regulated charging power to the battery system. The controllers should be configured with compatible charging parameters for the battery chemistry and system voltage.

Q: Is It Better to Add Panels to My Existing Solar Array or Install a Second Charge Controller?

It depends on the existing system.

Adding to the original array is often simplest when the charge controller has available capacity and compatible panels are available.

A second controller may be a better option when the existing controller is full, new panels are significantly different, portions of the roof experience different shading, or you want more flexibility for future expansion.

Q: How Many Solar Panels Can I Put on My RV?

There isn't one universal limit.

The practical maximum depends on available roof space, panel size and weight, shading, the RV's structure, solar charge controller limits, wiring, battery capacity, and your actual energy needs.

For many RV owners, the best system isn't the one with the most panels. It's the one that reliably replaces the energy they use while camping.

Q: Can I Add Portable Solar to an Existing Rooftop Solar System?

Yes. Portable solar can supplement a rooftop array and is particularly helpful when roof space is limited or you frequently park the RV in shade.

Depending on the equipment, portable panels may use a dedicated charge controller or another appropriately designed solar input.
