Battery Cable Lugs & Crimping 101: How to Make Safe Battery Cable Connections

Crimping is more important than many RV and boat owners realize. Battery cables and lugs look like basic hardware, but in reality, they are critical components that, when done properly, can operate in harsh environment electrical systems, but done poorly, they can be dangerous.

A cable lug is the bridge between a flexible battery cable and a rigid connection point, such as a battery terminal, busbar, fuse block, shunt, inverter, charger, or disconnect switch. When that lug is crimped correctly, it creates a strong mechanical connection and a low-resistance electrical path. When it is crimped poorly, it can look fine from the outside while hiding a weak, high-resistance connection inside the barrel.

That matters because resistance creates heat. Under inverter loads, charging loads, alternator charging, or sustained high-current use, a poor crimp can become a hot spot in the system. Over time, that heat can damage the lug, cable insulation, battery terminal, fuse holder, busbar, or nearby components and, worst case, melt or even cause a fire.

In other words, battery cable crimping is not just about keeping a wire from pulling out of a lug. It is part of building a safe, efficient, long-lasting electrical system.

What Are Battery Cable Lugs?

Battery cable lugs are metal connectors attached to the ends of battery cables. They allow flexible stranded cable to connect securely to rigid electrical connection points.

A lug has to do two jobs at the same time.

1. First, it has to hold the cable mechanically so vibration, movement, and cable weight do not pull the conductor loose.

2. Second, it has to conduct current efficiently with as little resistance as possible.

Most high-quality battery cable lugs are made from copper because copper offers excellent electrical conductivity. Many are also tin-plated to help protect the copper from oxidation and corrosion, which is especially useful in RV, marine, and exterior environments where moisture and road contaminants may be present. There are specialty lugs for aluminum wire and even stainless steel lugs, but these are designed for special applications and are rarely used in battery systems.

A good lug is not simply a piece of metal tube with a hole in it. It is designed to deform in a controlled way during crimping and provide a sustained force on the wire. When the correct lug, cable, and crimping tool are used together, the lug barrel compresses around the cable strands and forms a low-resistance connection that can withstand current, vibration, and real-world use.

The lug has to match both sides of the connection: the cable size on one end and the terminal stud size on the other. A 2/0 cable lug with the wrong stud hole, barrel size, or palm shape is still the wrong lug.

Common Parts of a Battery Cable Lug

Battery cable lugs come in several shapes and configurations, but most include the same basic parts.

Palm: The palm is the flat part of the lug with the bolt hole. It sits against the battery terminal, busbar, fuse block, shunt, or equipment stud. Palm size and shape matter because the palm provides the contact area between the lug and the connection point. Some lugs have wider palms for more contact area, while others use reduced palm designs for compact installations where space is limited.

Barrel: The barrel is the round portion where the stripped cable is inserted before crimping. Barrel length, wall thickness, and inside diameter all affect how well the lug compresses onto the cable. A longer barrel may allow multiple crimps and more contact area, while a shorter barrel may be useful in tight spaces if it is still rated for the application.

Bolt hole: The bolt hole, or stud hole, must match the connection point. If the hole is too small, the lug will not fit. If it is too large, the lug may not seat properly, reducing contact area and increasing the chance of movement or uneven pressure.

Flared or fluted cable entry: Some barrels have a flared or fluted cable entry. This helps guide fine-strand cable into the lug barrel and reduces the chance of strand folding, bunching, or missed strands during assembly.

Inspection window: Some lugs include an inspection window, which is a small hole near the end of the barrel. This allows the installer to confirm that the stripped cable was fully inserted before crimping.

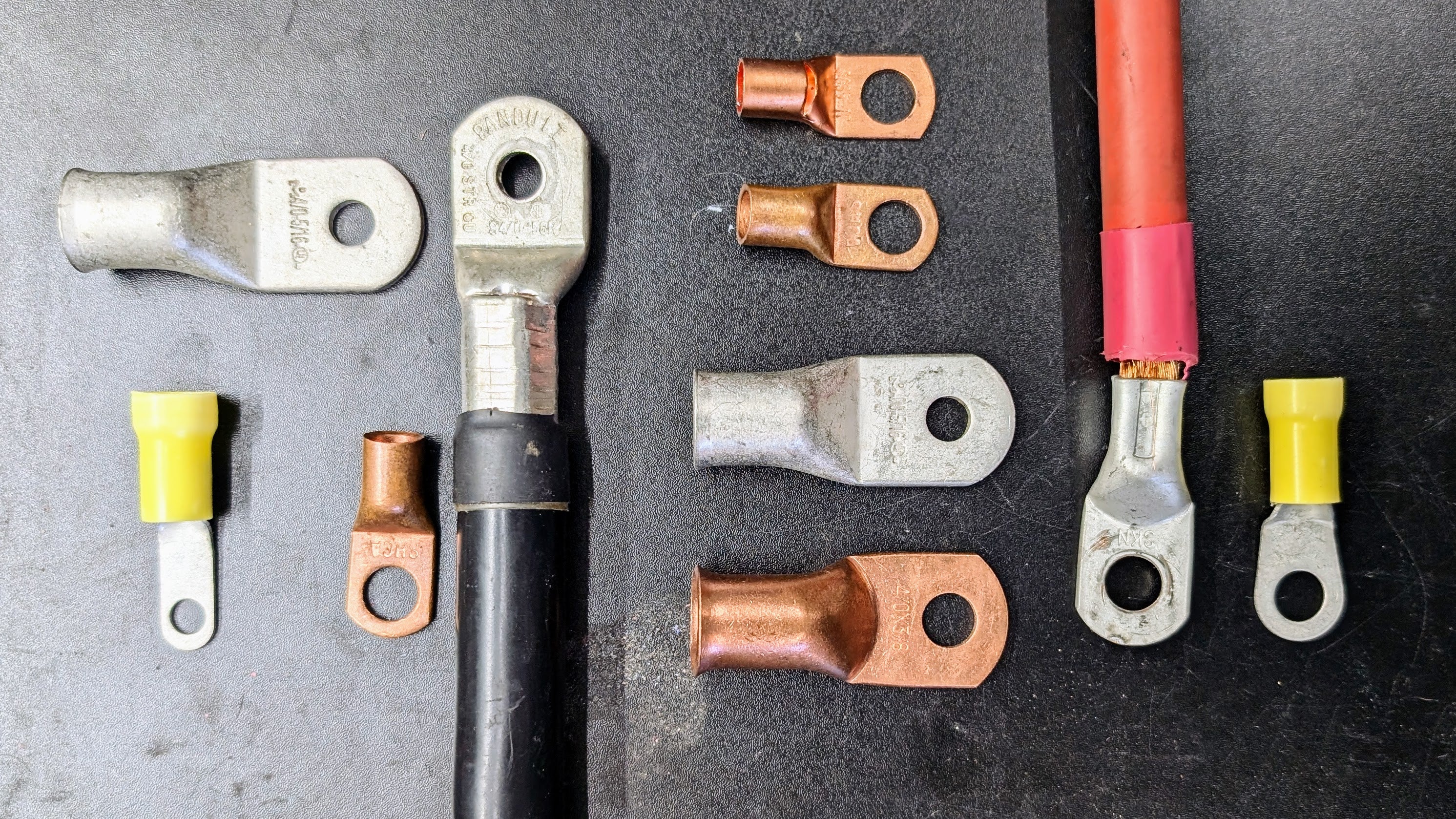

Common Types of Battery Cable Lugs

Two common lug styles you may see are DIN compression lugs and tubular cable lugs.

DIN compression lugs are often associated with defined dimensional standards and professional crimping systems. DIN is a German standardization that professional electrical builders and systems have adopted to ensure standardization and safety in electrical systems.  They are typically used where a specific lug, conductor, die, and crimp profile are intended to work together.

Tubular cable lugs are not standardized and are common in battery, solar, RV, marine, and industrial applications. They are made from a copper tube that is formed into a barrel and palm. They can work well when they are properly matched to the cable and crimping tool.

The important thing is not simply the name of the lug style. The important thing is whether the lug is designed for the conductor, crimp profile, tool, and installation environment.

What Makes One Lug Better Than Another?

Not all battery cable lugs are built the same, even when they appear to be the same size.

1. Copper Content

One major difference is copper content. Quality lugs generally contain more copper. More copper usually means a heavier, stronger, more conductive lug with more material available to deform during crimping. This provides a stronger, sustained crush force once the crimp tool is removed.

Thin-wall economy lugs may look similar, but they can contain less conductive material, have inconsistent barrel dimensions, or use lower-quality plating. They may be easier to crush, but that actually means the crimp is not as strong.

A simple test is to weigh two lugs advertised for the same cable size. If one lug weighs noticeably less, it may have thinner walls or less copper. That does not automatically mean it will fail, but it does mean it may have less margin for high-current use, crimp deformation, and mechanical strength.

^You can see the difference in wall thickness between these lugs. Thinner walls provide less material for controlled compression, which can reduce contact area and mechanical strength while increasing resistance and heat under high loads.

2. Testing and Documentation

The other difference is testing and documentation. Better lugs are more likely to provide clear specifications for conductor type, crimp profile, tool compatibility, current application, and relevant standards. Cheaper generic lugs may not provide much guidance at all. Lugs certified by a nationally recognized test laboratory and conforming to UL standards are recommended to assure you are getting a safe product.

If the lug does not tell you how it should be crimped, the installer may be guessing. In a high-current RV or marine battery system, that is not a great place to guess.

Cable Type Matters: Fine-Strand Battery Cable vs. Building Wire

The cable type needs to match the lug design. Cables come in fine-stranded or coarse-stranded designs and have different design purposes.

RV and marine battery systems commonly use fine-strand copper cable because it is flexible and better suited to vibration and movement than stiff building wire. Welding cable, marine battery cable, and listed battery cable may all have different strand counts, insulation ratings, jacket materials, voltage ratings, and temperature ratings.

That matters because not every lug is designed for every conductor class. A lug that works well with coarse-strand building wire may not crimp correctly onto fine-strand flexible cable unless the lug manufacturer allows that use.

Fine-strand cable can spread, shift, or compress differently inside a lug barrel than a coarser conductor. If the barrel is too large, the strands may not compress tightly enough. If the barrel is too small, strands may be cut off or forced out, reducing the effective cable size.

The lug, cable, and crimper are a system. A lug that fits over the cable is not automatically approved or appropriate for that cable type.

📖 Recommended Reading: Crimp quality is only one part of a reliable connection. Read our guide to Electrical Wiring Essentials to learn more about choosing the correct wire size and type, making connections, and safely installing RV and boat wiring.

What a Proper Crimp Is Supposed to Do

A proper battery cable crimp creates two connections at once:

1. First, it creates a mechanical connection. The cable should not pull out, rotate inside the lug, or loosen from vibration. This is especially important in RVs, boats, trucks, and off-grid systems where cables may experience road vibration, engine vibration, wave motion, or repeated thermal cycling.

2. Second, it creates an electrical connection. The crimp must create enough contact between the cable strands and the lug barrel to allow current to flow with very low resistance.

The goal is not simply to smash the lug onto the cable. The goal is controlled compression that ideally creates a “cold weld”.

In a proper compression crimp, the lug barrel and conductor strands are compressed so tightly that air gaps are reduced and the metals behave like one continuous conductor. This is sometimes described as cold welding because the connection is formed by pressure rather than solder or heat. This can be seen when a properly crimped lug is cut open; the wire and lug will bond together and look like a single piece of metal.

If a proper crimp is cut open, no differentiation should be seen between the wire and the walls of the lug.

Battery Lug Crimping Types

Cable lug crimping is not all the same; in fact, there are many different ways to crimp a lug. We call these crimp profiles. Different crimping tools create different crimp profiles. The best profile depends on the lug, cable, and tool system. Different crimp types also have different capacities and current limitations.

Crimp Profiles

A hex crimp is one of the most common profiles for larger battery cable lugs because it compresses the barrel from multiple sides. It often uses interchangeable dies selected by cable or lug size.

This is a hex and a 4-point crimp:

An indent crimp uses one or more pressure points to press into the lug barrel. This can work very well when done with the correct tool and procedure, but placement matters. Some indent crimps require crimps on opposite sides of the barrel or specific spacing to prevent the lug from bending.

Note: The shape of the crimp is not enough by itself. A good crimp profile is one that is approved for the specific lug, conductor, and tool being used.

Battery Cable Crimping Tools

Battery cable crimping tools range from cheap DIY options to professional crimping systems. Some are affordable and accessible but less controlled. Others are more repeatable but more expensive or intended for trained installers.

The main difference is how controlled and repeatable the compression is. Tool choice matters, but the bigger issue is matching the tool, lug, cable, and crimp profile.

Common Battery Cable Crimping Tools

Hammer crimpers are common DIY tools because they are inexpensive and easy to find. A hammer crimper uses a hammer strike to drive an indent into the lug barrel. These tools can work in some situations, but they are highly technique-dependent and less controlled than hydraulic options.

Compression crimpers with dies are common among serious DIYers, small installers, RV technicians, and marine installers. These tools usually use hydraulic force with interchangeable dies. The die must match the cable and lug. You operate some hydraulic crimpers by hand, while others rely on battery or electric assistance.

Dieless compression crimpers usually use hydraulic force without interchangeable dies. They are more common in professional electrical work and can be convenient because the installer does not need to swap dies. However, dieless does not mean guess-free. The tool still needs to be approved for the lug and conductor being used.

Specialty and Professional Crimping Tools

Professional shops, cable suppliers, and production environments may use bench-mounted crimpers, manufacturer-specific crimp systems, battery-powered hydraulic crimpers, or production crimping tools. These systems are usually overkill for a one-time RV or marine install, but they are common where repeatability matters.

If you are doing a DIY battery installation, you may not need to own professional-grade crimping tools. In many cases, you can buy professionally crimped cables or hire a qualified RV technician, marine electrician, solar installer, or cable supplier to make the cables for your system.

What Is NOT a Battery Cable Crimping Tool?

There are many videos online with “hacks” and shortcuts for DIYers. Battery lug crimping is not an area where you want to improvise.

These are not proper battery cable crimping tools:

• Pliers

• Vise grips

• A bench vise

• Side cutters

• Hammer Strike

• Solder alone

These methods may flatten or deform a lug, but they do not create a controlled, repeatable crimp. Crushing a lug is not the same as crimping a lug!

Correct Lug + Correct Die + Correct Tool

A reliable battery cable crimp depends on the entire connection system.

Correct Lug + Correct Cable + Correct Die + Correct Crimping Tool + Correct Inspection = Reliable Connection

Before crimping a battery cable lug, the installer needs to match:

• Cable gauge

• Cable strand type

• Lug barrel size

• Lug stud hole size

• Crimp profile

• Die size, if using dies

• Tool type

• Number and location of crimps

• Manufacturer instructions

This is where many battery cable crimping mistakes happen. A hydraulic crimper with the wrong die can still make a poor crimp. A high-quality lug used with the wrong cable can still fail. A cable that fits inside the lug barrel is not automatically the right cable for that lug.

You should treat the connection as a system, not a collection of random parts that happen to fit together.

How to Prepare Cable Before Crimping a Lug

Good cable prep is part of a good crimp. Even the right lug and tool can produce a poor result if the cable is cut, stripped, or inserted incorrectly.

Before crimping:

1. Confirm the cable size and lug size.

2. Confirm the lug hole fits the terminal or stud.

3. Cut the cable cleanly and square.

4. Avoid nicking or cutting conductor strands.

5. Strip the cable to the proper depth for the lug barrel.

6. Insert all strands fully into the barrel.

7. Use the inspection window, if the lug has one.

8. Make sure no loose strands are outside the barrel.

9. Orient the lug palm correctly before crimping.

Strip length should ultimately follow the lug manufacturer’s instructions. Too little strip length leaves the conductor outside the crimp area. Too much strip length exposes bare conductor beyond the lug barrel.

👍 A common rule of thumb is to strip the cable to the depth of the crimp barrel, with any additional allowance based on the lug manufacturer’s instructions. The point is to make sure the conductor fully fills the crimp area without leaving unnecessary exposed copper.

What About Pre-Crimped Battery Cables?

Buying pre-crimped battery cables can be a smart choice for a one-time RV or marine installation. This is especially true if you need large cables for a lithium battery bank, inverter, alternator charging system, or marine electrical upgrade, but do not want to buy crimping tools for one project.

However, pre-crimped cables still need to be correct for the system.

When buying pre-crimped battery cables, confirm:

• Cable gauge

• Cable length

• Lug hole size

• Cable insulation rating

• Copper or tinned copper lug material

• Proper heat shrink

• Correct lug orientation, if needed

• Compatibility with the installation environment

Before installation, check that the lug is straight, not cracked, and not loose on the cable. After installation, it is also smart to check for heat under load.

Pre-crimped cables can save time and reduce tooling mistakes, but they are only as good as their specifications and workmanship.

Common Battery Cable Crimping Mistakes

A poor battery cable crimp can be obvious, but it can also be hidden. Many problems disappear once heat shrink is installed, which is why inspection before heat shrink is important.

1. Undercrimping

Installers can undercrimp a connection when the die is too large, the tool does not complete the crimp cycle, they use the wrong lug, or the cable and lug do not match.

An undercrimped lug may leave air gaps inside the barrel, allow strands to move, and create higher resistance. It may pass a casual visual check but fail under vibration, load, or repeated heating and cooling.

2. Overcrimping

Overcrimping usually happens when the die is too small or the compression is excessive.

An overcrimped lug may form sharp wings, flashing, cracks, or thin spots in the barrel. It can cut or weaken conductor strands, reduce the effective cross-section of the cable, and create stress points that heat under load.

3. Wrong Lug for the Cable

If the barrel is too large, the conductor may not compress properly. If the barrel is too small, strands may be removed, folded, or forced out. And, if the lug is not designed for the conductor class, the crimp may not capture the strands correctly.

4. Wrong Crimp Location

Crimping too close to the palm, too close to the cable end, or in uneven locations can weaken the connection. Crimping through insulation or heat shrink is also a problem because the tool is no longer compressing the lug directly around the conductor.

5. Poor Cable Prep

Nicked strands, loose strands, insulation inside the crimp barrel, corrosion, contamination, and incomplete cable insertion can all compromise the connection.

6. Covering the Problem With Heat Shrink

Heat shrink protects a good crimp. It does not fix a bad one.

Adhesive-lined heat shrink is useful for protecting the connection from moisture, corrosion, and abrasion, but it should be applied after the crimp has been inspected. Once the heat shrink is on, many visible faults are hidden.

How to Inspect a Battery Cable Crimp

Inspection is where a lot of DIY and professional work separates itself. A crimp may look finished, but it still needs to be checked.

Visual Checks

Look for:

• A straight lug, not a bent or banana-shaped lug

• No cracked barrel

• No sharp wings or split seams

• Cable fully inserted

• No missing strands

• No loose strands outside the barrel

• No unexpected exposed copper

• A clean, flat lug palm

• Heat shrink applied only after the crimp is verified

Mechanical Checks

A basic tug test can help confirm that the cable is mechanically secure. The cable should not pull out, rotate, or move inside the lug.

The cable should also be supported after installation. Battery terminals should not carry the weight of long or heavy cables. Strain relief matters in RV and marine systems because vibration and movement can stress the connection over time.

Electrical Checks

Electrical checks are especially important in high-current systems.

A good installer may check voltage drop under load or use a thermal camera or infrared thermometer after the system has been operating. One lug, terminal, fuse holder, or busbar connection running hotter than similar connections can be a warning sign.

Destructive Test Option

When validating a new lug, cable, and crimping tool combination, some installers make a sacrificial test crimp and cut it open. This allows them to inspect how well the strands compressed inside the barrel before making the final cables.

Most RV and boat owners do not need to cut open a crimp, but the test highlights an important point: the most critical part of the connection sits hidden inside the lug.

In the image below are two cut-open crimps. The crimp on the left is what we want to see: no strands and no visible edges to the lug. The crimp on the right did not pull out, but the visible strands show that the lug and conductor did not fully compress into a cold-welded connection. This is a poor crimp.

Why Bad Crimps Create Heat

In a DC battery system, “just a little resistance” is no small problem. When hundreds of amps are moving through a cable lug, a weak connection can become a heat source.

Every connection has some resistance. A good crimp keeps that resistance very low. A poor crimp creates more resistance. More resistance creates more heat when current flows.

This problem becomes more serious as current increases. Large inverter loads can pull hundreds of amps from a battery bank. Alternator charging, solar charging, DC-to-DC charging, and inverter/charger systems can also create sustained current for long periods.

Heat from a bad crimp can damage the lug, cable, and whatever it's connected to. We have seen improperly made crimps damage battery terminals, switches, inverters, fuses, and other connected components.

Heat increases rapidly with current, so high-current battery systems are unforgiving of weak connections.

Why This Matters More With Lithium Battery Systems

Lithium batteries can deliver a strong, steady current. That is one of the reasons RVers, boaters, and off-grid users choose them. These systems often pair lithium batteries with larger inverters, solar chargers, alternator chargers, DC-to-DC chargers, and other high-demand loads.

That makes installation quality more important, not less.

A quality battery does not eliminate the need for proper cables, lugs, fuses, torque, strain relief, and inspection. Battle Born Batteries are designed with internal protections, but the external electrical system still needs to be installed correctly.

Lithium batteries are sometimes blamed when a system overheats, but the heat source is often outside the battery. A loose terminal, poor crimp, undersized cable, overloaded fuse holder, or unsupported conductor can create heat even when the battery itself is operating correctly.

In some cases, the battery is simply powerful enough to reveal the weak point in the rest of the system.

^Thermal image of a bad crimp at a battery connection under high load. Excessive heat is generated due to increased resistance.

Should DIYers Crimp Their Own Battery Cables?

Some DIYers can make excellent battery cables. Others may be better off buying professionally crimped cables or hiring an installer.

Crimping your own battery cables may make sense if you are comfortable with electrical work, have the correct cable and lugs, are willing to buy the right crimping tool, and understand how to inspect the finished connection.

DIY crimping is generally acceptable for smaller, low-to-moderate-current systems that the installer is comfortable working on. We always recommend that when learning to crimp, you test the crimps and make sure you fully understand cable sizing, fusing, and torque requirements.

Buying pre-made cables or hiring a professional may be a better choice for:

• Large inverter systems

• Marine installations

• Alternator charging upgrades

• Multi-battery banks

• High-current 12V systems

• Users who are unsure about cable sizing, fusing, crimping, or torque

For a one-time install, buying properly made custom cables or hiring a qualified installer may cost less than buying tooling, lugs, cable, and test materials. This is especially true if the system includes a large inverter, alternator charger, or multiple batteries.

Can You Hire a Professional to Crimp Battery Cables?

Yes. Many RV technicians, marine electricians, solar installers, battery shops, and cable suppliers can make custom battery cables.

This approach gives DIY installers a practical middle ground: install part of the system yourself, then have a professional make the high-current cables with the proper tooling.

If you hire someone to make or install battery cables, ask about:

• Cable gauge

• Cable type and insulation rating

• Lug material and stud size

• Crimping method

• Heat shrink

• Cable support and strain relief

• Load testing or heat checks after installation

You do not need to know every detail of professional crimp tooling to ask good questions. You simply want to know that the cables are being made with the right materials, the right tools, and the right inspection process.

Crimping Is Really Important

Battery cable lugs may be small compared to the battery, inverter, or charger, but they are a critical part of the system. A good crimp creates a strong mechanical bond and a low-resistance electrical path. A poor crimp can loosen, heat up, damage nearby components, and create problems that look like battery issues even when the battery is operating correctly.

Whether you build your own cables, buy pre-crimped cables, or hire a professional installer, the goal is the same: use the right lug, the right cable, the right crimping tool, and verify the connection before trusting it in a high-current RV or marine battery system.

In RV, marine, and off-grid electrical systems, the smallest connection can become the weakest link. Do not let the crimp be the weak point.

Battery Cable Crimping FAQ

Q: What is the best battery cable crimper?

The best battery cable crimper is the one specified for the lug and cable combination. For many RV and boat DIYers, a quality die-style hydraulic crimper is the most accessible option. Professional installers may use dieless, battery-powered, bench-mounted, or manufacturer-matched crimp systems.

Q: Can I use a hammer crimper for battery cables?

Sometimes, but a hammer crimper is less controlled and less repeatable than a properly matched hydraulic or professional crimping system. For high-current lithium battery systems, especially systems with large inverters or alternator charging, a matched crimping tool and lug system is usually preferred.

Q: Can I solder battery cable lugs instead of crimping?

Solder is not usually recommended as the primary method for large mobile battery cables. Solder can wick into the strands and create a stiff stress point that is more vulnerable to vibration. A manufacturer-approved crimp is generally the better default for RV and marine battery cables.

Q: How do I know if a battery lug crimp is good?

A good battery lug crimp should have proper cable insertion, no cracked barrel, no sharp wings, no loose strands, a successful tug test, low voltage drop, and no abnormal heating under load.

Q: Why does a bad battery cable crimp get hot?

A bad crimp can leave resistance in the connection. When high current passes through that resistance, it creates heat. The higher the current, the more serious the heat problem can become.

Q: Are pre-crimped battery cables okay?

Yes, pre-crimped battery cables can be a good option if they are made with the correct cable gauge, lug type, stud size, crimp method, and insulation protection for the system. However, you'll still need to inspect and install them correctly.

Q: Can I hire a professional to crimp my battery cables?

Yes. Many RV technicians, marine electricians, solar installers, battery shops, and cable suppliers can make custom battery cables. For a one-time high-current RV or marine installation, this may be more cost-effective and reliable than buying crimping tools you may only use once.
