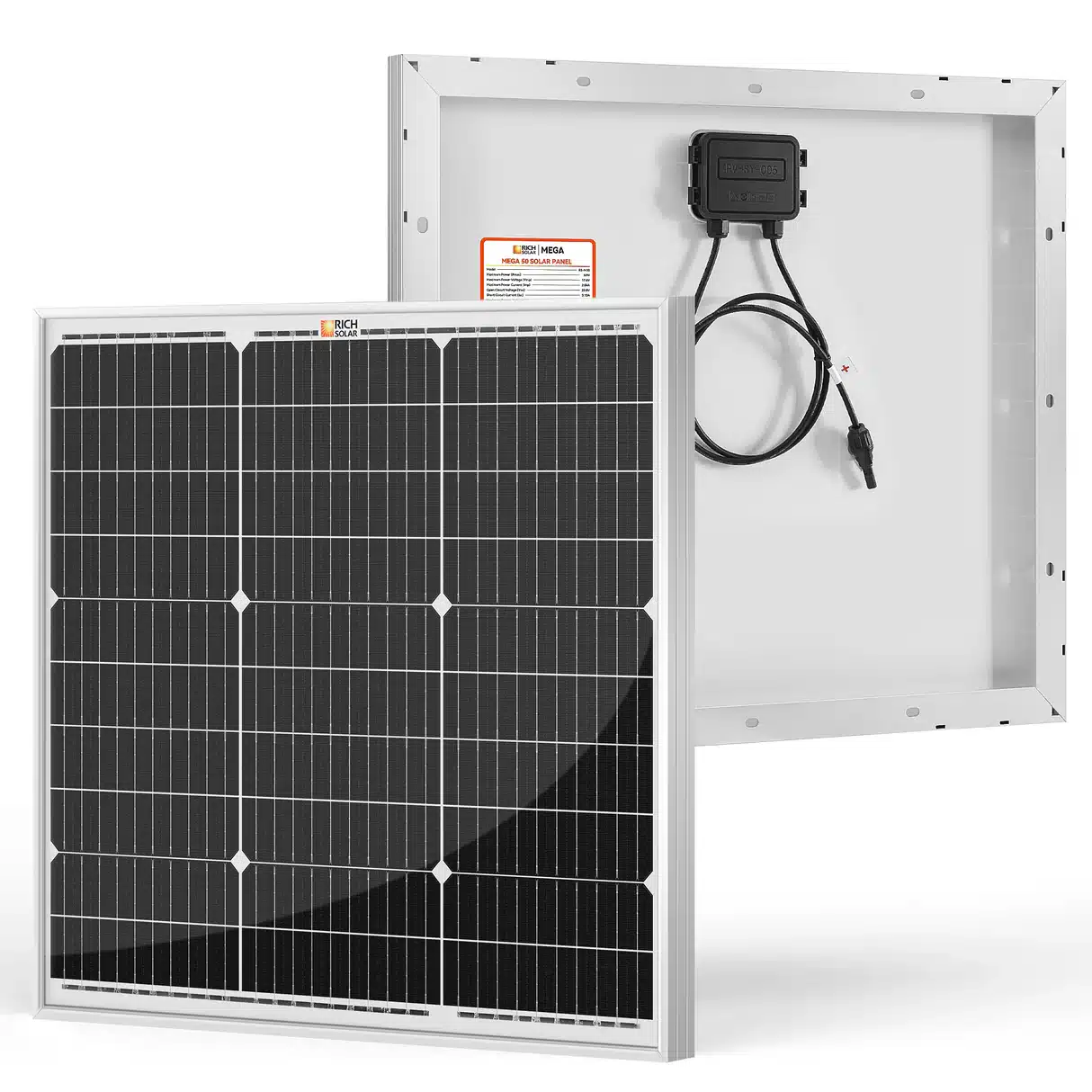

Rich Solar MEGA 50 | 50 Watt Solar Panel

Rich Solar MEGA 50 | 50 Watt Solar Panel

(On orders over $50)

Original price was: $69.99.Current price is: $55.99.

-

RS-M50

The Rich Solar MEGA 50 | 50 Watt Solar Panel is a compact 12V off-grid solar panel ideal for boats, vans, trailers.

Resources

Need Help?

Ask a technical specialist now at 855.292.2831

You Might Also Like

Product Description

Rich Solar MEGA 50 | 50 Watt Solar Panel
Rich Solar MEGA 50 | 50 Watt Solar Panel
Rich Solar MEGA 50 | 50 Watt Solar Panel
Rich Solar MEGA 50 | 50 Watt Solar Panel
  • 12V off-grid solar panel
  • 0~+5W guaranteed positive power output
  • IP67 rated
  • Built with strong tempered glass and an aluminum frame
  • Certified to withstand challenging environmental conditions

Installation

  • Easy installation and handling for various applications.
  • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
  • Compatible with on-grid and off-grid inverters.

Built-in Components

  • Panel Leads (Pair): 12AWG 2FT

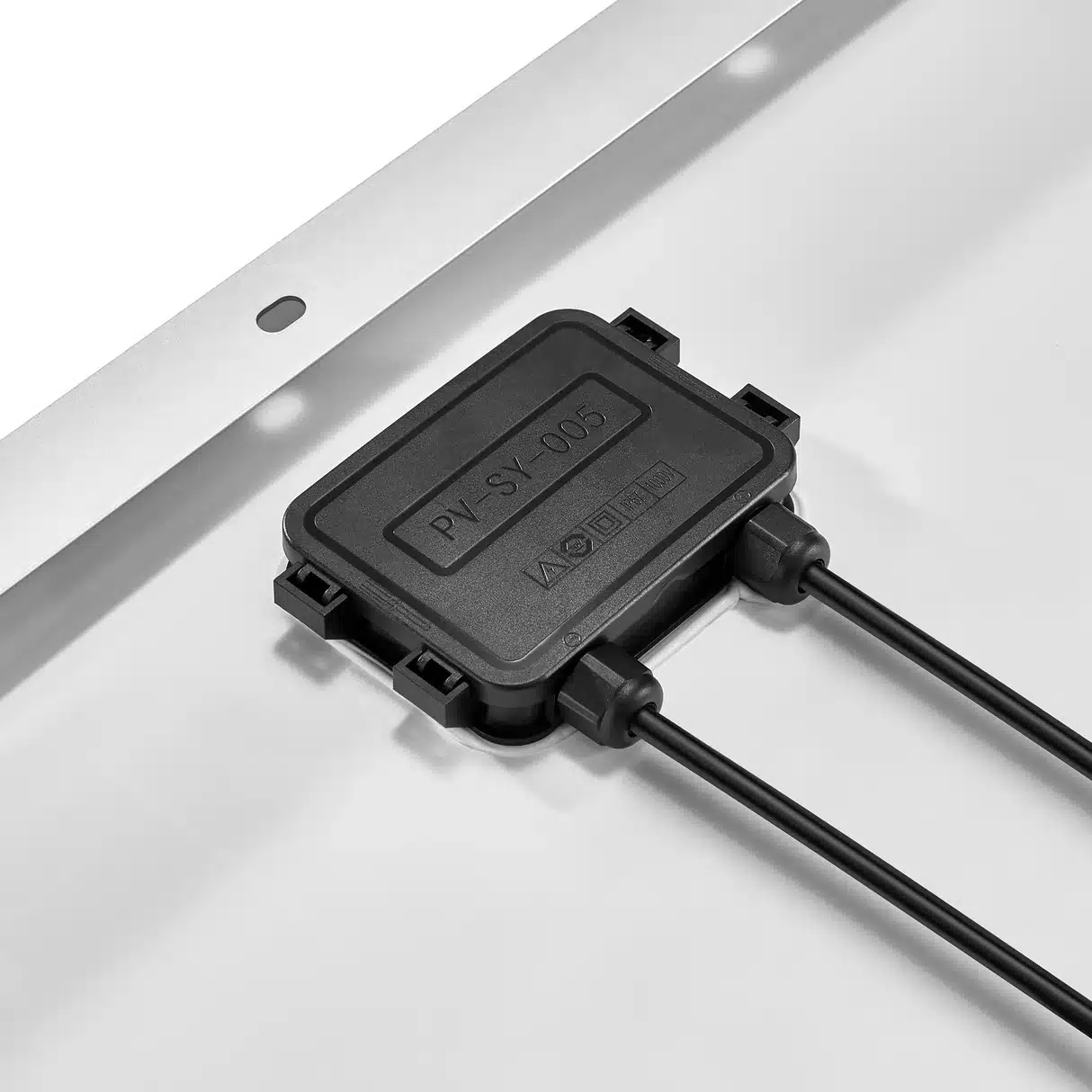

  • IP67-rated waterproof junction box

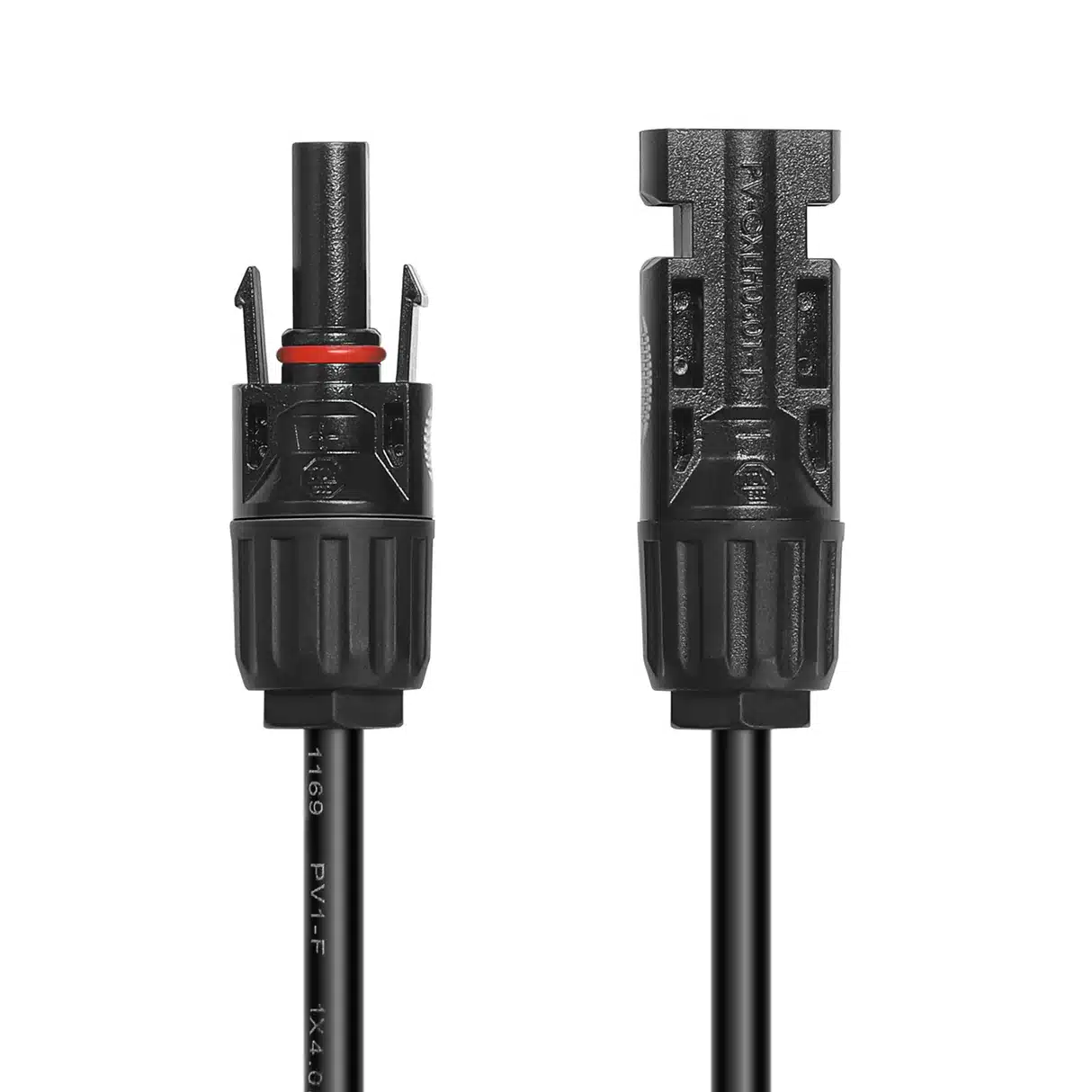

  • IP67-rated waterproof solar connectors

Features

Features

  • Panel Cable Length: ≈ 23 in
  • Material: Tempered Glass, Aluminum, Monocrystalline Silicon

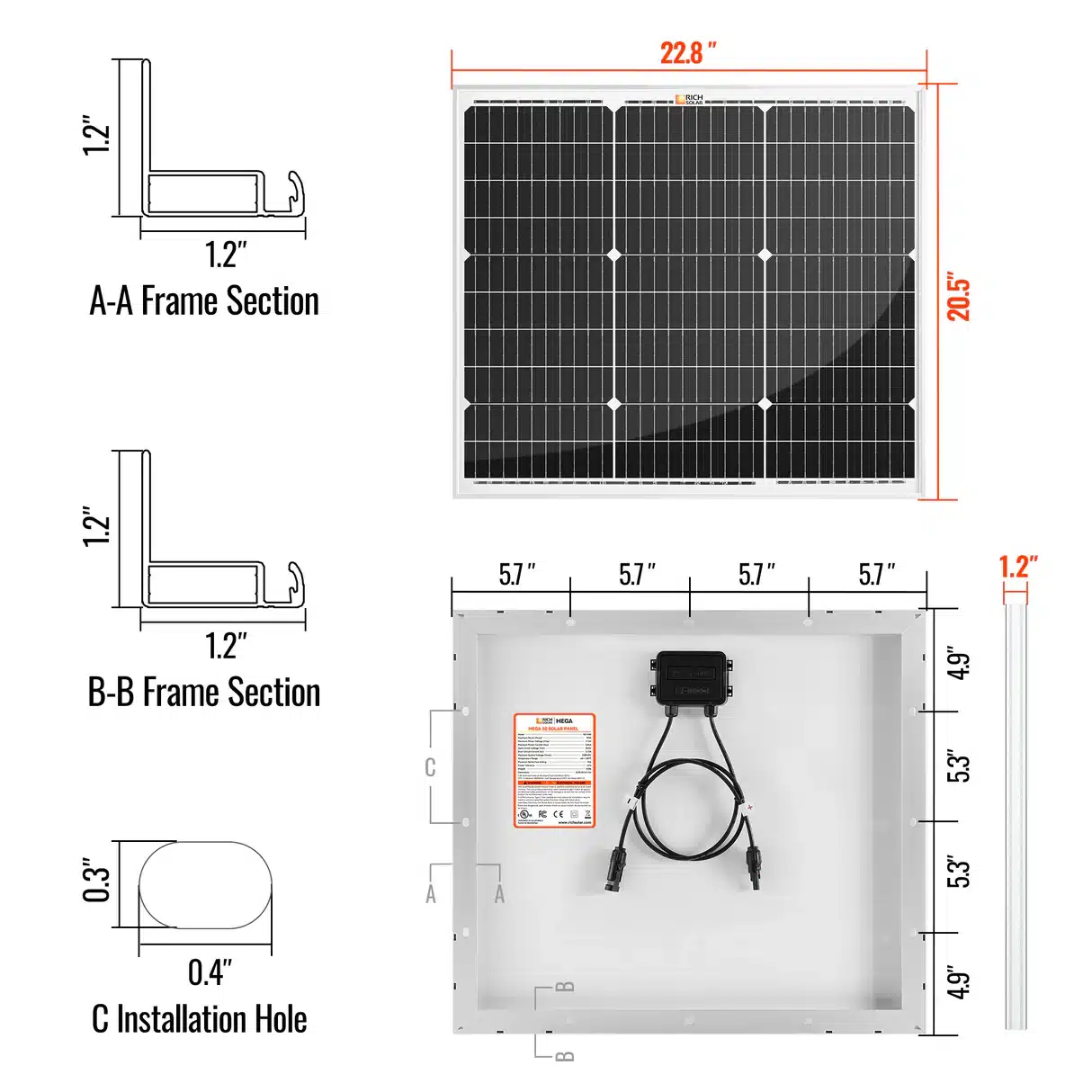

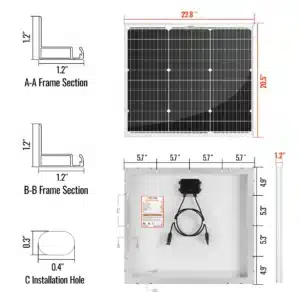

  • Dimensions: 22.8×20.5×1.2in
  • Weight: 8.0 lb
  • Maximum Power (PMAX): 50W
  • Maximum Power Voltage (VMP): 17.6V
  • Maximum Power Current (IMP): 2.84A
  • Open Circuit Voltage (VOC): 20.8V
  • Short Circuit Current (ISC): 3.13A
  • Maximum System Voltage (VMAX): 1000VDC

Documentation

Misc_Documents
Download product documentation for the Rich Solar MEGA 50 | 50 Watt Solar Panel, including Product Manuals, Cutsheets, Data Sheets, Quick Install Guides, Firmware Updates, Configurations, and more.
Rich Solar MEGA 50 | 50 Watt Solar Panel Data Sheet

Document


Technical Support

Have questions about whether the Rich Solar MEGA 50 | 50 Watt Solar Panel is suitable for your power system? Battle Born Batteries’ Technical Sales Specialists are here to provide system consultations and support, answer questions, help you place an order, and more.
